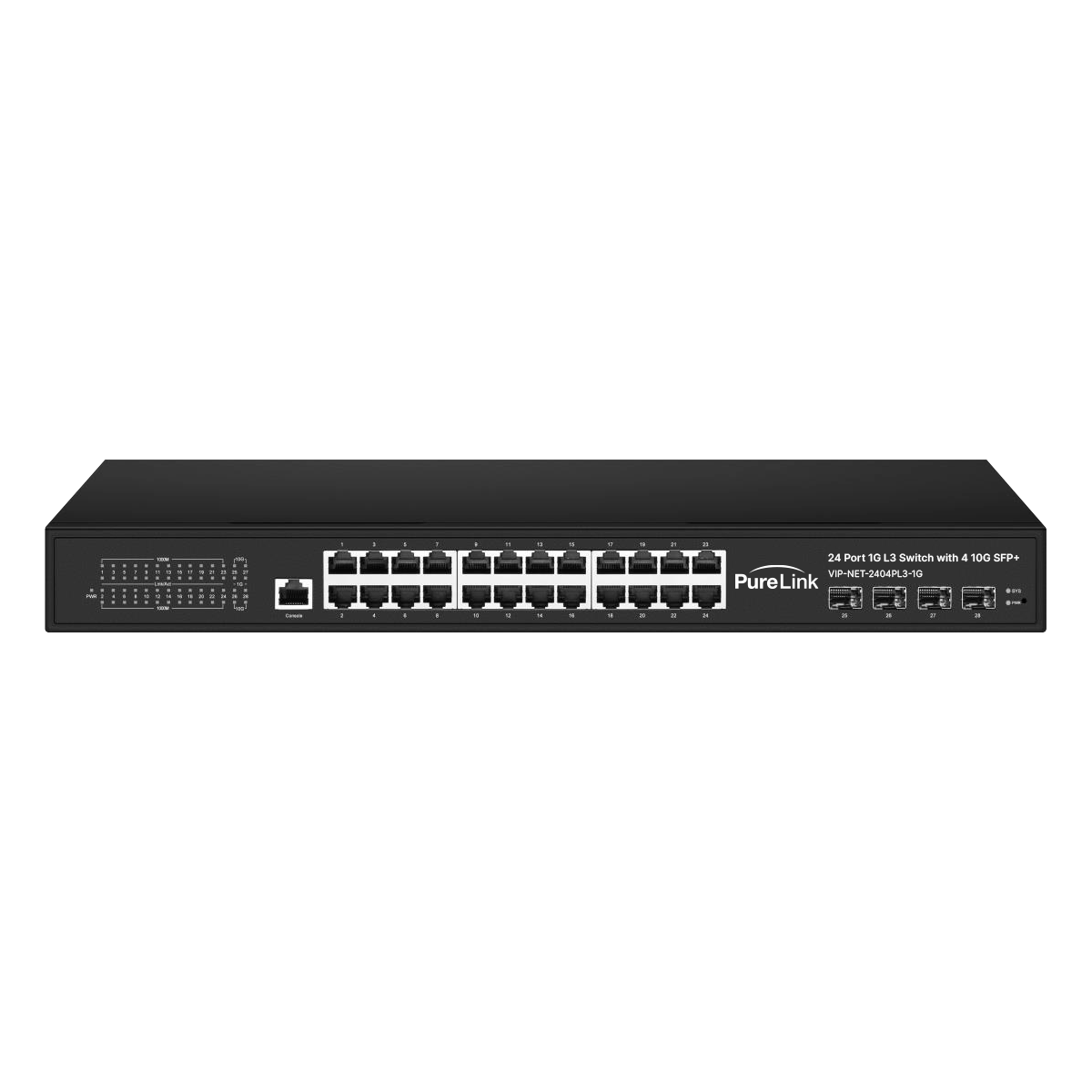

24 Port 1G L3 Switch with 4 10G SFP+
SKU: VIP-NET-2404PL3-1G- Purpose-designed for AV over IP applications; ready for use out of the box
- 24 1G Ports
- 4 10GbE SFP+ interlinks with LACP
- IGMP Snooping v1, v2, v3, querier, filter
- QoS
The VIP-NET-2404PL3-1G is a next-generation L3 managed switch purposed-designed and ready to go for AV over IP applications. The VIP-NET-2404PL3-1G offers a full suite of L3 features that deliver better performance and lower total cost of ownership. The VIP-NET-2404PL3-1G features (24) 1G ports and (4) 10GbE SFP ports with LACP, and TAA compliance. A perfect fit with any of our VIP products.
- Purpose-designed for AV over IP applications; ready for use out of the box
- 24 1G Ports
- 4 10GbE SFP+ interlinks with LACP
- IGMP Snooping v1, v2, v3, querier, filter
- QoS
- Jumbo Frame
- Rich API and Diagnostics
- SNMP v1, v2c, TRAP
- PoE+ 802.3af / at on all 24 RJ45 Ports
- PoE++ 802.3bt on RJ45 ports 1 and 2
- TAA compliant
General Specifications
| PoE Functions | IEEE802.3af/at/PoE++/BT |
| Packet Forwarding Capacity | 92.32Mpps |
| Input Voltage | 100~240V 50/60Hz Max |
| Operating Temperature | -4°F~131 (-20℃~55℃) |
| Operating Humidity | 5%–90% RH Non coagulation |
| Storage Temperature | -40°F~167°F (-40~75°C) |
| Storage Humidity | 5%–95% RH Non coagulation |
| Relative Humidity | 5%–95% (non-condensing) |
| Product Dimensions | 1.77in x 17.3in x11.4 in (45mm x 440mm x 290mm) |
| Product Weight | 7.7lbs (3.5kg) |
Warranty
| Warranty | Parts & Labor - 3 Years Limited |
