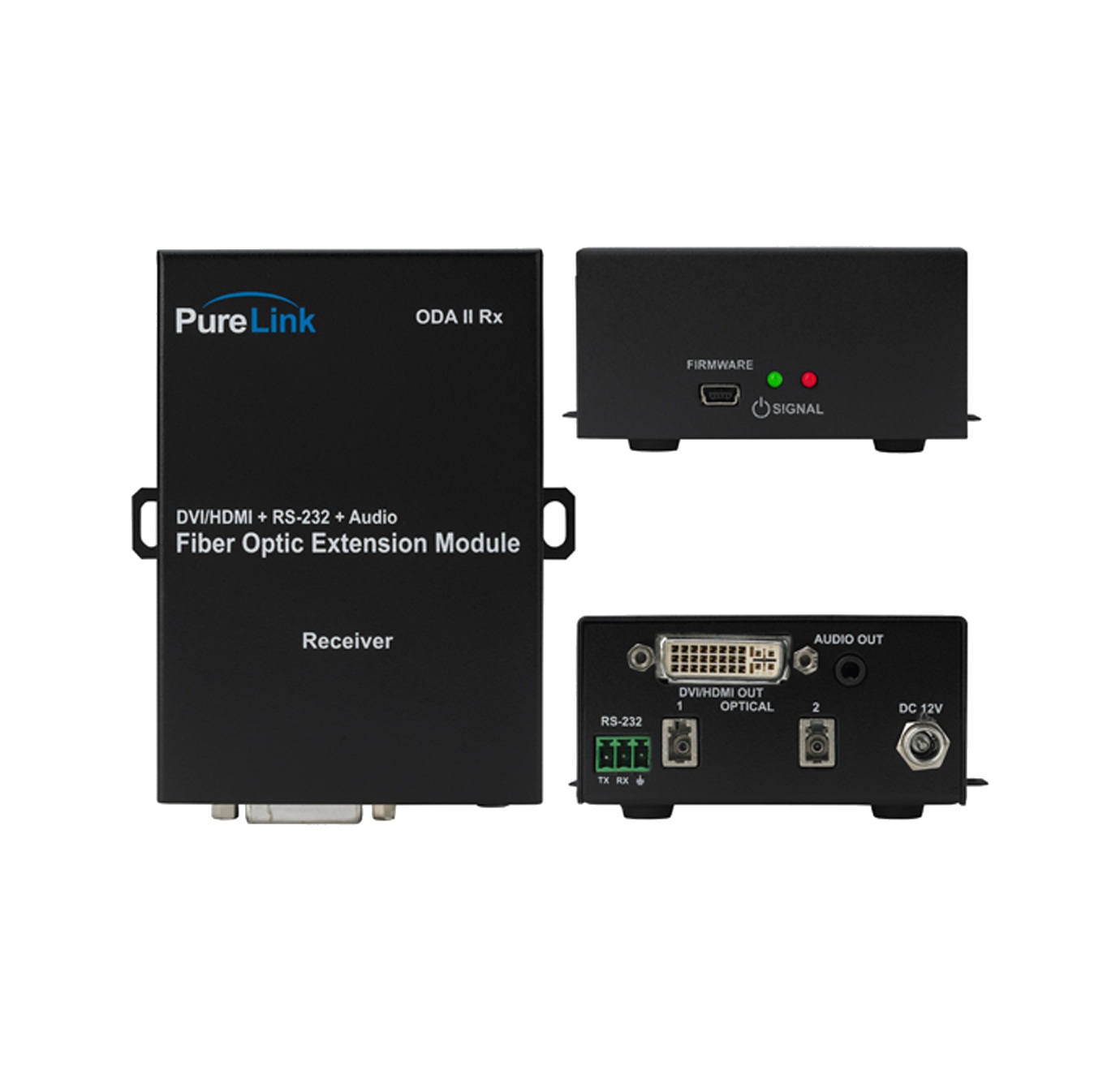

2LC Fiber to DVI Extender – Receiver
SKU: ODA II Rx- 2LC Fiber to DVI + Audio, RS-232 receiver
- Supports resolutions up to 1080p@60Hz
- Supports cable distances up to 2,000m
- HDCP compliant
- Signal amplification and noise cancellation technology
The HDTools™ ODA II Rx supports long-distance extension of DVI, 3.5mm stereo audio, and RS232 control signals over a two-strand fiber optic cable. The ODA II Rx supports both multimode and singlemode fiber, offering an added layer of flexibility for integration in a wide range of applications.
- 2LC Fiber to DVI + Audio, RS-232 receiver
- Supports resolutions up to 1080p@60Hz
- Supports cable distances up to 2,000m
- HDCP compliant
- Signal amplification and noise cancellation technology
- Auto-EDID management
Hardware
| Input Signal Type(s) | (2) Female LC connectors |
| Output Signal Type(s) | (1) Single Link Female DVI-D; (1) 3.5mm Mini Jack Stereo Audio |
Performance
| Supported Distance | up to 6,600 ft. via singlemode fiber; up to 1,650 ft. via multimode fiber |
| Supported Resolutions | up to 1080p@60Hz |
| Video Bandwidth | 1.65 Gbps per color |
| Compliance | DVI 1.0, HDMI 1.3, HDCP Supported |
| RS-232 | (1) RS-232 [3-pin phoenix] |
| Power Consumption | 7 watts |
| Power Supply | 12VDC, 3A, 13 watts(max) |
| Operating Temperature | 32° ~ 117° F (0° to 47° C) |
| Storage Temperature | - 40° ~ 158° F (-40° to 70° C) |
| Relative Humidity | 0 ~ 90% non-condensing |
| MTBF | 50,000 hours |
| Rack Mounting Option | - |
Enclosure
| Rack Mounting Option | - |
| Product Dimensions | 4.3” (W) x 3.1” (D) x 1.6” (H) |
Warranty
| Warranty | Limited Warranty (3-Years) |
