4K60 1×4 HDBaseT Distribution System
SKU: HT-140U- Distribute 4K60 4:4:4 HDR signals
- 120 meter (390ft) extension @ 4K60
- 150 meter (490ft) extension @ 1080P60
- Receivers powered via Transmitter (PoC)
- 32 Selectable EDID tables
The HT-140U 4K60 HDBaseT distribution system makes signal distribution simple and effective. Compatibility with virtually every video and audio format means hassle free installation and operation. Our EDID management system makes it easy to select from over 32 EDID tables, alleviating issues of handshaking in all applications.
**To be used with HT-140U-Rx sold separately (Link)**
- Distribute 4K60 4:4:4 HDR signals
- 120 meter (390ft) extension @ 4K60
- 150 meter (490ft) extension @ 1080P60
- Receivers powered via Transmitter (PoC)
- 32 Selectable EDID tables
- IR and RS232 extension
- Diagnostic LEDs on Transmitter and Receivers

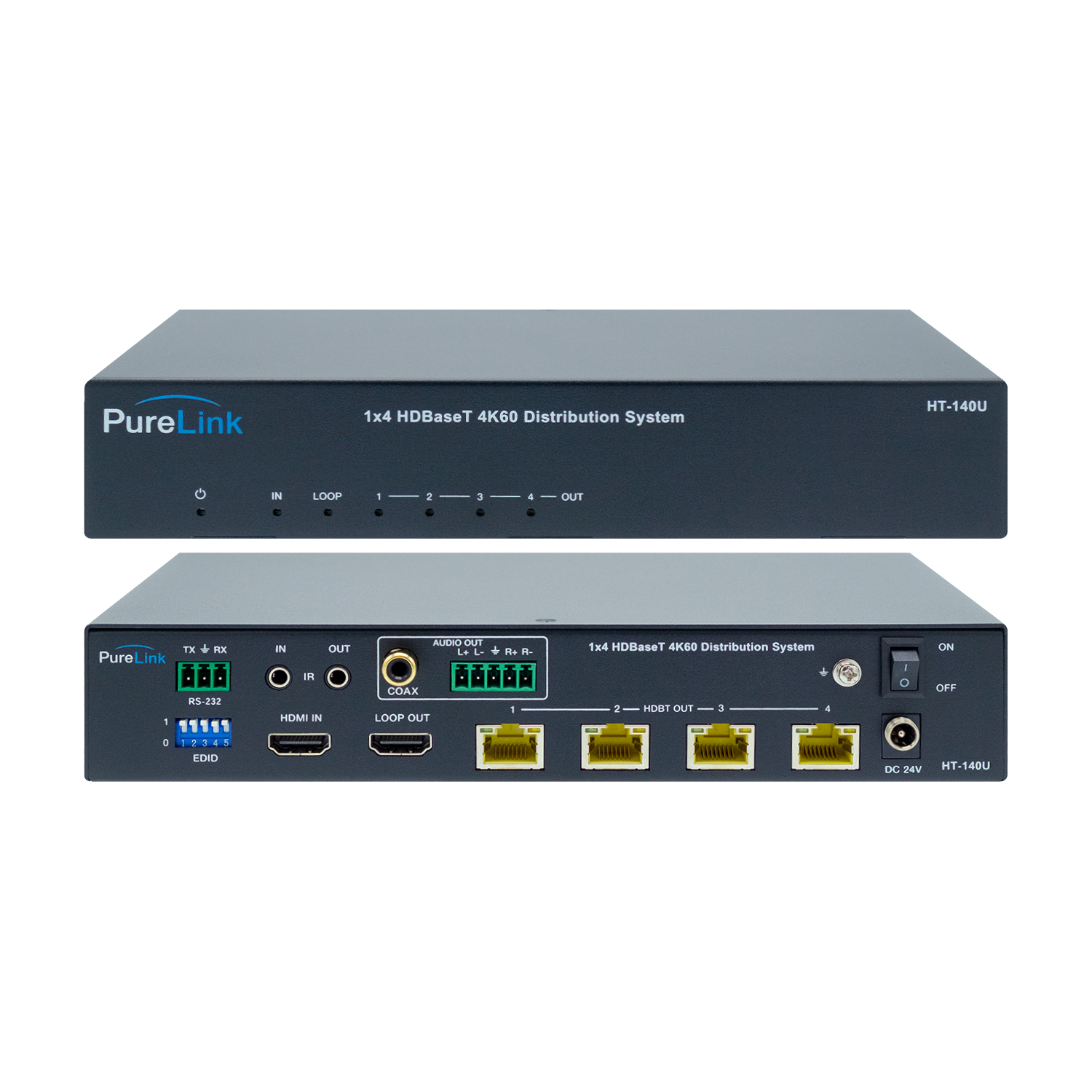

Connections.
| Inputs | 1×HDMI Type A (19-pin female) |
| Outputs | 1×HDMI Type A (19-pin female), 4x HDBaseT OUT [RJ45] |
| Control Ports | 1×RS-232 (3-pin phoenix connector), 1x EDID DIP switch [5-pin], 1x IR IN [3.5mm Stereo Mini-jack], 1x IR OUT [3.5mm Stereo Mini-jack] |
| Audio Output Type(s) | 1x Coaxial Audio OUT, [RCA] 1x L/R Audio OUT [5-pin phoenix connector] |
Performance
| Supported Distance | up to 120m (390ft) 4K2K@60, up to 1080p60 150m (490ft) |
| Supported Resolutions | up to 4K2K@60Hz (4:4:4) |
| Supported Audio Formats | PCM2.0, PCM 2.0CH, Dolby Digital / Plus, DTS 2.0/5.1 |
| HDCP Compliance | 1.x & 2.2 |
| Video Bandwidth | 18 Gbps |
| HDR Support | HDR, HDR10+, HLG, & Dolby Vision |
| Color Space | RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
| Color Depth | 8-bit,10-bit,12-bit (1080p60), 8-bit (4K2K@60Hz & YUV 4:4:4), 8-bit, 10-bit, 12-bit (4K2K@60Hz, YCbCr 4:2:2/4:2:0) |
| Supported HDMI Audio Formats | LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X |
| ESD Protection | ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Main Power | Captive 24VDC [TX], 100-240V 50/60Hz UL power adapter included, 35W max draw PoC from TX to RX |
| Power Consumption | 35W |
| Power Supply | 100-240VAC 50/60Hz |
| Operating Temperature | 32° ~ 104° F (0° to 40° C) |
| Storage Temperature | -4° ~ 140° F (-20° to 60 C) |
| Relative Humidity | 20 ~ 90% non-condensing |
| HDMI/DP/VGA VERSION | HDMI 2.0b |
| Diagnostics | LED: Power [TX/RX], HDMI In [TX], HDMI Loop [TX], HDBaseT outputs [TX], HDBaseT in [RX] |
Enclosure
| Product Dimensions | TX: 8.7 x 5.12 x 1.57 in. (220 x 130 x 40 mm), RX: 5.51 x 2.56 x 0.71 in. (140 x 65 x 18 mm) |
| Product Weight | TX: 1.88 lbs (853g), RX: 0.54 lbs (246g) |
Warranty
| Warranty | Limited Warranty (3-Years) |
