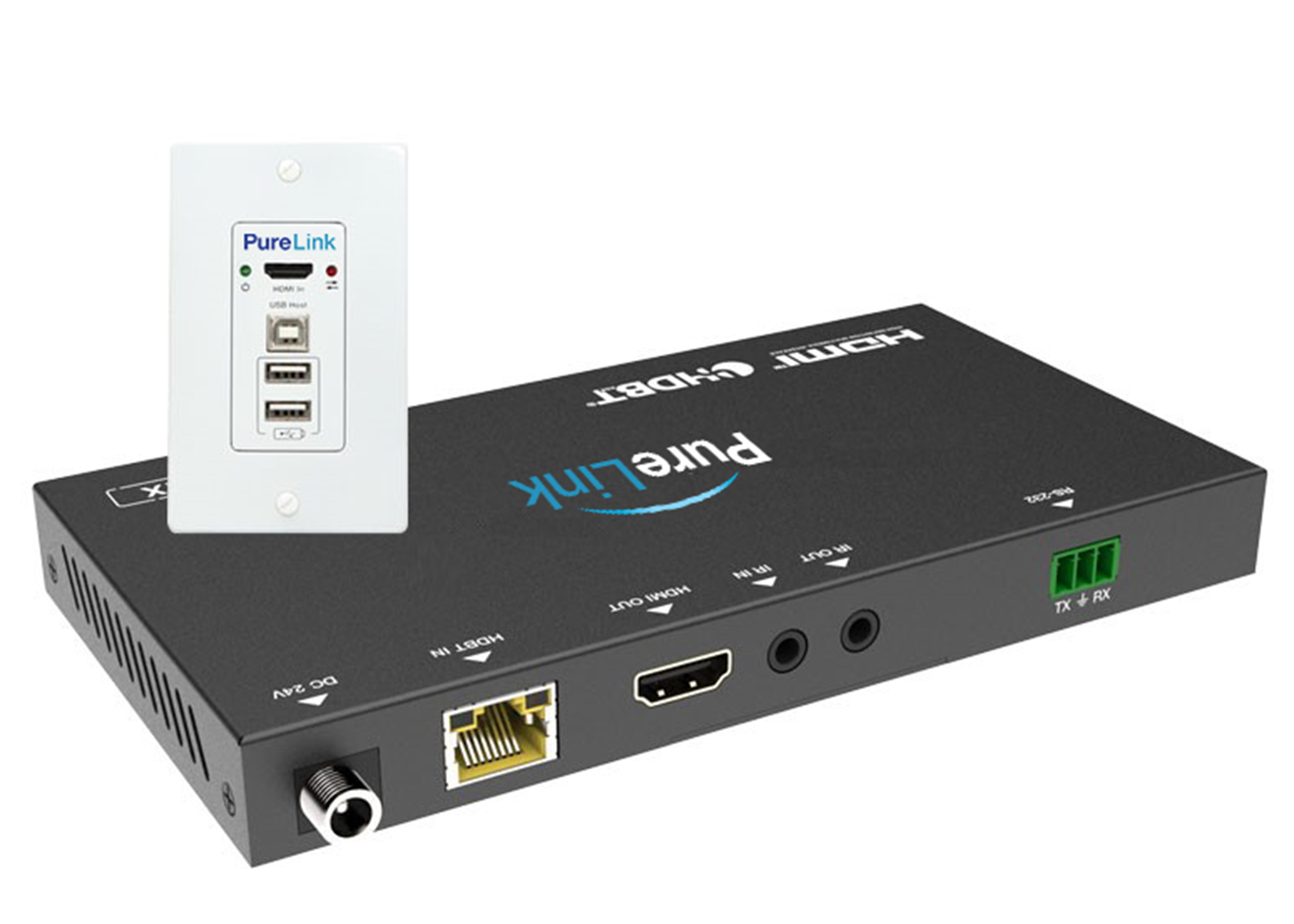

4K and USB 2.0 Wall Plate Extender Switching System
SKU: HW-100- HDMI and USB inputs on a single-gang wall plate
- HDBaseT 2.0
- Extends 4K60 (4:2:0) and 4K30 4:4:4 up to 130ft (40 meters)
- Extends 1080p 4:4:4 up to 230ft (70 meters)
- USB 1.1 and 2.0 peripherals including touchscreen LCDs
The HW-100 HDBaseT extender system provides up to 130 feet of 4K60 (4:2:0) or 4K30 4:4:4 and USB 1.1/2.0. The HW-100 can also extend 1080P60 4:4:4 up to 230 feet (70 meters). There are two USB-A ports on the transmitter that provide charging only functionality. The wall plate transmitter is powered by the receiver (PoC).
- HDMI and USB inputs on a single-gang wall plate
- HDBaseT 2.0
- Extends 4K60 (4:2:0) and 4K30 4:4:4 up to 130ft (40 meters)
- Extends 1080p 4:4:4 up to 230ft (70 meters)
- USB 1.1 and 2.0 peripherals including touchscreen LCDs
- USB-A Ports found on the transmitter provide charging power
- USB-A Ports found on the receiver support USB 1.1 and 2.0 devices
- Bidirectional RS-232 Extension
- HDCP 2.2 compliant
- Wall plate is powered from the receiver (PoC)
Connections.
| Inputs | HDMI In (x1) |
| Outputs | HDBaseT RJ45 x1 |
| Connector Type(s) | Tx: USB-A Charging Ports x2 |
Performance
| Supported Distance | 4K60 4:2:0 @ 130ft (40 meters) |
| Video Support | 4K2K@60Hz 4:2:0, 4K2K@30Hz 4:4:4 |
| Compliance | HDMI 2.0, HDCP 2.2 |
| ESD Protection | Human Body Model±8kV (Air Discharge) & ±4kV (Contact Discharge) |
| Main Power | RX: 100-240VAC 50/60Hz Tx: Powered (PoC) by Rx |
| Power Adapter | 24VDC CE/FCC/UL Power Adapter |
| Power Consumption | 7.5 Watts |
| Power Supply | 100-240VAC 50/60Hz |
| Operating Temperature | 0 to 40 C |
| Storage Temperature | -20 to -60 C |
| Relative Humidity | 20 to 90 % RH non condensing |
Enclosure
| Product Dimensions | Rx: 2.56in x 3.48in x 0.79in |
| Product Weight | Rx: 0.36lbs |
| Product Dimensions | Tx: 4.13in x 3.61in x 1.57in |
| Product Weight | Tx: 0.47lbs |
Warranty
| Warranty | Limited Warranty (3-Years) |
