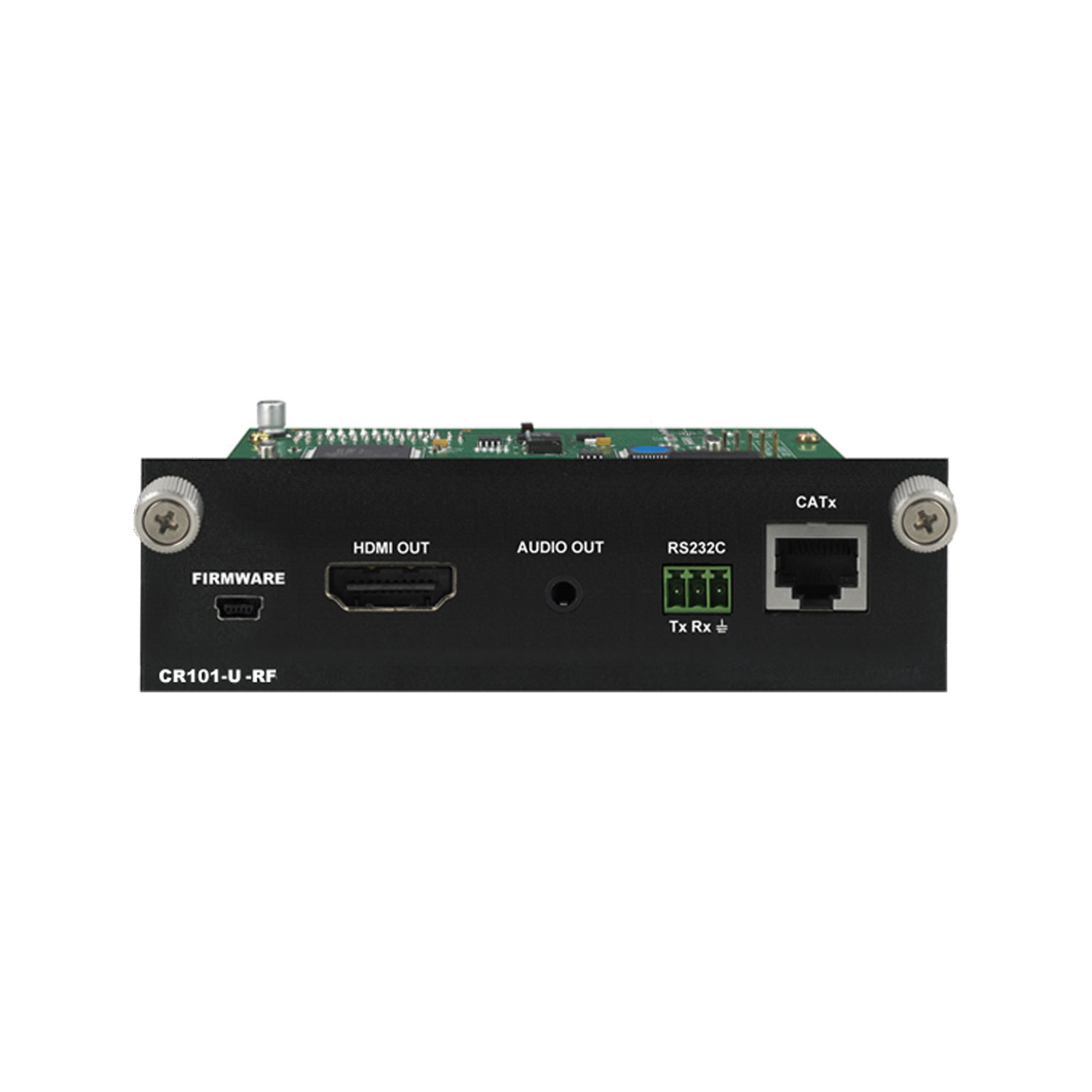

4K HDMI over HDBaseT Receiver W/ RS232
SKU: PM-CR101-U-RFThe PM-CR101-U provides a very easy and reliable solution for extending uncompressed HD Video, audio, and control signals up to 330 feet (100 meters) over a single CATx with IR and RS232. Enable the connection of HDBaseT source to HDMI display with female 3.5mm audio out jack.
Purelink is proud to announce the new single CAT5 (HDBaseT) extension system called PM-CT101-U and PM-CR101-U, a part of new PM series extender. PM-CT101-U and PM-CR101-U are a transmitter and receiver set for long distance transmission of video, audio, and control signal with POE. PM series CAT5e (HDBaseT) extension system is designed to transmit video (DVI or HDMI), audio (Embedded or analog stereo audio), control (RS232/422 and IR), and power over a single CAT5e cable for long distance up to 330ft. This CAT5e connection enables to minimize electrical noise and EMI free that is ideal for long distance extension of high definition HDMI/DVI video signal, HDMI embedded audio or 3.5mm stereo analog audio, and control signal with POE.
| Input Signal Type(s) | HDBaseT0,1,2,3+/- |
| Output Signal Type(s) | DVI / HDMI (TMDS), 3.5mm stereo audio |
| Supported Distance | 1920 x 1200 @ 60Hz or at 1080p, Ultra HD 4K : 330 ft (100m) |
| Supported Resolutions | up to 4K@30Hz (4:4:4), 1080p@60Hz |
| Data Transfer Rate | 3.4 Gbps/ch, Total 10.2 Gbps Max |
| Compliance | DVI 1.0 , HDMI 1.4b, HDBaseT |
| HDCP Compliance | HDCP 2.0 |
| Power Consumption | 10Watts Max |
| Power Supply | DC +12v |
| Connector Type(s) |
DVI 29P/HDMI 19P Female (x 1) 3.5mm Stereo Jack (x 1) RJ-45 Jack 3P /3.5MM Terminal Block (for Power) 3P /3.5MM Terminal Block (for RS-232) |
| Product Dimensions | 113mm(w) x 73mm(d) x 29mm(h) |
| Product Weight | 0.5 lbs (0.27 Kg) |
| Warranty | Limited Warranty (3-Years) |
