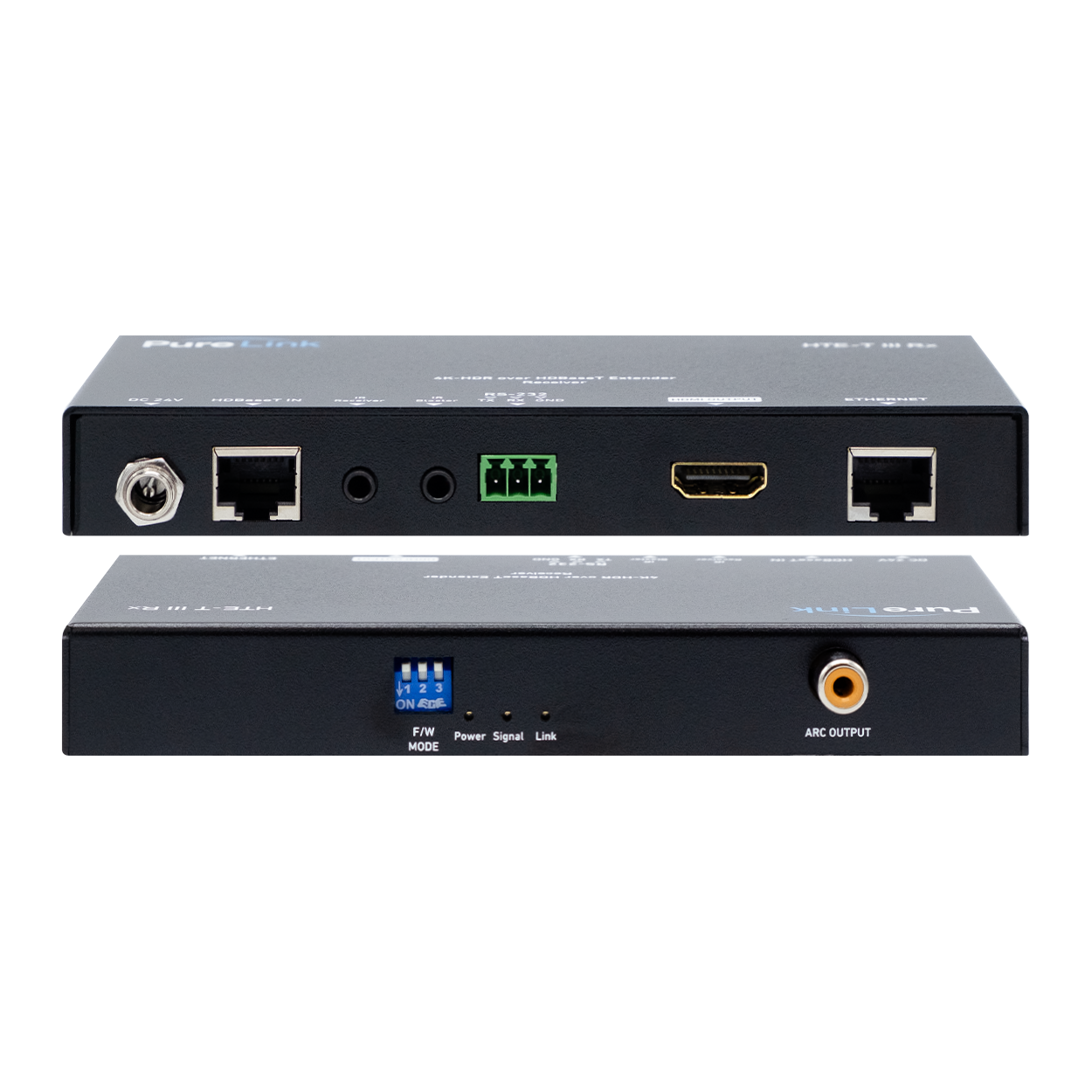

4K-HDR over HDBaseT Extension System – TAA Compliant
SKU: HTE-T III TX/RX- HDMI 2.0a compliant
- 4K2K@60 4:4:4 8bits
- HDR 4K2K@60 4:2:0 10bits
- Extends HDMI signal up to 100m (330ft) from the HDMI source at Full HD 1080p 36-bit, 70m (230ft) at 4K2K@60 444 (4K-HDR Technology)
- PoC (Power over Cable) which can power both units from TX or RX side with power supply
The HTE-T III 4K-HDR HDMI Extender over Single Cat.X with HDBaseT, RS-232, Bi-directional IR, Ethernet, PoC & ARC boosts up your video/audio transmission distance to 100m (330ft) in HDTV 1080p with 36-bit color depth and 70m (230ft) at 4K-HDR. With the advanced design for the latest HDMI 2.0a technology, deep color video, DTS-HD or Dolby TrueHD audio, and HDCP 2.2 supports and compatibility are all further insured.
- HDMI 2.0a compliant
- 4K2K@60 4:4:4 8bits
- HDR 4K2K@60 4:2:0 10bits
- Extends HDMI signal up to 100m (330ft) from the HDMI source at Full HD 1080p 36-bit, 70m (230ft) at 4K2K@60 444 (4K-HDR Technology)
- PoC (Power over Cable) which can power both units from TX or RX side with power supply
- ARC on transmitter & receiver unit
- CEC support
- Auto equalization
- Pure unaltered uncompressed 7.1ch digital HDMI over Cat.5/5e/6 cable transmission
- DTS-HD Master Audio and Dolby TrueHD high bit rate audio support
- Full frequency IR signal from 20KHz to 60KHz
- Bi-directional IR path-through
- Integrated port for LAN/network device
- Full Duplex RS-232 control up to 115,200 bps through connector
- Wall mounting housing design for easy and robust installation
- Video latency less than 20 ms.
Hardware.
| Input Signal Type(s) | TX: 1x HDMI / 1x 3.5mm | RX: 1x RJ-45 / 1x 3.5mm |
| IN/OUT | TX: 1x RS-232 / 1x RJ-45 (Ethernet) | RX: 1x RS-232 / 1x RJ-45 (Ethernet) |
Performance.
| Video Support | HDR 4K2K@60 (4:2:0 10bits) / 4K2K@60 (4:4:4 8bits) |
| Supported Audio Formats | Surround sound [up to 7.1ch) or stereo digital audio |
| HDCP Compliance | Yes |
| Compliance | HDMI 2.0a |
| Video Bandwidth | Single-link 600MHz [18Gbps] |
| Equalization | Auto |
| HDMI OVER UTP | 1080p@60 100m (330ft) [CAT5e] |
| INPUT TMDS SIGNAL | 1.2 Volts [peak-to-peak] |
| PCB STACK-UP | 6-layer board [impedance control — differential 100Ω; single 50Ω] |
| IR PASS-THRU | Bi-directional |
| RS-232 | Yes |
| PoC SUPPORT | Yes |
| HDMI SOURCE CONTROL | Controllable via IR pass-through from RX to TX with IR extenders |
| Power Consumption | TX: 15 Watt [max] | RX: 15 Watt [max] |
| Power Supply | 24V 1A DC |
| Operating Temperature | 32° ~ 117° F (0° to 47° C) |
| Storage Temperature | - 40° ~ 158° F (-40° to 70° C) |
| Relative Humidity | 0 ~ 90% non-condensing |
| MTBF | 50,000 hours |
| Input DDC Signal | 5 Volts [peak-to-peak, TTL] |
| ROTARY CONTROL SWITCH | None |
| ESD Protection | Human body model — ±15kV [air-gap discharge] & ±8kV [contact discharge] |
Connections.
| Connector Type(s) | HDMI CONNECTOR: Type A [19-pin female] | MIN DIN CONNECTOR: DIN-9 | RJ-45 CONNECTOR: WE/SS 8P8C(Reverse Mode)</li><li>3.5MM CONNECTOR: TX - IR receiver / IR blaster RX - IR receiver / IR blaster |
Enclosure
| Enclosure Type | Metal enclosure |
| Product Dimensions | 153 x 73 x 21 mm [6 |
| Product Weight | TX: 160g[5.6 oz] | RX: 188g[6.6 oz] |
| Product Dimensions | 12.21 x 7.09 x 2.76 in. (310 x 180 x 70 mm) |
| Product Weight | 7.7 lbs (3.5 kg) |
Warranty
| Warranty | 5-Years |
