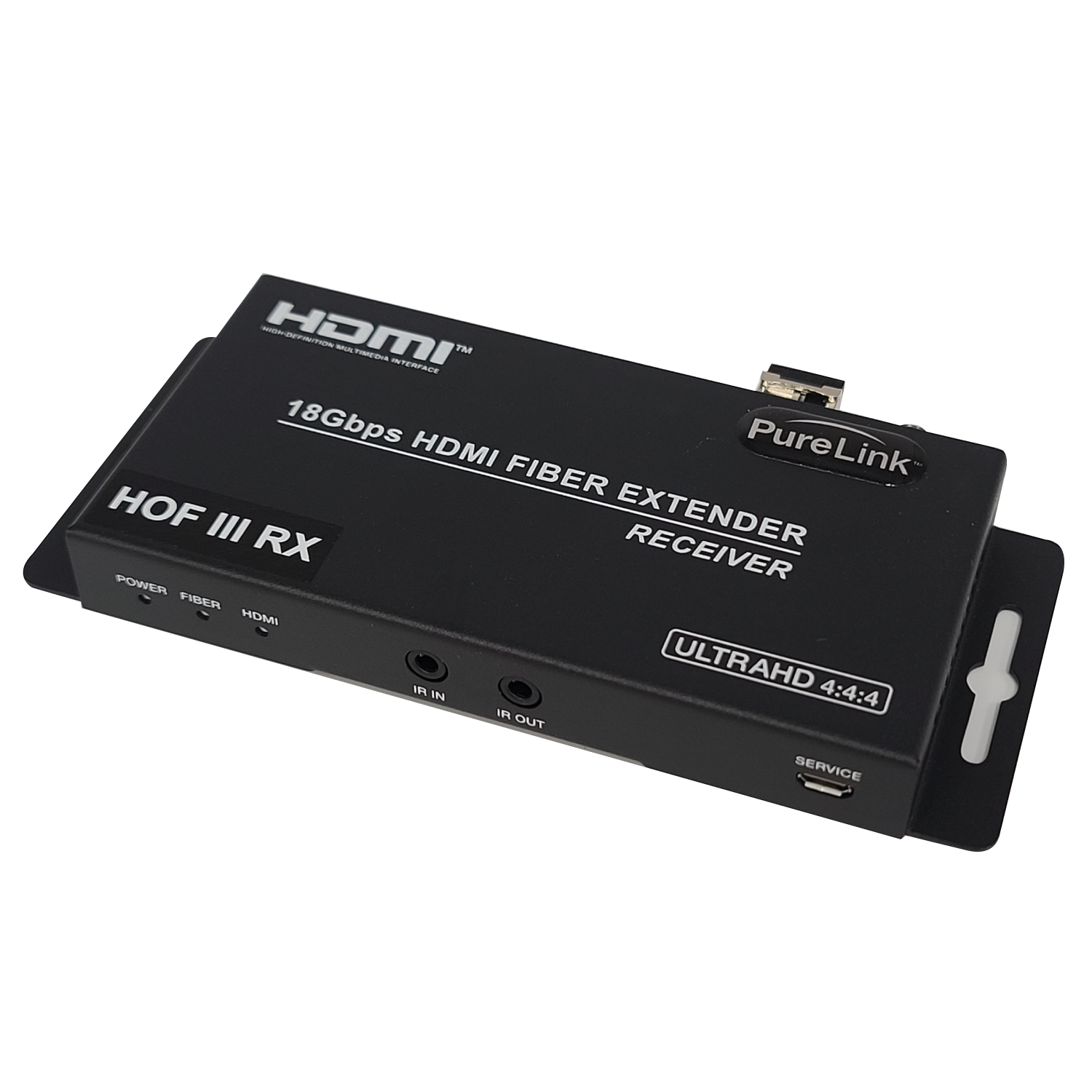

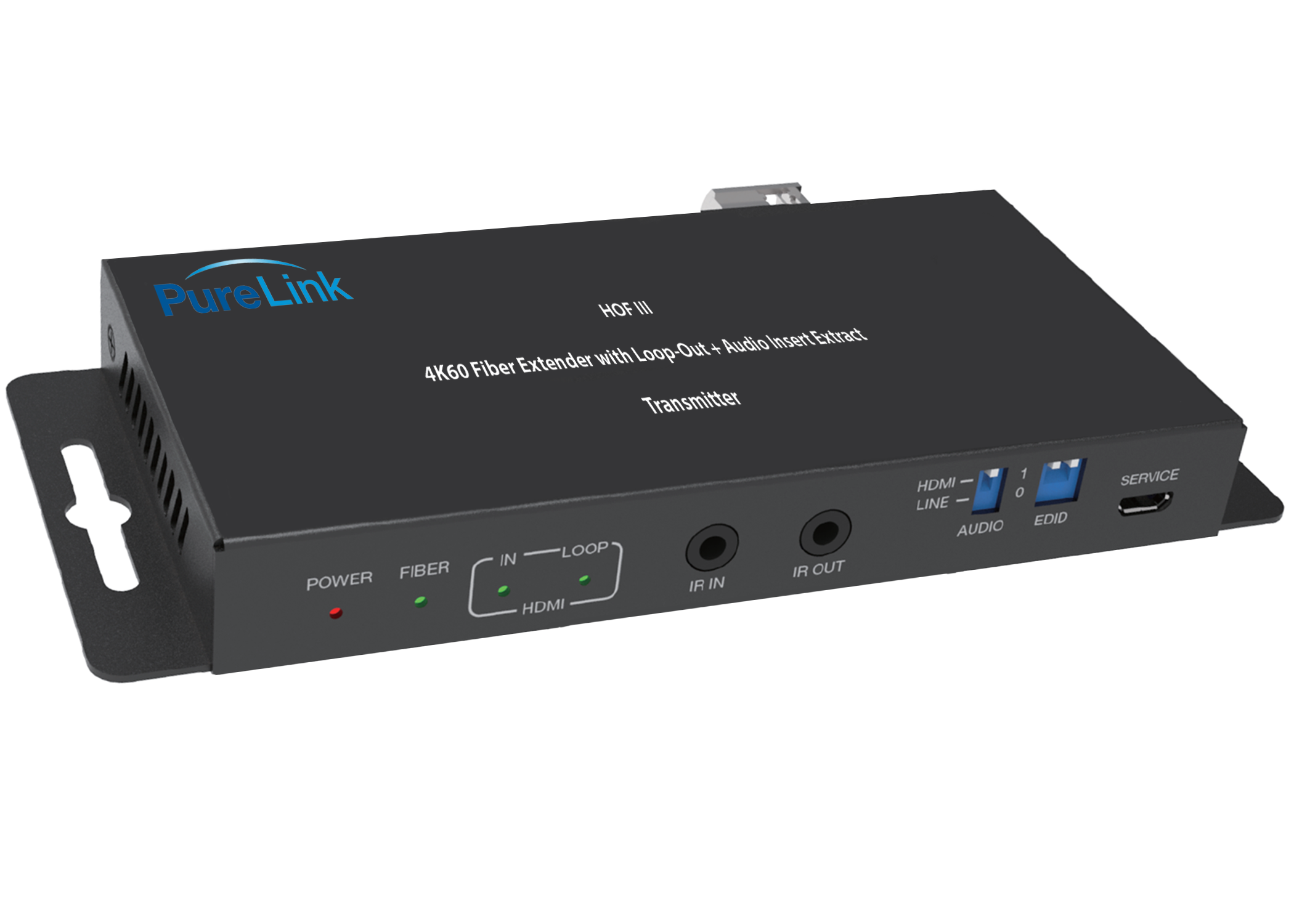

4K60 4:4:4 Fiber Extender w Loop Out and Audio Insert/Extract
SKU: HOF III Tx/Rx- Loop-Out (Tx), Audio Extract/Insert, Bi-Directional IR, RS-232, & EDID Management
- Distances up to 10km (~33,000ft) over single mode fiber and 300M (984ft) over multimode fiber
- 4K60 4:4:4 / 18Gbps / HDCP 2.2
- Features Dolby Digital/PLUS/EX/True HD, DTS/EX/96/24/High Res/HD Master Audio, & DSD
- 3D & HDR
The HOF III offers a powerful solution for long-distance distribution of 4K60 video, audio, and control signals over fiber. Ultra HD/4K, HDMI 2.0 (18G), RS-232, Bi-Directional IR, Loop-Out (Tx), Audio Extract/Insert, & EDID Management are all available on distances up to 10km (33,000ft) over single mode fiber and 300M (984ft) over multimode fiber.
HOF III is compatible with SFP+ 1LC Multi-Mode modules (not included), up to 300 meters.
- Loop-Out (Tx), Audio Extract/Insert, Bi-Directional IR, RS-232, & EDID Management
- Distances up to 10km (~33,000ft) over single mode fiber and 300M (984ft) over multimode fiber
- 4K60 4:4:4 / 18Gbps / HDCP 2.2
- Features Dolby Digital/PLUS/EX/True HD, DTS/EX/96/24/High Res/HD Master Audio, & DSD
- 3D & HDR
Connections.

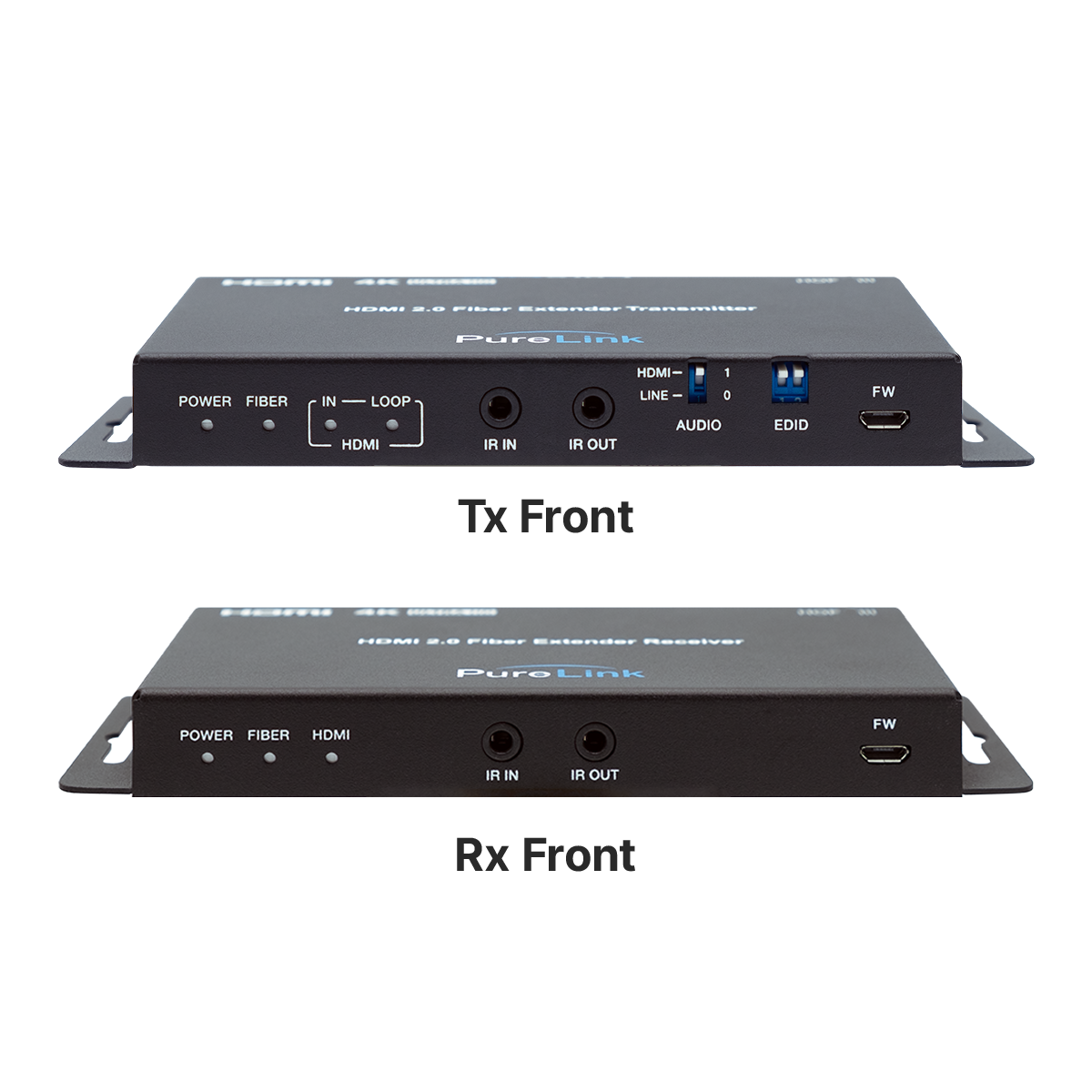

| Inputs | TX: 1 x HDMI IN [Type A 19-pin female] RX: 1x Optical Fiber IN [LC Female] |
| Outputs | TX: 1x HDMI OUT, Optical Fiber OUT RX: 1x HDMI Out [Type a 19-pin Female] |
| Control Ports | 2 x IR IN [3.5mm Stereo Mini-jack], 2x IR OUT [3.5mm Stereo Mini-jack], 1x RS-232 IN & OUT [3.81mm Phoenix connector] |
| Audio Input Type(s) | TX: 1 x LINE IN [3.5mm Stereo Mini-jack] |
| Audio Output Type(s) | RX: 1x Audio Out [3.5mm Stereo Mini-jack] |
Performance
| Supported Distance | up to 10km (~33,000ft) over single-mode fiber cable |
| Supported Resolutions | up to 4K2K@60 4:4:4 |
| Compliance | HDMI 2.0b, HDCP 2.2, & DVI 1.0 |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 |
| Color Depth | 8-bit 10-bit 12-bit, HDR |
| Supported HDMI Audio Formats | LPCM2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| RS-232 Baud Rate | 4800-115200bps |
| ESD Protection | ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Power Consumption | TX: 3.85W (Max), RX: 2.7W (Max) |
| Power Supply | Input: AC 100 - 240V 50/60Hz |
| Power Supply Output | Output: DC 5V/1A |
| Operating Temperature | 32° ~ 104°F (0° - 40°C) |
| Storage Temperature | -4° - 140°F (-20° ~ -60°C) |
| Relative Humidity | 20 ~ 90% non-condensing |
| HDMI/DP/VGA VERSION | HDMI 2.0b |
Enclosure
| Product Dimensions | TX/RX: 134mm x 68mm x 18mm |
| Product Weight | TX: 280g, RX: 278g |
Warranty
| Warranty | Limited Warranty (3-Years) |
