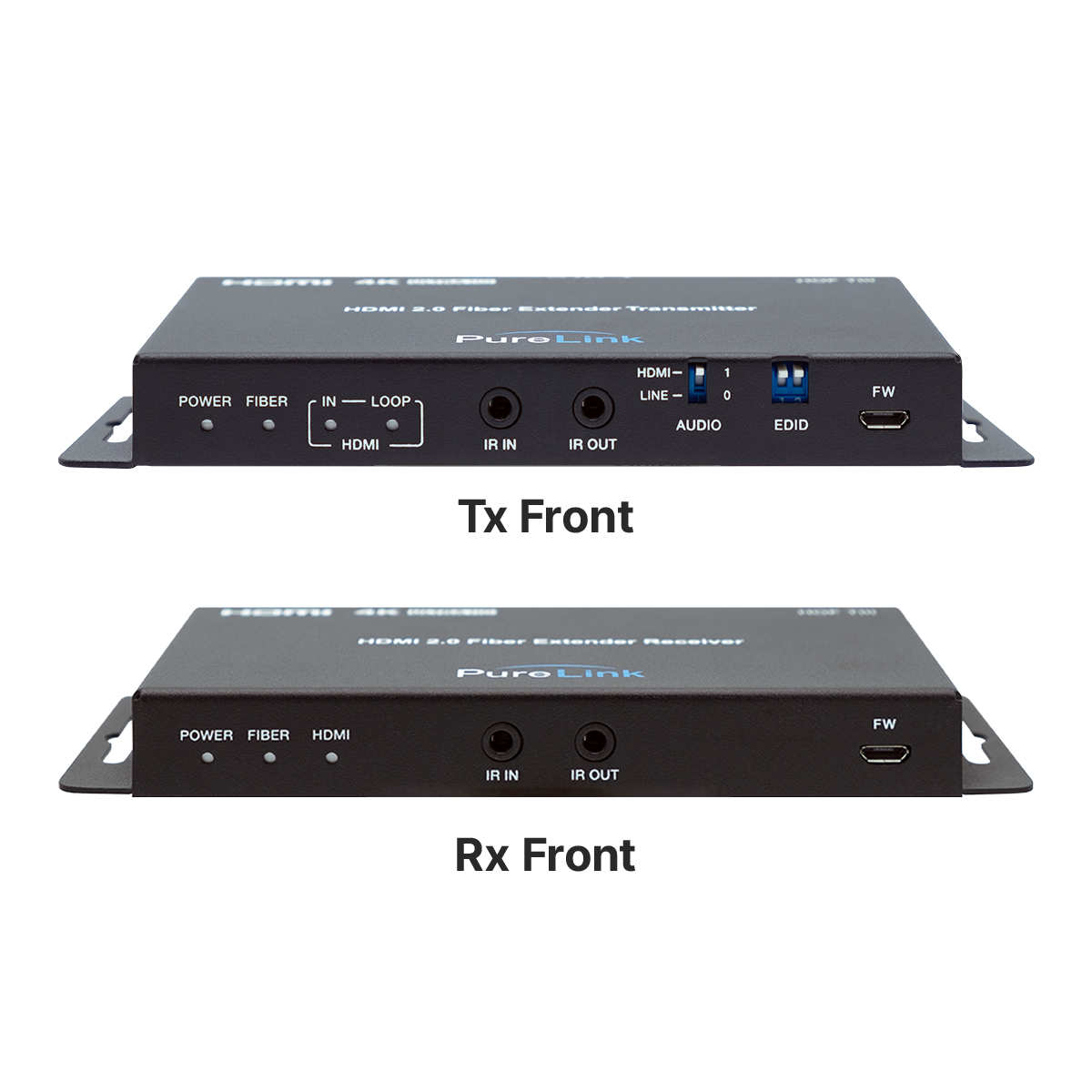

4K60 Fiber Extender w/Loop Out and Audio Embedding/De-embedding TAA
SKU: HOF TIII TX/RX- 4K60 4:4:4 UHD video, audio, and control signals up to 33,000ft (10km) over SFP+ 1LC Single Mode fiber (1 LC SFP+ modules included)
- High-res Audio | Dolby Digital/Plus/EX/True HD | DTS up to DTS-HD Master Audio™ | DSD and more
- HDMI 2.0 | HDCP 2.2 | HDR | 1080P 3D
- HDMI Loop Out on Transmitter
- Easy EDID Management
The HOF TIII is a powerful solution for extending 4K60 4:4:4 UHD video, high resolution audio, and control signals up to 33,000ft (10km) over SFP+ 1 LC fiber (SFP+ modules included). The HOF TIII features 18Gbps HDMI 2.0, HDCP 2.2, analog audio embedding/de-embedding and EDID Management. It is the perfect solution for extending high resolution video, audio and control over great distances.
HOF TIII is compatible with SFP+ 1LC Multi-Mode modules (not included), up to 300 meters.
- 4K60 4:4:4 UHD video, audio, and control signals up to 33,000ft (10km) over SFP+ 1LC Single Mode fiber (1 LC SFP+ modules included)
- High-res Audio | Dolby Digital/Plus/EX/True HD | DTS up to DTS-HD Master Audio™ | DSD and more
- HDMI 2.0 | HDCP 2.2 | HDR | 1080P 3D
- HDMI Loop Out on Transmitter
- Easy EDID Management
- HDMI 2.0 Loop Out on the TX allows for connecting to a local display
- 2 Ch Stereo Analog Audio Embedding / De-embedding
- Bi-directional IR and RS-232 control signals
- Diagnostic LEDs
Standards & Compliance
| Standards | HDMI 2.0 | HDCP 2.2 | DVI 1.0 |
| Compliance | Trade Agreements Act (TAA) |
Connections.
| Inputs (TX) | 1 x HDMI 2.0b<br> 1 x 2ch Stereo Analog Audio 3.5mm TRS <br> 1 x Bi-directional RS-232 3pin mini phoenix<br> 1 x IR In 3.5mm TRS |
| Inputs (RX) | 1 x SFP+ 1LC Fiber <br> 1 x Bi-directional RS-232 3pin mini phoenix<br> 1 x IR In 3.5mm TRS |
| Outputs (TX) | 1 x HDMI 2.0b Loop Out<br> 1 x SFP+ 1LC Fiber <br> 1 x IR Out 3.5mm TRS |
| Outputs (RX) | 1 x HDMI 2.0b <br> 1 x 2ch Stereo Analog Audio 3.5mm TRS<br> 1 x IR Out 3.5mm TRS |
Performance
| Supported Distance | Up to 33,000ft (10km) over single-mode fiber cable |
| Supported Resolutions | Up to Ultra HD 4K60 4:4:4 HDR |
| Supported Audio Formats | LPCM2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD<br> Master Audio, DSD |
| Video Bandwidth | 18 Gbps |
| Color Space | RGB | YCbCr 4:4:4 / 4:2:2 | YUV 4:2:0 |
| Color Depth | 8 bit, 10 bit, 12 bit | 3D | 4K HDR |
| RS-232 Baud Rate | 4800-115200bps |
| ESD Protection | ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Power Consumption | Tx: 3.85 W (Max) | Rx: 2.7 W (Max) |
| Power Supply | Input: AC 100 - 240V 50 / 60 | Output: DC 5V / 1A |
| Operating Temperature | 32° ~ 104°F (0° - 40°C) |
| Storage Temperature | -4° ~ 140°F (-20° ~ 60°C) |
| Relative Humidity | 20 ~ 90% non-condensing |
Enclosure
| Enclosure Type | Folder Power Coated Steel |
| Product Dimensions | 1in x 5.28in x2.68 in (18mm x 134mm x 68mm) |
| Product Weight | 0.62lbs (280g) |
| Shipping Dimensions | 2.5in x 12in x 8 in (63.5mm x 305mm x 203.2mm) |
| Shipping Weight | 2lbs (0.91kg) |
Warranty
| Warranty | Limited Warranty (3-Years) |
