4K60 DisplayPort and USB 2.0 Fiber Extender System

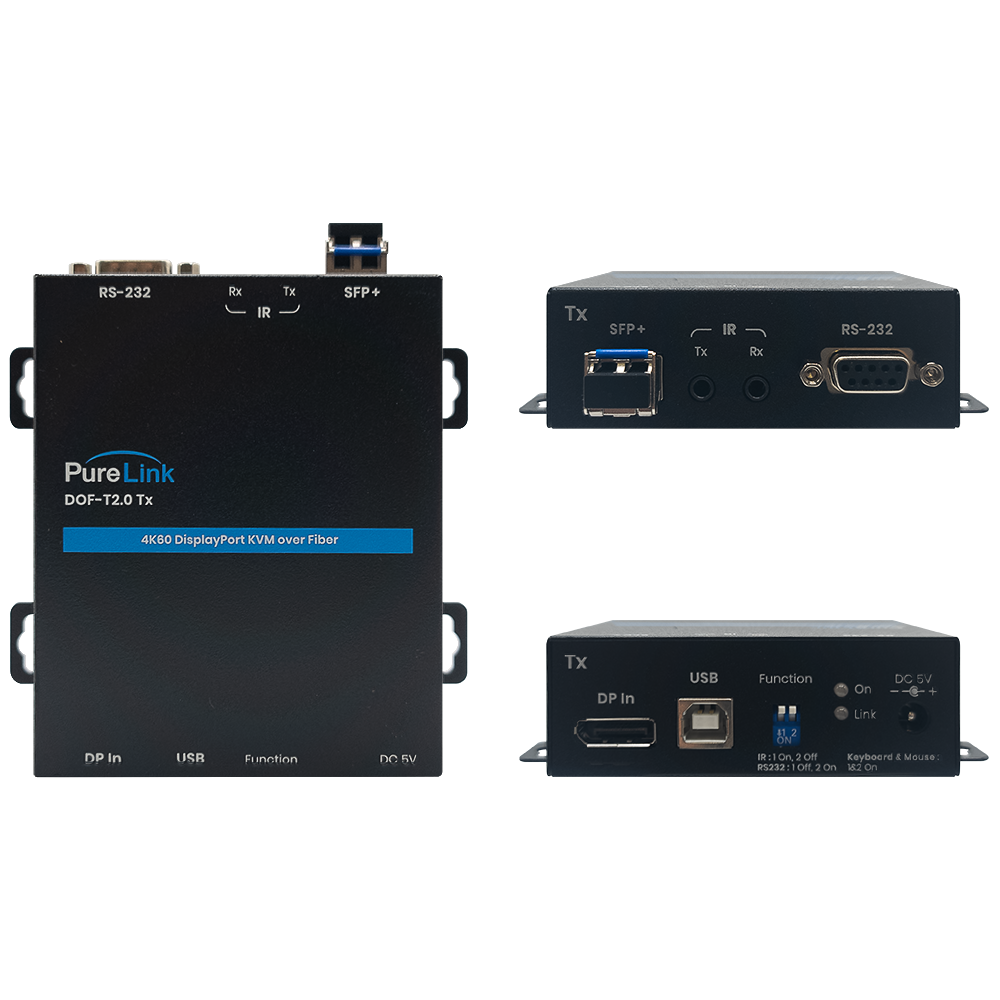

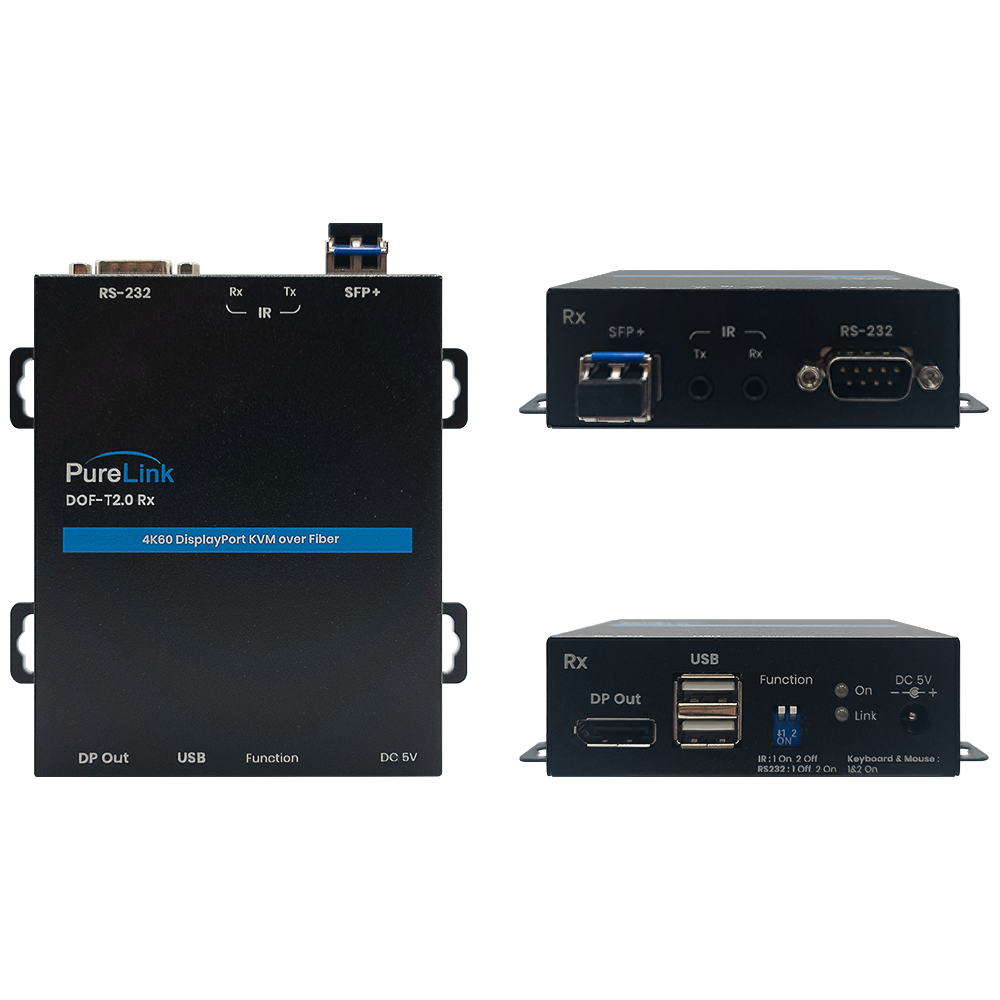

The DOF T2.0 Tx/Rx offers a powerful solution for long-distance distribution of DisplayPort 4K/60 video, audio, and control signals over fiber. Ultra HD/4K, HDMI 2.0 (18G), embedded audio, RS-232, and bi-directional IR are all supported over distances up to 3,300 ft. using PureLink’s TOTALWIRE LC-terminated fiber optic cables. The pure fiber connection provides protection from electromagnetic interference (EMI), delivering lossless transport for optimal signal quality.

• • TAA Compliant
  • DisplayPort resolutions up to 4K@60Hz 4:4:4 HDR
  • Supports distances up to 1.24 miles (2000 m.) over single-mode fiber
  • Real-Time Auto-EDID Management
  • 18Gbps bandwidth support
  • Supports LPCM 7.1 audio, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X formats
  • Bi-directional IR & RS-232 control
  • Supports USB keyboard mouse
