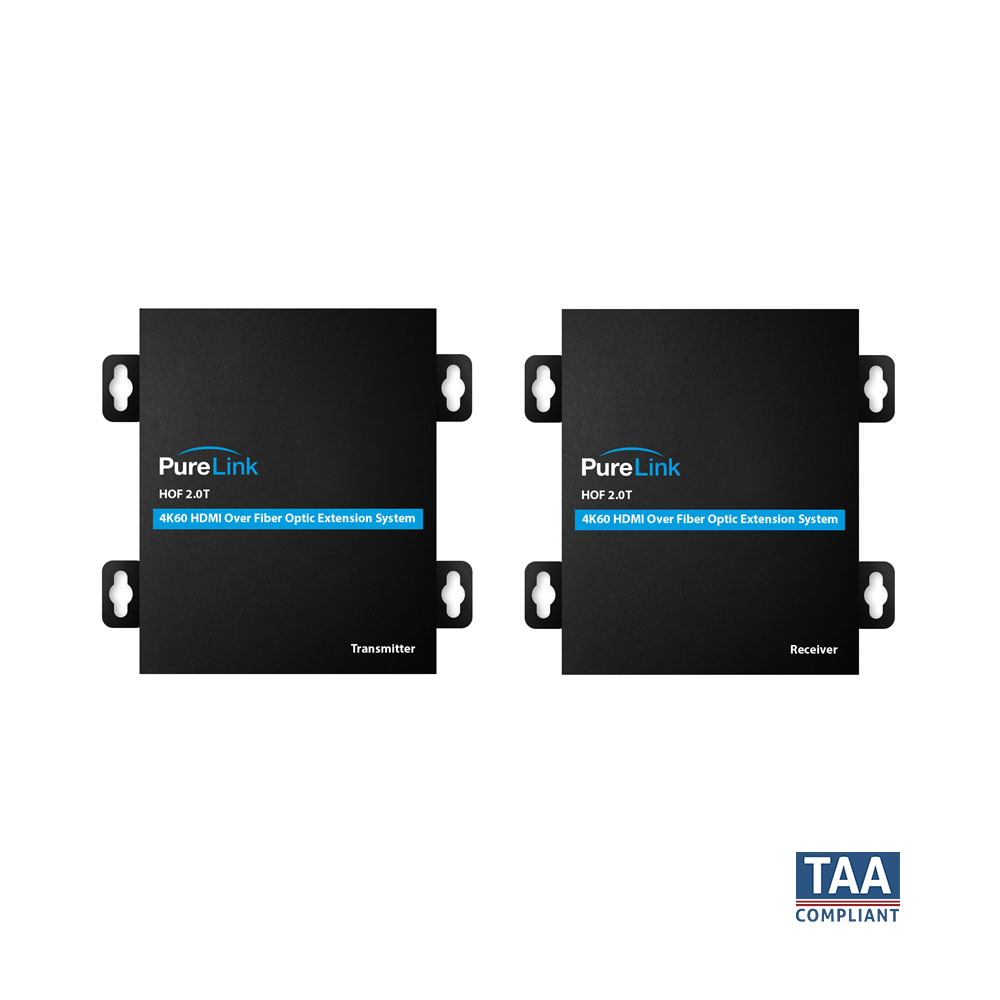

4K/60 HDMI Over Fiber Extension System – TAA Compliant
SKU: HOF T2.0 Tx/Rx- TAA Compliant
- Resolutions up to 4K60 4:4:4 HDR
- Up to 6,561 ft (2,000m) over single mode fiber 984ft (300m) over multi mode fiber
- HDMI 2.0, HDCP 2.2 Compliant
- Real-Time Auto-EDID Management
The HOF T2.0 Tx/Rx offers a powerful solution for long-distance distribution of 4K/60 video, audio, and control signals over fiber. Ultra HD/4K, HDMI 2.0 (18G), embedded audio, RS-232, and bi-directional IR are all supported over distances up to 6,561 ft (2,000m) over single mode fiber 984ft (300m) over multi mode fiber using PureLink’s TOTALWIRE LC-terminated fiber optic cables. The pure fiber connection provides protection from electromagnetic interference (EMI), delivering lossless transport for optimal signal quality.
- TAA Compliant
- Resolutions up to 4K60 4:4:4 HDR
- Up to 6,561 ft (2,000m) over single mode fiber 984ft (300m) over multi mode fiber
- HDMI 2.0, HDCP 2.2 Compliant
- Real-Time Auto-EDID Management
- 18Gbps bandwidth support
- LPCM 7.1 audio, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X formats
- Bi-directional IR & RS-232 control
- USB keyboard mouse
Hardware.
| Audio | LPCM 2/5.1/7.1 Ch, Dolby Digital+, Dolby TrueHD, Dolby Digital, Dolby Atmos, DTS:X, DTS-HD Master Audio, DTS 5.1 |
Performance
| Supported Distance | Up to 6,561 ft (2,000m) over single-mode fiber, 984ft (300m) over Multi-mode fiber |
| Supported Resolutions | 4K@60Hz 4:4:4 18Gbps (6Gbps per color) 1080p@60Hz 16bit, 3D, HDR, Dolby Vision |
| Compliance | HDMI 2.0, HDCP 2.2, HDCP 1.4 |
| Supported Audio Formats | LPCM 7.1 @192KHz, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X |
| Power Consumption | Max 5 W |
| RS-232 | 115200 bps / Full Duplex |
| Operating Temperature | 14~113°F (-10~45°C) |
| Storage Temperature | -22~158°F (-30~70°C) |
| Relative Humidity | Up to 95% |
Connections.

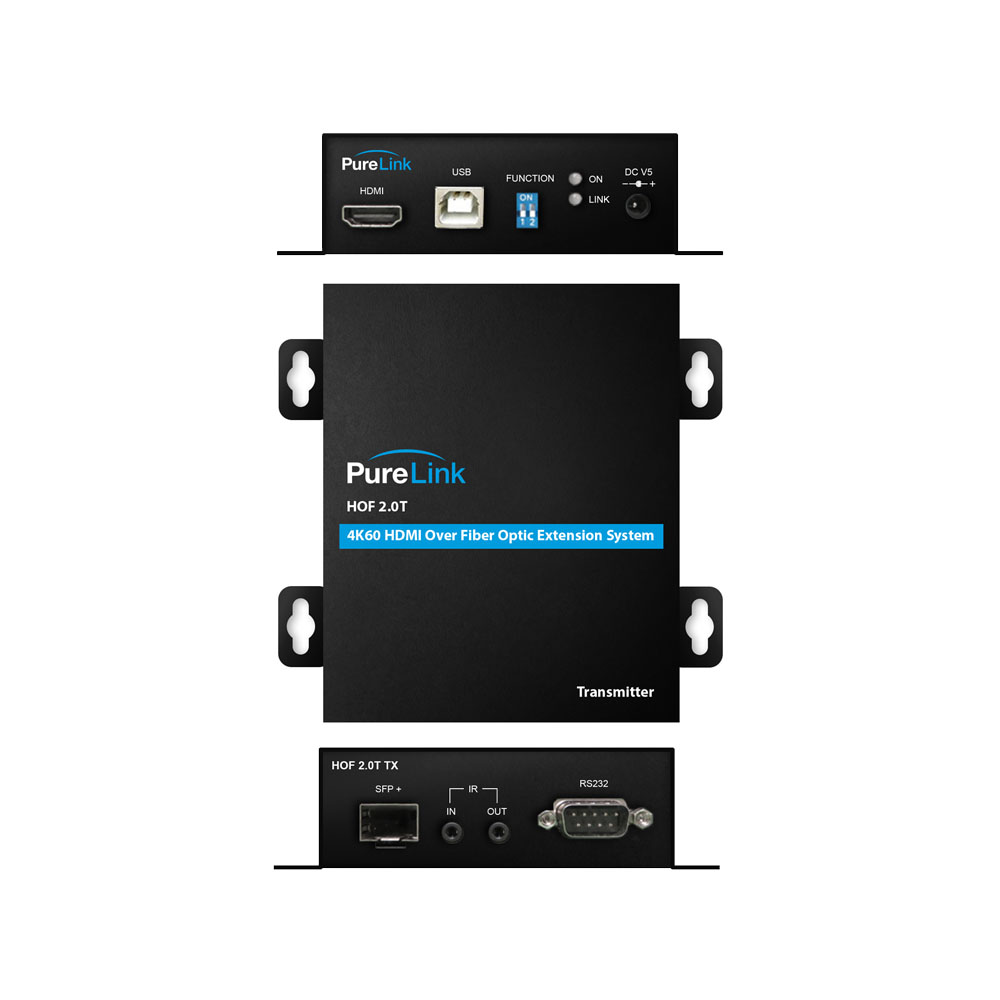

| Inputs | <li>TX: (1) HDMI Type A female, (1) USB Type B</li><li>RX: (1) SFP 10G+ Fiber module</li< |

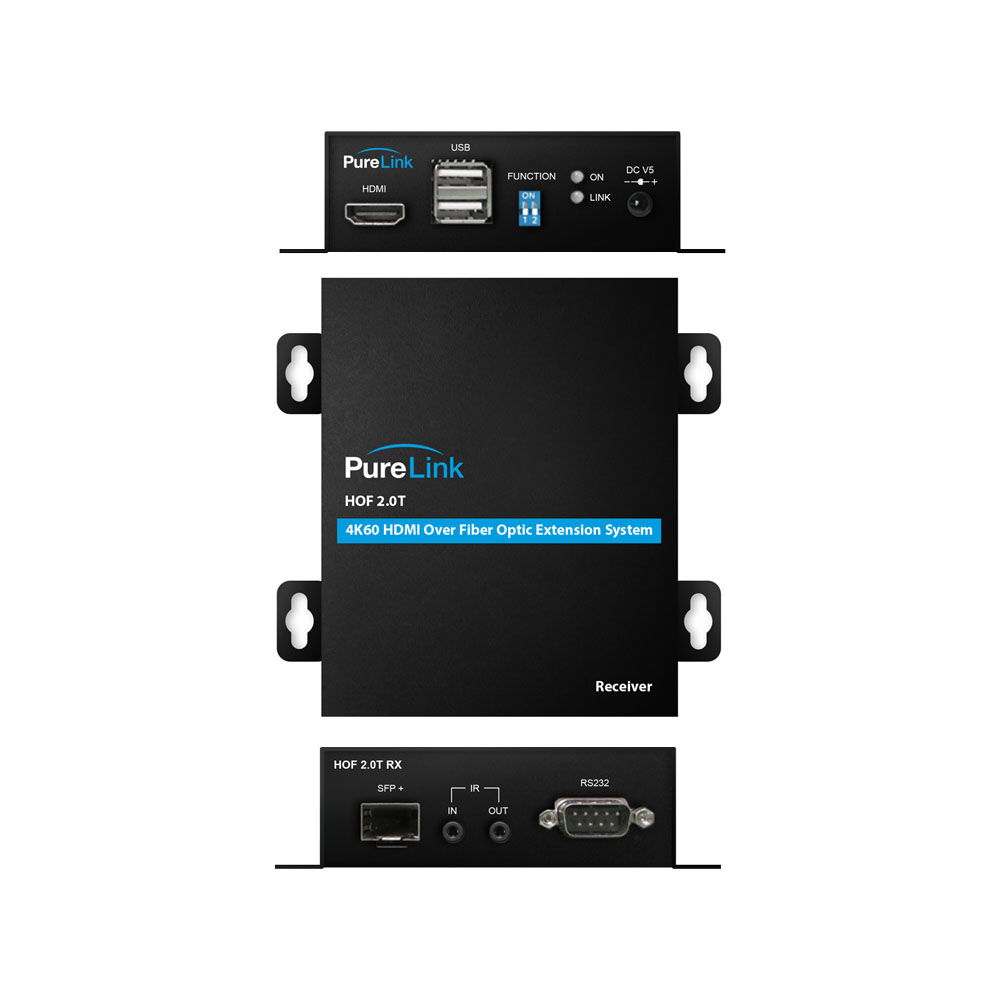

| Outputs | <li>TX: (1) SFP 10G+ Fiber module </li><li>RX: (1) HDMI Type A female, (2) USB Type A</lI> |
| Control Ports | TX & RX: (1) DB9 female [RS-232], (2) 3.5mm jack [IR Input/Output] |
Power
| Power Supply | DC 12V 5A, 20W |
Enclosure
| Product Dimensions | 4.31”x4.51”x1.18” (109.6 x 114.5 x 30mm) |
| Product weight | 0.6 lb. (270g) |
Warranty
| Warranty | 5-Years |
