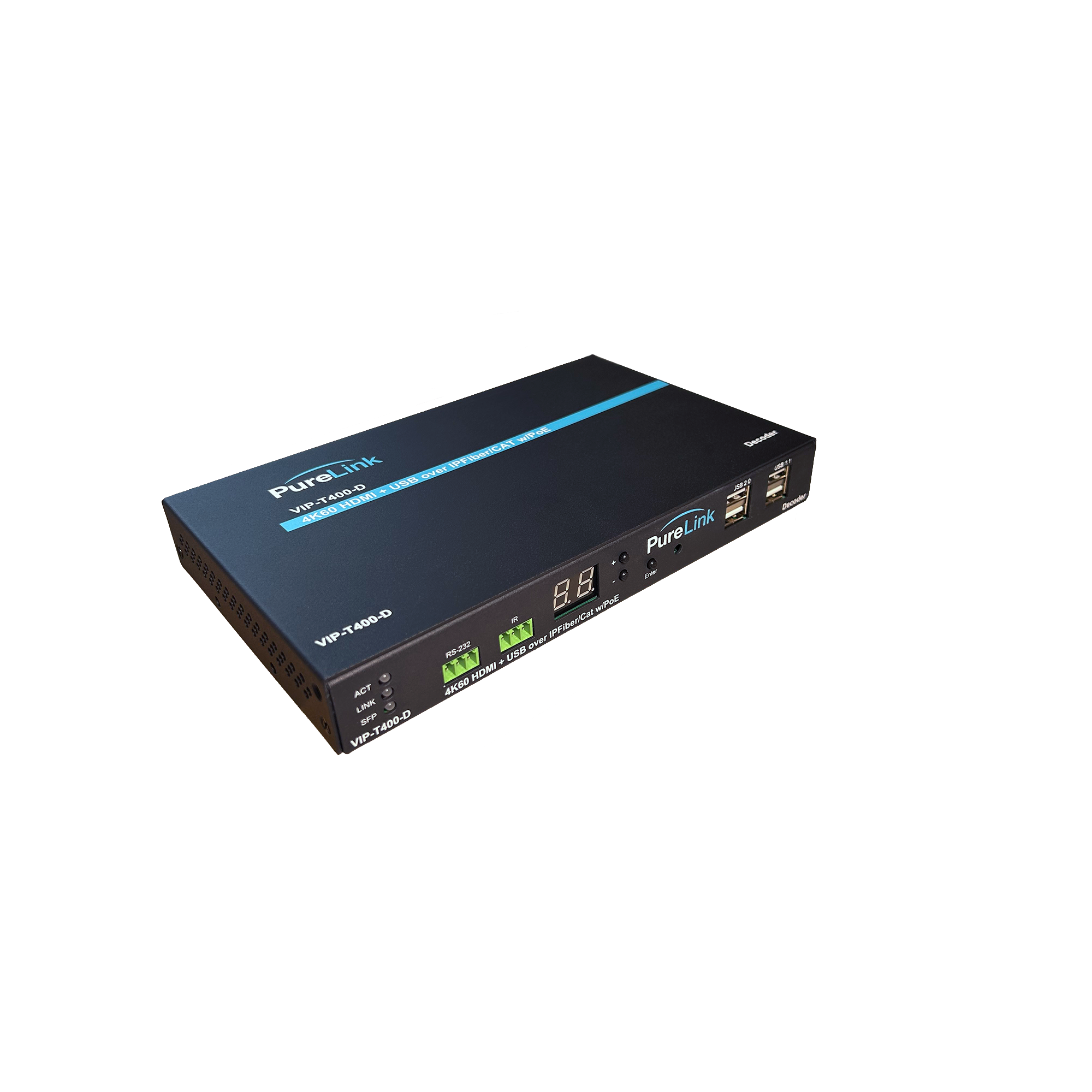

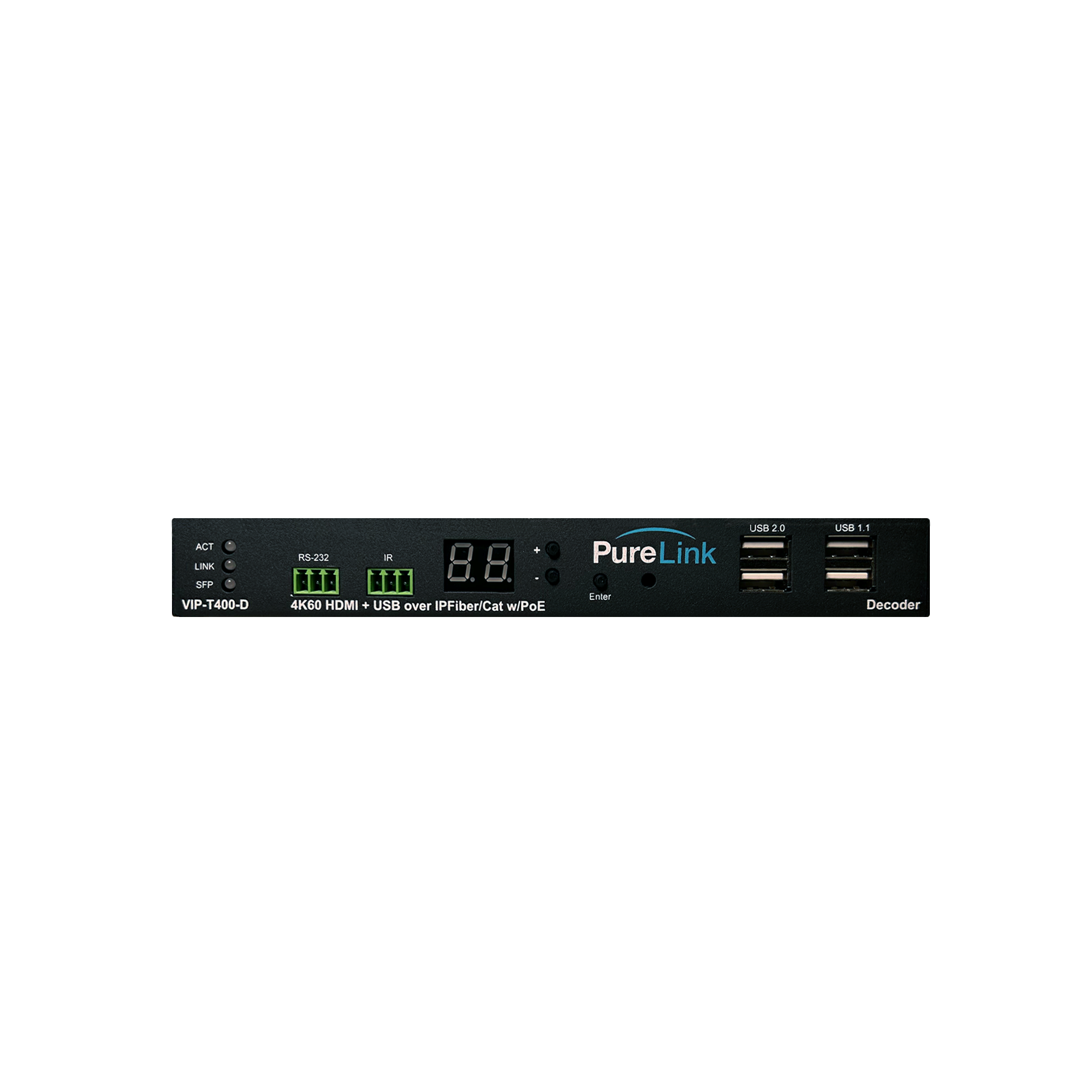

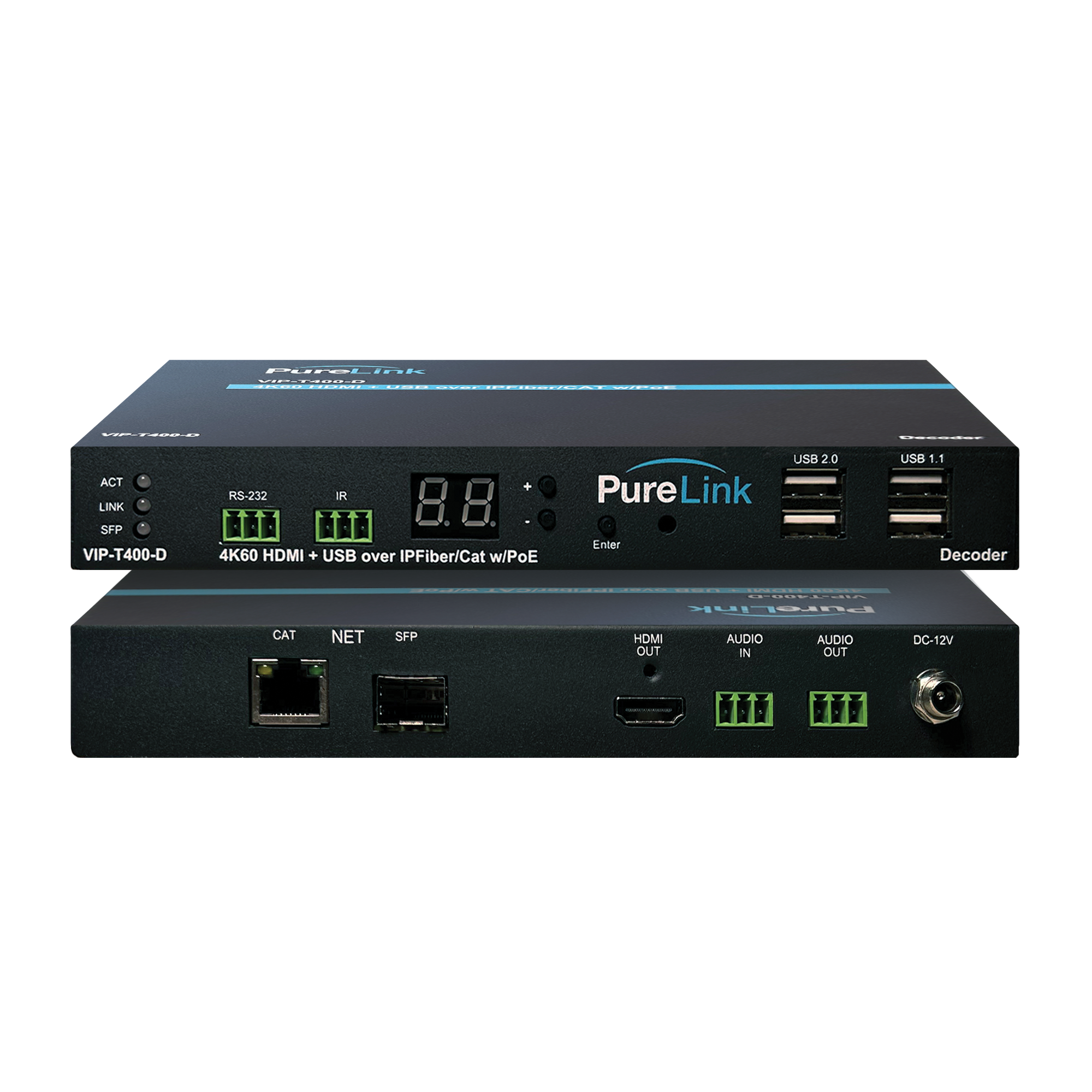

4K60 HDMI & USB/KM CAT and Fiber – AV over IP Decoder – TAA
SKU: VIP-T400-D- 4K60 4:4:4 HDR
- Ultra-low latency (<17mS)
- Data rate 300 Mbps typical; 50-850 Mbps range, variable
- Fiber or CAT transport – 1G port
- Extend signals up to 120 meters over CAT6, 240 meters using a network switch, and up to 2km with SFP fiber single mode
The VIP-T400 4K HDMI & USB/KM CAT and Fiber AV over IP Decoder provides UltraHD/4K60 4:4:4 HDR video, audio, RS-232, IR, and USB 1.1, 2.0, and USB camera signal transport over IP networks. The VIP-T400 can be used as a point-to-point extension system supporting distances up to 120 meters over CAT6a, and up to 2 kilometers over SFP Single Mode Fiber, and is also compatible with MultiMode SFP for shorter distances. The VIP-T400 is designed to handle multiple signals types for applications that require reliable distribution, switching, matrixing, and layered matrix switching. The VIP-T400 supports audio insertion and extraction. Multiple control options are available including the VIP-T400’s own rich API, PureLink’s VPX IP Video Management Software, and QSC plugin. Providing complete and reliable AV over IP extension, the VIP-T400 is the ideal solution for your application. The VIP-T400 is TAA compliant, making it perfect for Government and Military applications and critical viewing 24/7/365 installations.
- 4K60 4:4:4 HDR
- Ultra-low latency (<17mS)
- Data rate 300 Mbps typical; 50-850 Mbps range, variable
- Fiber or CAT transport – 1G port
- Extend signals up to 120 meters over CAT6, 240 meters using a network switch, and up to 2km with SFP fiber single mode
- HDCP 2.2 compliant
- USB 1.1 and 2.0 including USB camera support
- Comprehensive diagnostics via API – device discovery, signal data, and EDID
- Supports instant switching (same resolutions)
- Multiple control interfaces – built-in web interface, front panel buttons, VPX Management Software, QSC modules, and 3rd party control development via API
- Built-in video wall processing (up to 8×8)
- Built-in scaler on the receiver (decoder)
- Image rotation; 90, 180 degrees
- IR and RS232 extension
- TCP/IP to RS232
- HDMI loop-out on TX (encoder)
- Powered by included AC power adapter, or via PoE 802.3af (8.5W)
- Supports Dolby, DTS, and LPCM audio and more
- Matrix switching systems up to 999 sources and 65K displays
- Rack-mount options available
Performance
| Supported Distance | 120M CAT6a, up to 2Km using SFP Single Mode |
| Supported Resolutions | Up to 4K UHD 4:4:4 @ 60HZ |
| Compliance | HDCP 2.2 |
| Video input format | HDMI 2.0, Dolby Vision |
| Video output format | HDMI 2.0, Dolby Vision |
| Supported Audio Formats | 5.1 Ch, 7.1 Ch LPCM, 5.1 Ch Dolby, Dolby Pro Logic, DTS, 7.1 Ch Dolby TrueHD, DTS-HD, Dolby Atmos DTS:X |
| Ir Receiver(Internal) | 3 pin mini-phoenix |
| Power Consumption | 8.5 Watts |
| Power Supply | DC 12V 1500mA |
| RS-232 | Extension, and access via TCP/IP |
| IR Extension | Bidirectional |
| PoE (Power Over Ethernet) | 802.3af |
| HDR Support | HDR/HDR10/HDR10+ |
| Data Rate | 50-850 Mbps, 300 Mbps typical |

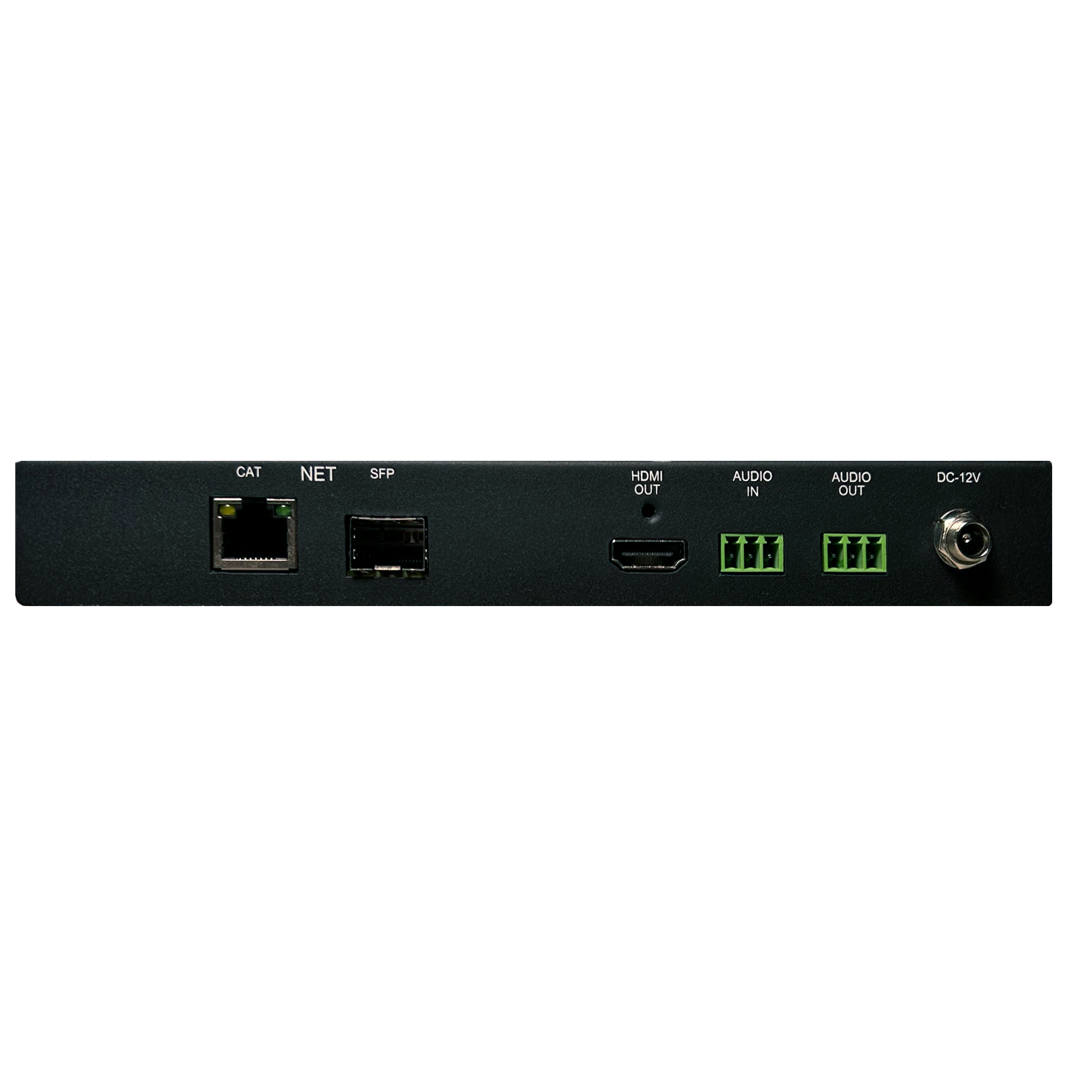

Connections.
| Outputs | HDMI (1) |
| Control Ports | RS232 - 3 pin mini phoenix, Relay (2) 2 pi mini phoenix, Digital OIO (2) - mini phoenix |
| Audio Input Type(s) | Analog Stereo - 3 pin mini phoenix |
| Audio Output Type(s) | Analog Stereo - 3 pin mini phoenix, SPDIF (ARC) |
Software
| VPX Software Suite | Compatible |
| OS Compatibility | QSC Modules available |
Power
| Power Supply | DC 12V 5A, 20W |
Enclosure
| Product Dimensions | 8 |
| Product weight | 1.5 lbs. |
Warranty
| Warranty | 5-Years |
