The VIP-T400 4K HDMI & USB/KM CAT and Fiber AV over IP Encoder provides UltraHD/4K60 4:4:4 HDR video, audio, RS-232, IR, and USB 1.1, 2.0, and USB camera signal transport over IP networks. The VIP-T400 can be used as a point-to-point extension system supporting distances up to 120 meters over CAT6a, and up to 2 kilometers over SFP Single Mode Fiber, and is also compatible with MultiMode SFP for shorter distances. The VIP-T400 is designed to handle multiple signals types for applications that require reliable distribution, switching, matrixing, and layered matrix switching. The VIP-T400 supports audio insertion and extraction. Multiple control options are available including the VIP-T400’s own rich API, PureLink’s VPX IP Video Management Software, and QSC plugin. Providing complete and reliable AV over IP extension, the VIP-T400 is the ideal solution for your application. The VIP-T400 is TAA compliant, making it perfect for Government and Military applications and critical viewing 24/7/365 installations.

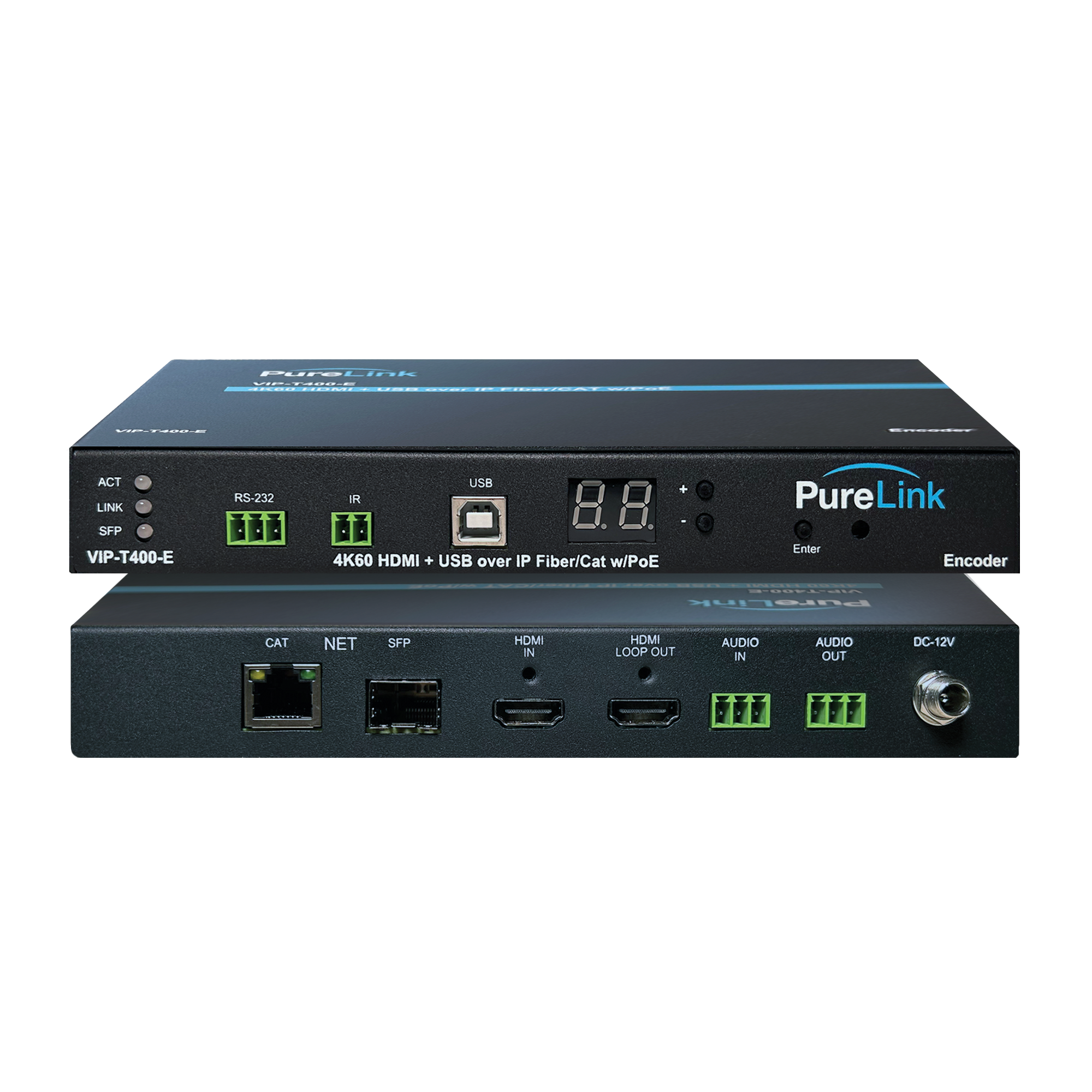

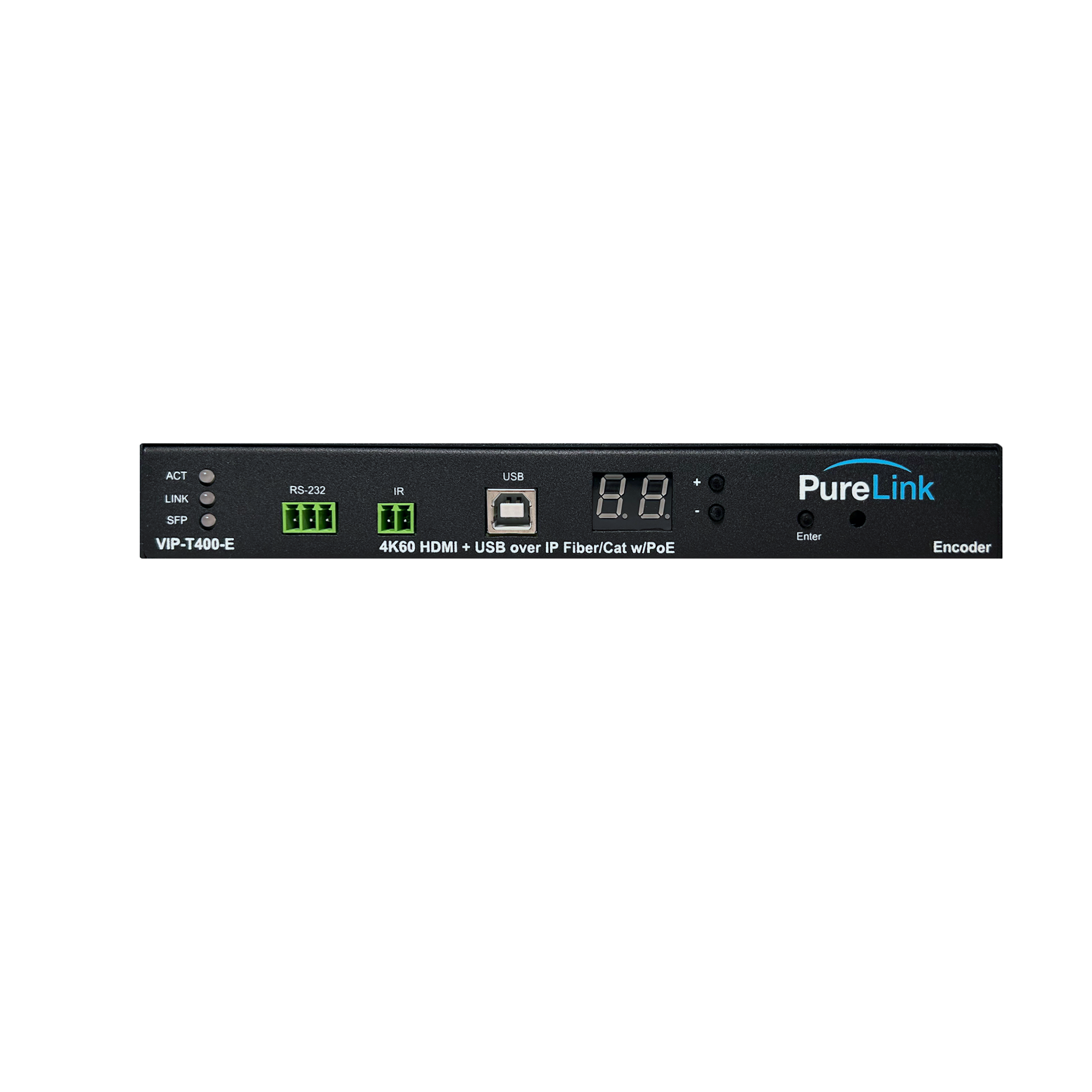

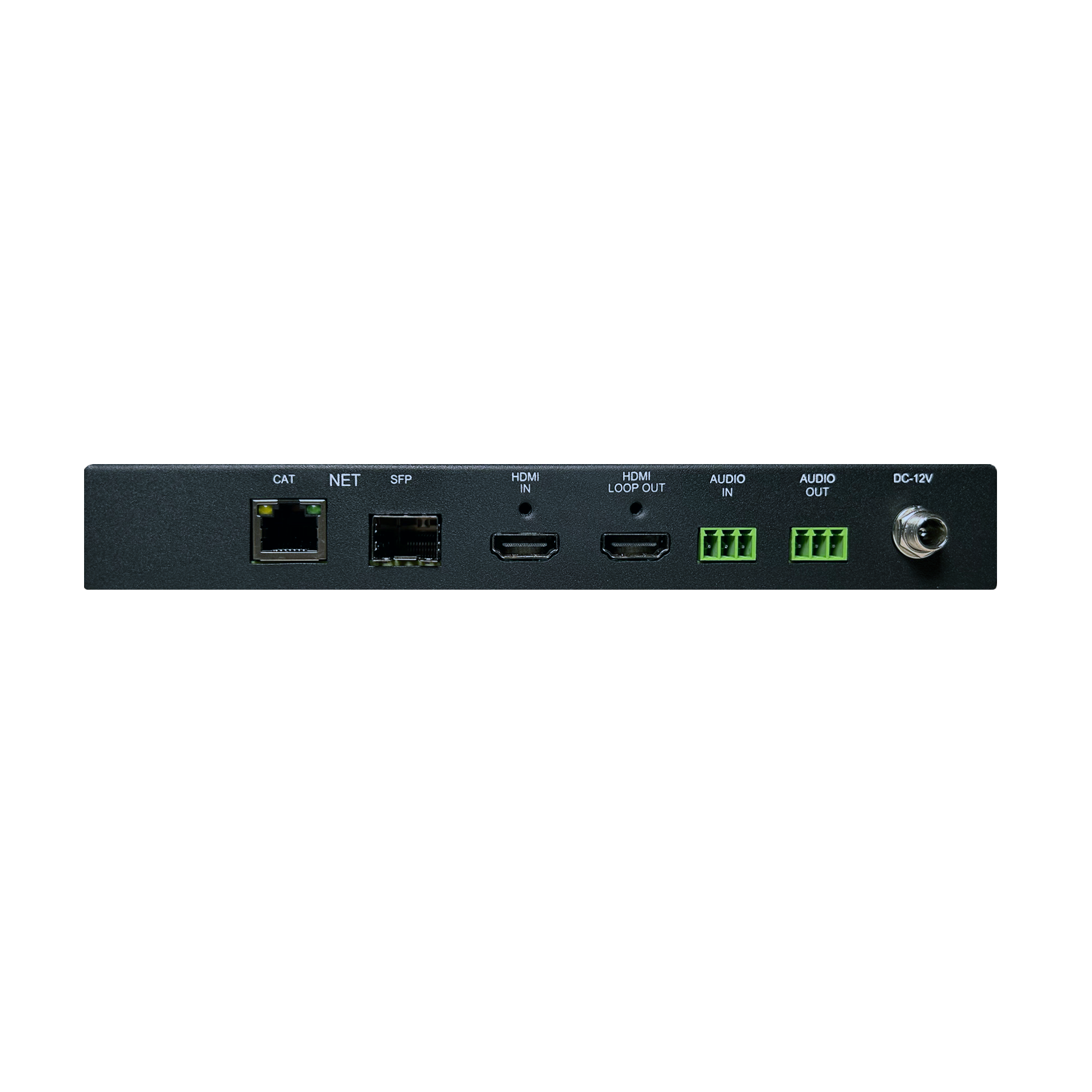

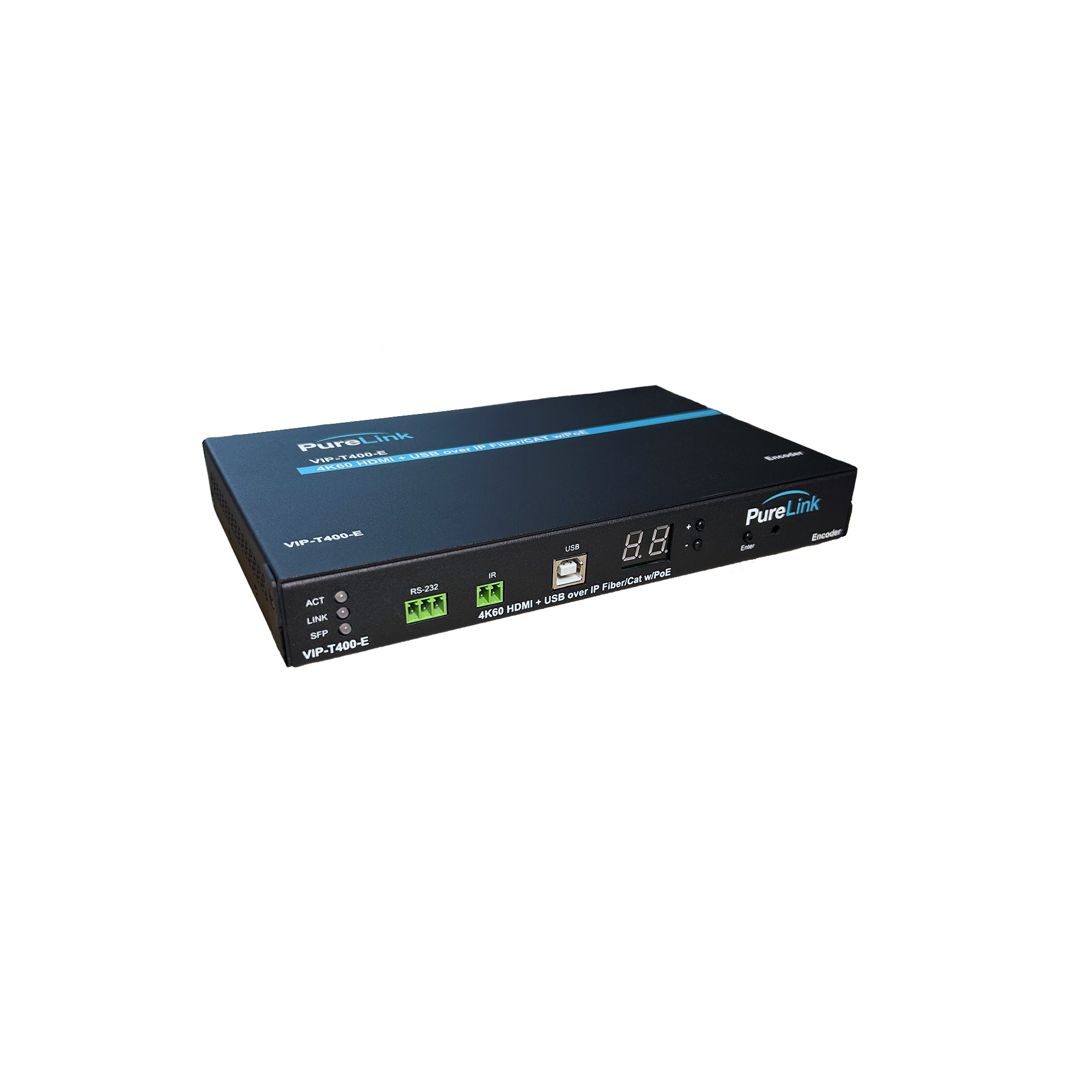

VIP-T400 4K HDMI & USB/KM CAT and Fiber AV over IP Encoder
- 4K60 4:4:4 HDR
- Ultra-low latency (<17mS)
- Data rate 300 Mbps typical; 50-850 Mbps range, variable
- Fiber or CAT transport – 1G port
- Extend signals up to 120 meters over CAT6, 240 meters using a network switch, and up to 2km with SFP fiber single mode
- HDCP 2.2 compliant
- USB 1.1 and 2.0 including USB camera support
- Comprehensive diagnostics via API – device discovery, signal data, and EDID
- Supports instant switching (same resolutions)
- Multiple control interfaces – built-in web interface, front panel buttons, VPX Management Software, QSC modules, and 3rd party control development via API
- Built-in video wall processing (up to 8×8)
- Built-in scaler on the receiver (decoder)
- Image rotation; 90, 180 degrees
- IR and RS232 extension
- TCP/IP to RS232
- HDMI loop-out on TX (encoder)
- Powered by included AC power adapter, or via PoE 802.3af (8.5W)
- Supports Dolby, DTS, and LPCM audio and more
- Matrix switching systems up to 999 sources and 65K displays

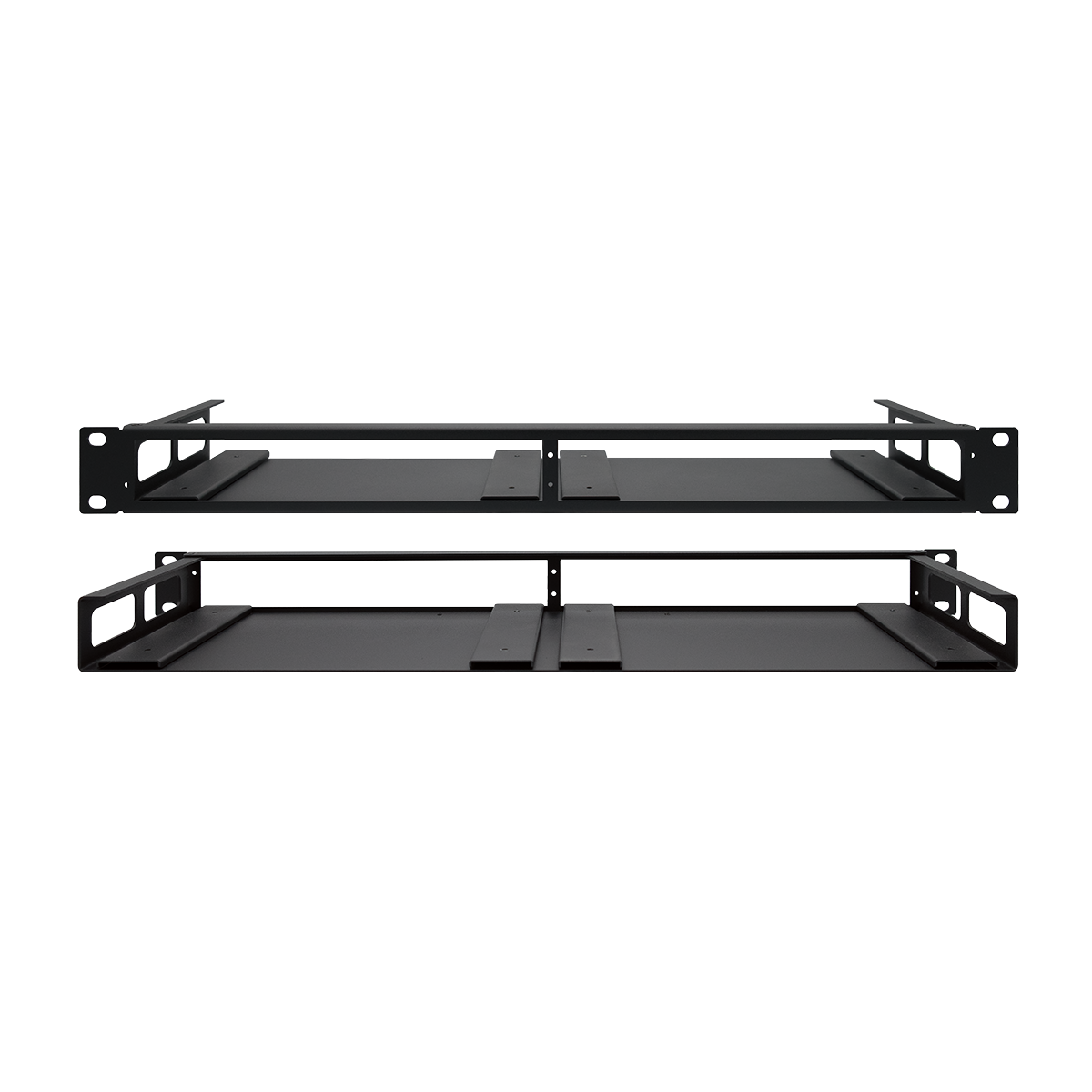

- Rack-mount options available
