4K/60 HDMI & USB/KM Double Gang In-wall AV over IP Encoder
SKU: VIP-T400-E-WP- Extends 4K60 4:4:4 HDR Video, High-Definition Audio, USB, and Control Signals
up to 394ft (120m) via Cat6a over IP Networks - Ultra-low Latency (<17mS)
- Variable Data Rate (300Mbps typical | 50-850Mbps range)
- Works on 1G networks
- Matrix Switching up to 999 Sources and 65K Displays
The VIP-T400-E-WP is a 4K60 HDMI & USB/KM AV over IP Encoder Wallplate, designed to work together with the VIP-T400-E/D system, delivering high-quality UltraHD/4K60 4:4:4 HDR video, USB, and high-res audio over IP networks. It supports point-to-point extension up to 394ft (120m) via Cat6a and accommodates various signal types for dependable distribution, switching and matrixing needs. The proprietary channel display makes it easy to identify which source you want distributed to which display. Up to 1000 sources and even more displays can be added to the system.
Key features include ultra-low latency, quick or instant switching, video wall processing, 2ch stereo analog audio embedding. Additionally, the VIP-T400-E-WP provides diverse control options including its own API, PureLink’s iCON™ Control/Automation platform, Purelink’s VPX™ IP Video Management Software, as well as modules/plugins for Crestron and Q-Sys . It is TAA compliant, ensuring suitability for government, military, and 24/7/365 installations.
- Extends 4K60 4:4:4 HDR Video, High-Definition Audio, USB, and Control Signals
up to 394ft (120m) via Cat6a over IP Networks - Ultra-low Latency (<17mS)
- Variable Data Rate (300Mbps typical | 50-850Mbps range)
- Works on 1G networks
- Matrix Switching up to 999 Sources and 65K Displays
- USB 2.0 including cameras
- Audio Insertion/Embedding
- HDCP 2.2 | Dolby Digital | DTS | LPCM audio
- Instant Switching (Same Resolutions)
- Comprehensive API diagnostics (Device Discovery | Signal Data | EDID)
- Multiple Control Interfaces
iCON Built-In Web Interface | VPX Management Software | QSC Modules | 3rd Party Control via API - Built-in LED displays current channel
- TCP/IP to RS-232 Control Extension
- PoE 802.3af (7W) or Local 12VDC Power
- TAA Compliant: Complies with Trade Agreements Act Regulations
| STANDARDS | HDMI 2.0 | HDCP 2.2 | TCP/IP | USB 2.0 |
| Supported Distance | Up to 394ft (120m) via Cat6a or higher |
| Supported Resolutions | Ultra HD 4K/60 4:4:4 HDR (4096x2160, 4:4:4 @ 50/60Hz) |
| Compliance | Trade Agreements Act (TAA) |
| Supported Audio Formats | LPCM up to 12-channels | Dolby Digital® Plus | Dolby® TrueHD | DTS® HD | Master Audio | Dolby ATMOS |
| Power Consumption | 7 Watts |
| Power Supply | PoE 802.3af | 12VDC |
| RS-232 | TCP/IP to RS-232 (Bi-directional) | RS-232 pass through (bi-directional- encoder – decoder) |
| Operating Temperature | 32°F ~ 117°F (0°C ~ 50°C) | 10% ~ 90%, non-condensing |
| Storage Temperature | -40°F ~ 158°F (-20°C ~ 85°C) | 10% ~ 90%, non-condensing |
| HDR Support | HDR/HDR10/HDR10+ |
| Color Depth | Deep Color | 3D | 4K HDR | HDR10+ |Dolby Vision |
| MTBF | 90,000 hours |
| Data Rate | 50-850 Mbps (300 Mbps typical) |
| Inputs | 1x HDMI 2.0 | 1x 2ch Stereo Analog TRS 3.5mm | 1x USB Type-B |
| Outputs | 1x AVoIP 1G Ethernet | RJ-45 |

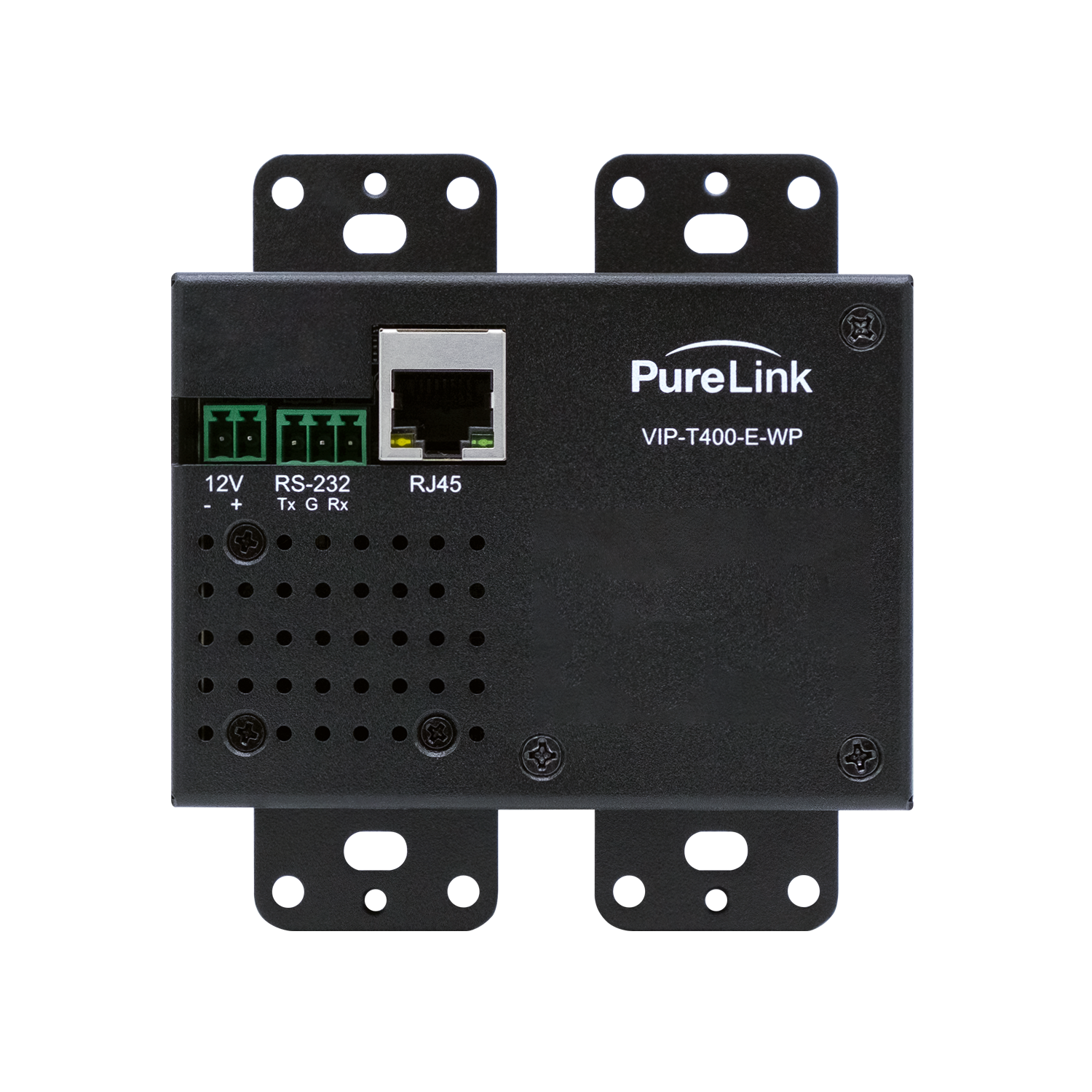

| Control Ports | TCP/IP Ethernet RJ-45 | RS-232 3-pin Phoenix Connector |
| Audio Input Type(s) | 2ch Stereo Analog TRS 3.5mm |
| VPX Software Suite | Compatible |
| OS Compatibility | QSC Modules available |
| Power Supply | DC 12V 5A, 20W |
| Enclosure Type | Double Gang In Wall Plate |
| Product Dimensions | 4in x 3.94in x1.61 in (104mm x 100mm x 41mm) |
| Warranty | 5-Years |
