4×4 4K60 HDMI to HDBaseT/HDMI Matrix Switcher with Audio De-Embed and PoC
SKU: HTX III-4400- HDMI 2.0b (18Gbps), HDCP 2.2, HDCP 1.4, HDR, HDR 10+
- (4) HDMI inputs, (4) HDBase outputs with mirrored HDMI outputs
- Supports resolutions up to 4K@60HZ (4:4:4) HDR on all HDMI ports
- Supports distances up to 492 ft. (150 m) via CATx
- Supports pass-through audio up to 7.1 channels of High Definition audio (LPCM, Dolby TrueHD, and

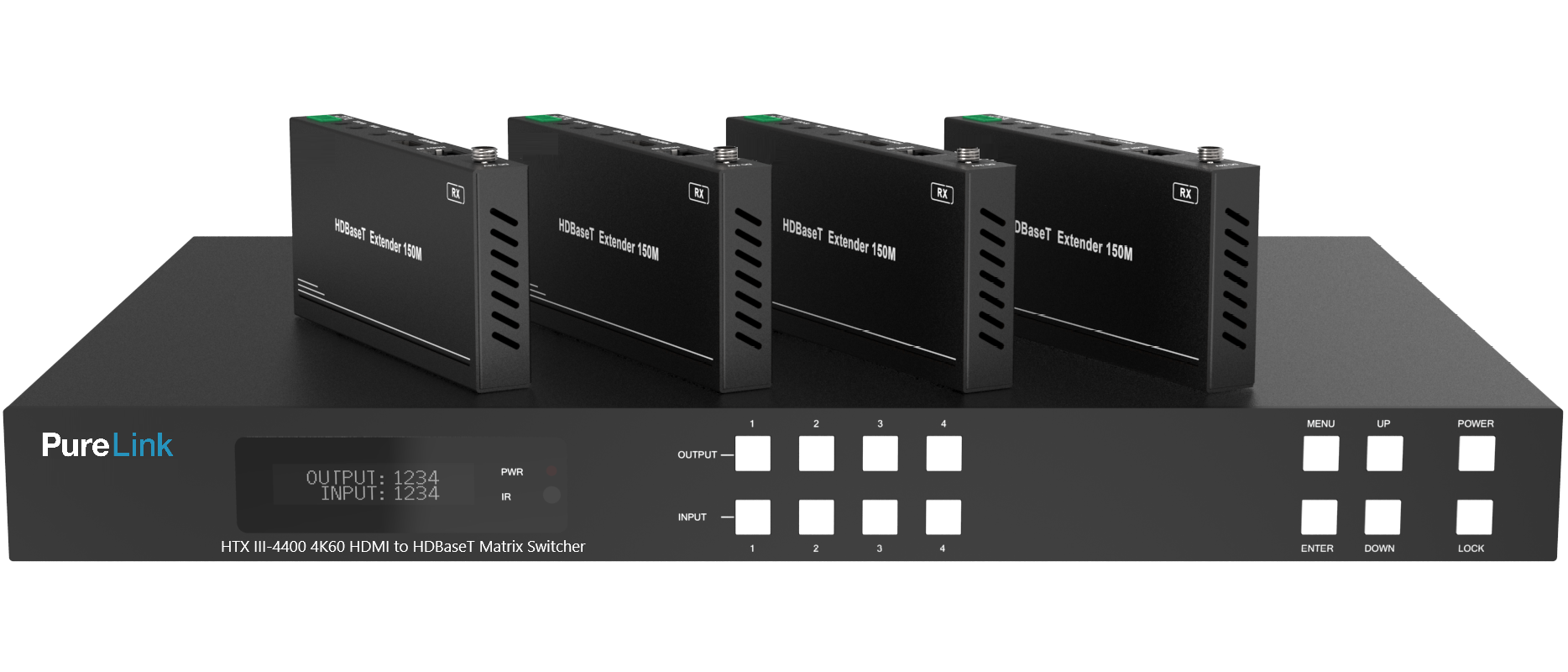

The HDTools™ HTX III-4400 provides matrix switching and extension up to 150 meters (492 feet) of (4) Ultra HD/4K sources via HDBaseT™ (with HTX III-RX receivers, sold separately). Each HDBaseT output includes a mirrored local HDMI output on the matrix. The HTX III-4400 also features de-embedding of balanced stereo analog audio and SPDIF on the switch for each output, and unbalanced stereo analog de-embedding on each Receiver.
The HTX III-4400 is HDCP 2.2 compliant, provides IR and RS232 extension, and offers PoC power for all HDBaseT Receivers.
The HTX III-4400 is perfect for:
- Conference Rooms
- Hospitality and Convention Halls
- Corporate
- Entertainment
- Retail
- Home Theater
- and much more…
Couple the HTX III-4400 with our iCON-10W 10 button controller for easy implementation of Video/Audio/IR/RS232 matrixing and control of your space.
Crestron and QSC modules are available for the HTX III-4400 as well as an intuitive API for developing control modules for other third party control systems.
- HDMI 2.0b (18Gbps), HDCP 2.2, HDCP 1.4, HDR, HDR 10+
- (4) HDMI inputs, (4) HDBase outputs with mirrored HDMI outputs
- Supports resolutions up to 4K@60HZ (4:4:4) HDR on all HDMI ports
- Supports distances up to 492 ft. (150 m) via CATx
- Supports pass-through audio up to 7.1 channels of High Definition audio (LPCM, Dolby TrueHD, and
- DTS-HD Master Audio)
- CEC control of peripherals
- 24V PoC on all HDBaseT ports
- Control via on-panel Buttons, IR, Web GUI, and RS-232, LAN via API
- Crestron and QSC modules available
- EDID Management:
- 22 selectable EDID
- 2 User Defined
- 16 readable (from HDMI or HDBaseT output connections)
| Input Signal Type(s) | HDMI |
| Output Signal Type(s) | HDBaseT, HDMI |
| Supported Resolutions | up to 4K@50/60Hz (4:4:4) |
| Supported Audio Formats | PCM 2.0, 32K/44.1K/48K/88.2K/96K/192K,16/20/24bit |
| Compliance | HDMI 2.0/1.4, HDCP 2.2 |
| Data Transfer Rate | 18 Gbps |
| Color Space | RGB/YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth | 8-bit 10-bit 12-bit |
| Supported HDMI Audio Formats | LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
| RS-232 | Yes |
| IR Extension | Yes |
| LAN | Yes |
| Control Options | Front panel; web UI |
| Power Consumption | 85 Watts (max) |
| Power Supply | 100-240VAC 50/60Hz |
| Power Injection for CATx Extenders | Enabled on all HDBaseT outputs |
| Operating Temperature | 32° ~ 104 F (0° to 40° C) |
| Storage Temperature | -4° ~ 140° F (-20° to 60° C) |
| Relative Humidity | 20 ~ 90% non-condensing |
| MTBF | 50,000 hours |

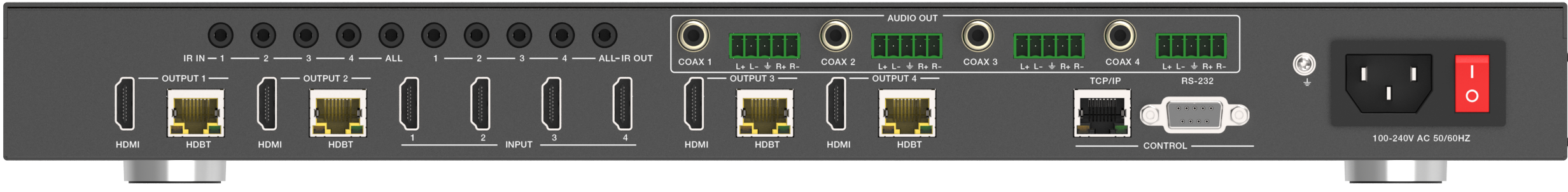

| Input Type(s) | (4) HDMI Type A [19-pin female], (4) IR In [3.5mm Stereo mini-jack], (1) Ethernet [RJ45], (1) RS-232 [DB9] |
| Output Type(s) | (4) HDMI Type A [19-pin female], (4) IR Out [3.5mm Stereo mini-jack], ) L/R Audio Out [mini phoenix], (8) HDBaseT Out [RJ45] |
| Enclosure Type | All metal, black powder coat finish |
| Product Dimensions | 19” x 14.7” x 3.49” |
| Product Weight | 14.77 lbs. |
| Warranty | Limited Warranty (3-Years) |
