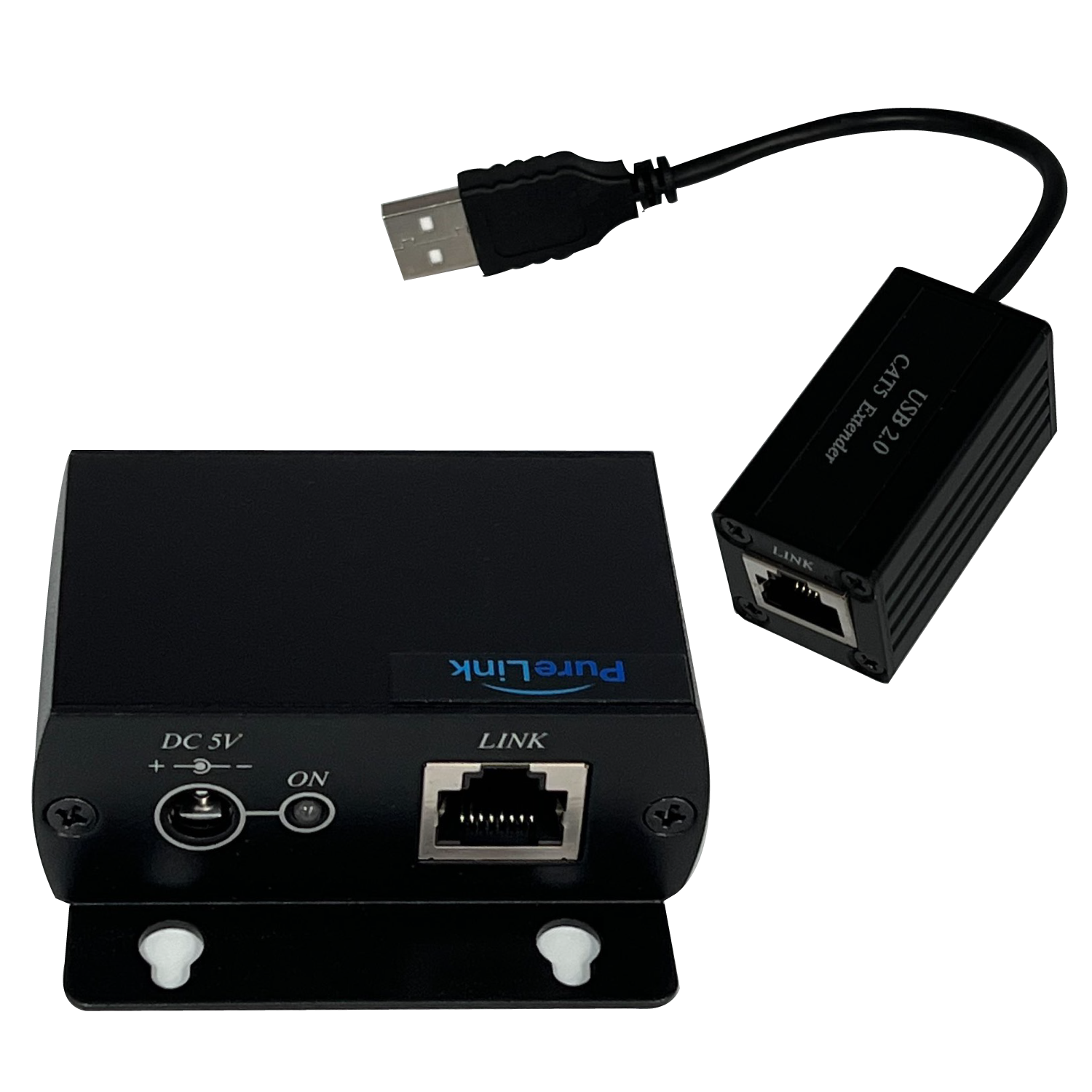

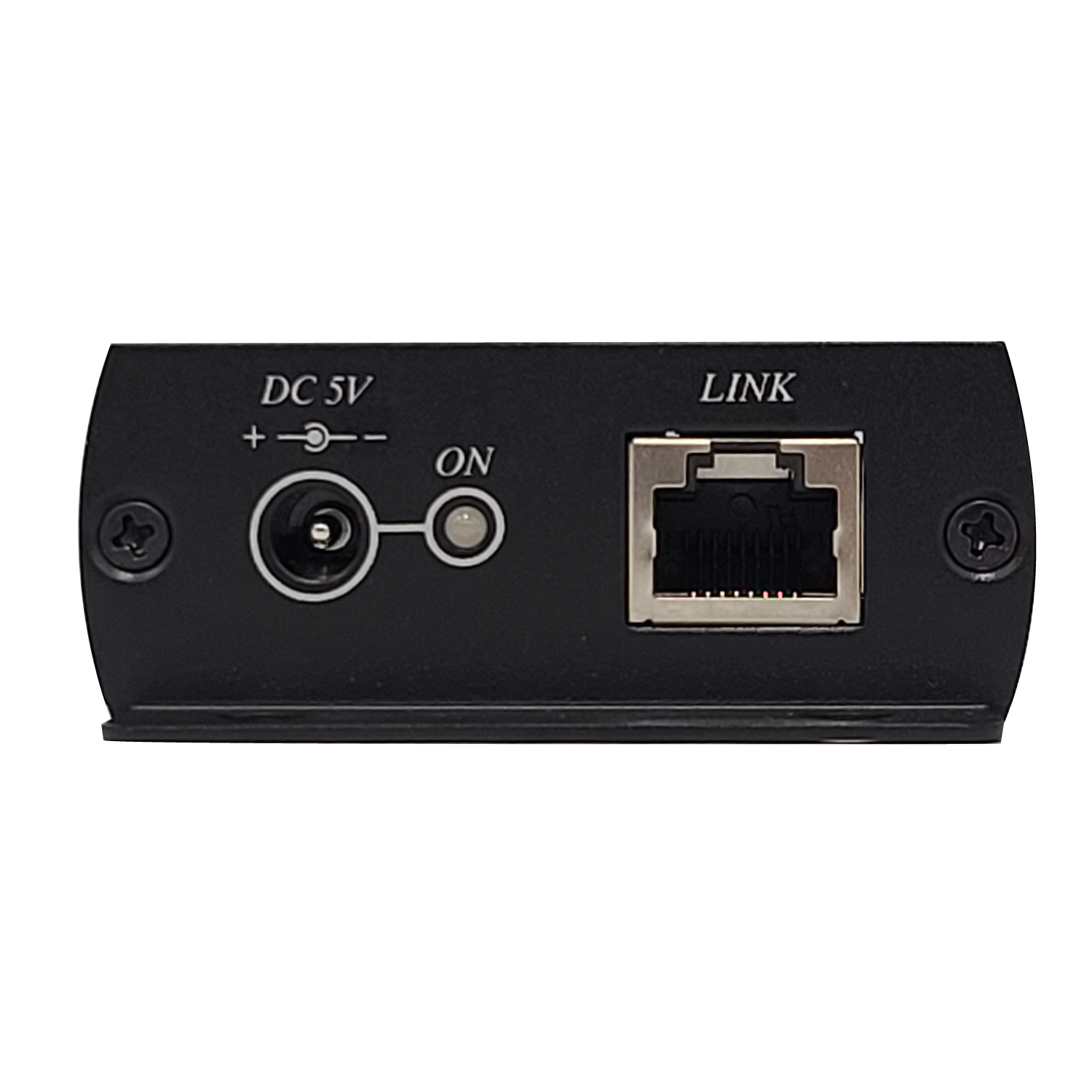

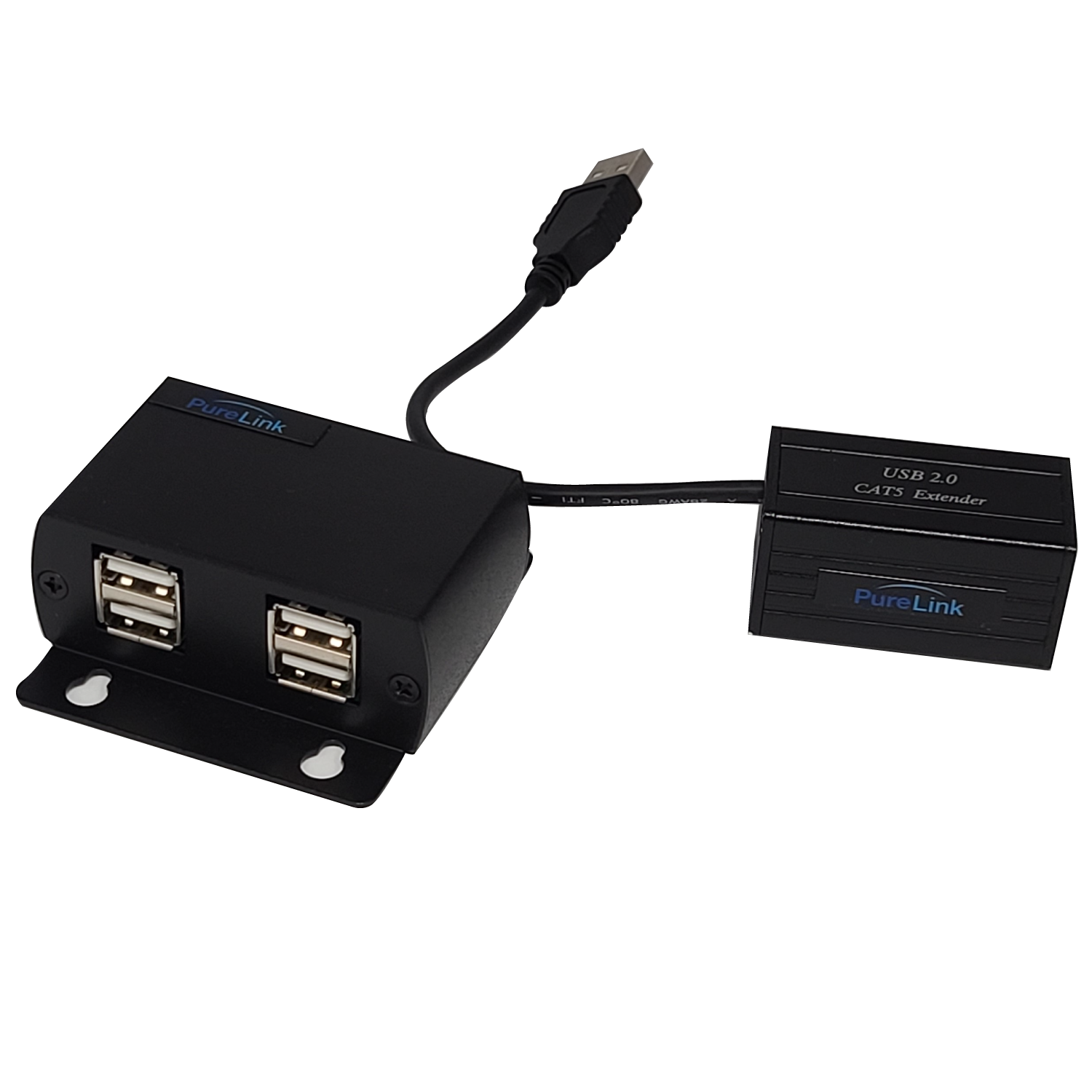

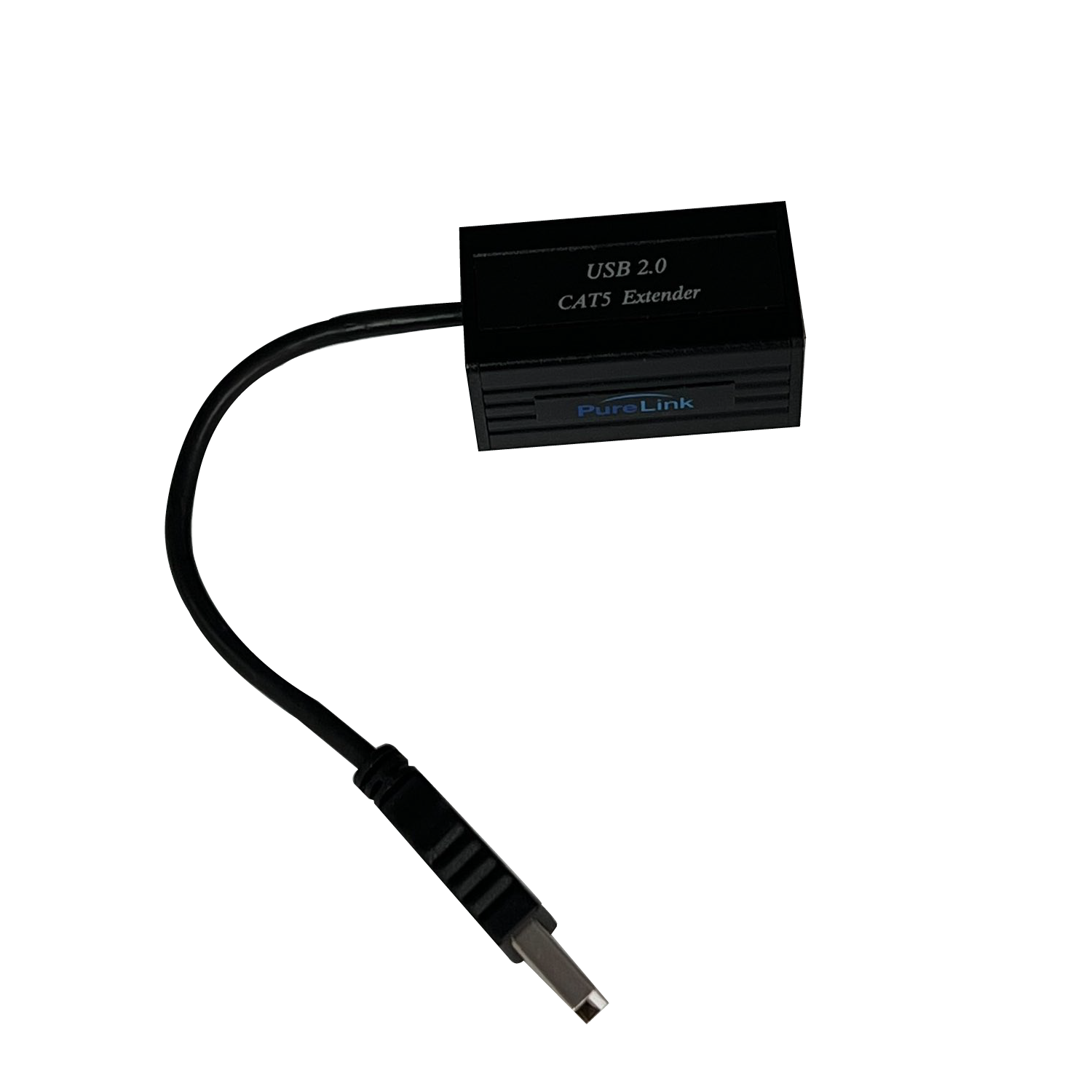

70 Meter USB 2.0 Extender over CAT5/6
SKU: USB2.0-E70- Extends up to 4 USB devices to PC, etc.
- 50M over CAT5e, 70M over CAT6
- USB2.0 and USB 1.1
- Plug and Play
PureLink’s USB 2.0 Extender of CAT provides up to 70 meters of reliable extension. Adding the USB2.0-E70 could not be simpler, connect the TX and RX with quality CAT5e cable or better, apply power to the TX, add your USB devices, and that’s it!
- Extends up to 4 USB devices to PC, etc.
- 50M over CAT5e, 70M over CAT6
- USB2.0 and USB 1.1
- Plug and Play
Connections.
| Inputs | 4X USB TYPE A |
| Outputs | 1X USB TYPE A |
| Connector Type(s) | USB2.0 (480Mbps), USB1.1 (12Mpbs, 1.5Mbps) |
Performance
| Supported Distance | USB2.0: 50M [164ft] @ CAT5e, 70M [230ft] @ CAT6 USB1.1: 100M[328ft] |
| Compliance | TX/RX: TAA, CE, FCC, ROHS POWER ADAPTER UL LISTED |
| Power Adapter | DC 5V, 1500mA 100-240 VAC 50/60Hz POWER ADAPTER INCLUDED [US PLUG] |
| Power Supply | 100-240VAC 50/60Hz |
| Operating Temperature | 32° ~ 120° F (0° to 55° C) |
| Storage Temperature | -20 TO 85 C |
| Relative Humidity | UP TO 95% |
| MTBF | 50,000 hours |
| Diagnostics | POWER, DATA TRANSFER, NO LINK, NO POWER INDICATIONS |
Enclosure
| Product Dimensions | TX: 60x70x27mm RX: 25.4x25.4x240mm + 190mm USB CABLE |
| Product Weight | TX: 115g RX: 55g |
Warranty
| Warranty | Limited Warranty (3-Years) |
