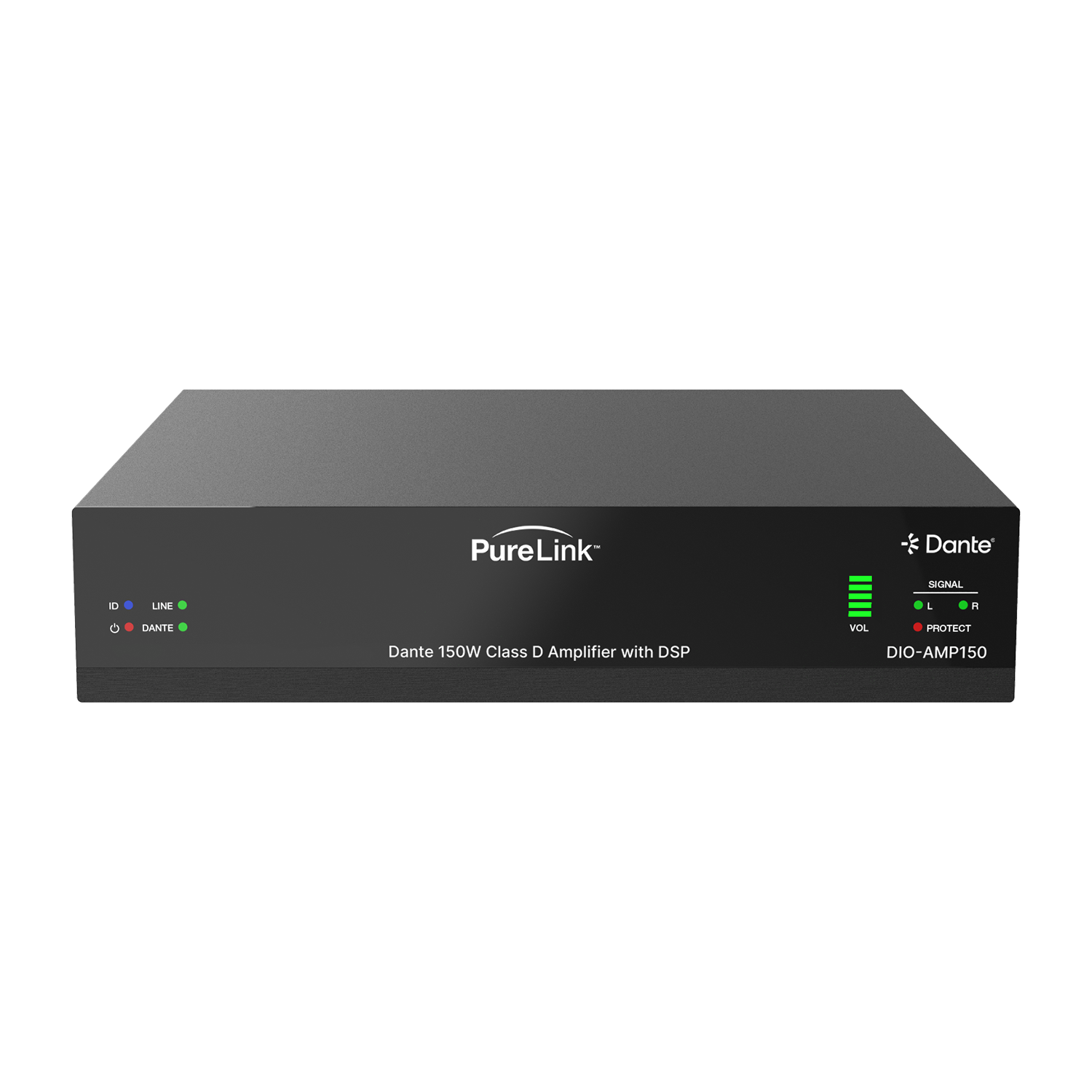

Dante 150W Class D Amplifier with DSP
SKU: DIO-AMP150- Dante 2 channel digital audio inputs, and outputs
- 2 channel balanced / unbalanced inputs, and outputs
- 4 Ω/ 8 Ω amplifier outputs: 150 watts single channel, 75 watts two channel
- 70V / 100V amplifier outputs: 150 watts
- Independent input gains, outputs EQ, and volume control
The DIO-AMP150 is a two-channel class D amplifier featuring Dante 2CH digital inputs and outputs, and balanced or unbalanced line level analog inputs and outputs. It can be used for powering low impedance (4Ω/8Ω) speaker systems with a maximum power of 2 x 75 Watts, while bridging to a constant voltage (100V and 70V) is possible with a maximum output power of 150 Watts.
This amplifier can be controlled via RS-232, LAN and Web GUI. It also features built-in DSP for a vast range of AV installations.
- Dante 2 channel digital audio inputs, and outputs
- 2 channel balanced / unbalanced inputs, and outputs
- 4 Ω/ 8 Ω amplifier outputs: 150 watts single channel, 75 watts two channel
- 70V / 100V amplifier outputs: 150 watts
- Independent input gains, outputs EQ, and volume control
- 48KHz sampling rate, 24-bit A/D and D/A converters
- Third party control via RS-232 and LAN
- On board DSP
- 1U half width rack mount size, mounts included
Performance.
| Dante Audio | 2 channel inputs, 2 channel outputs | PCM 44.1K - 96KHz 16 / 24 bit |
| Analog Audio | 2 channel balanced / unbalanced inputs | 2 channel balanced / unbalanced outputs |
| Amplifier Type | Class D |
| Output Power | 2 x 75W @ 4Ω / 8Ω | 1 x 150W @ 8Ω (bridged) | 1 x 150W @ 70V / 100V |
| Input Sensitivity | 0.775V 0dBu |
| Maximum Voltage Gain | 27 30dB SE / 39 - 42dB BTL |
| Frequency Response | 20Hz - 20KHz @ +/- 3dB |
| Signal to Noise Ratio | 87dB, 20Hz - 10KHz |
| THD+N | (1KHz @ 1W) 0.04% |
| ESD Protection | Human Body Model: +/- 8kV air-gap, +/- 4kV Contact |

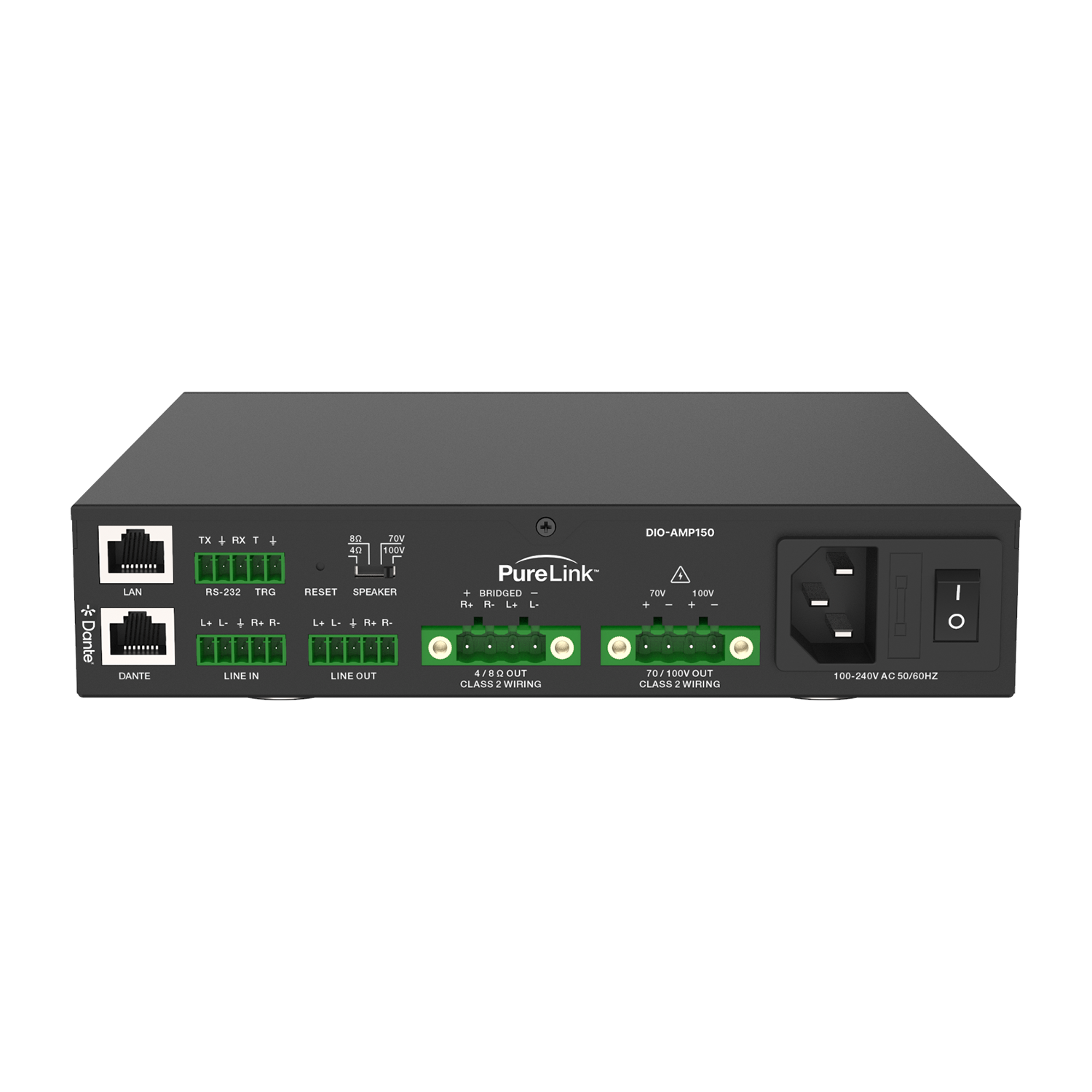

Connections.
| Control Ports | 1 x RJ45 LAN, 1 x 5 pin mini phoenix RS-232 |
| Dante | 1 x RJ45 |
| Audio IO | 1 x 5 pin mini phoenix - balanced / unbalanced analog 2 channel input, 1 x 5 pin mini phoenix - balanced / unbalanced analog 2 channel output |
| Power Amp | 1 x 4 pin phoenix 4Ω / 8Ω out, 1 x 4 pin phoenix 70V / 100V out |
Software
| Software | Built in Web UI - IO / DSP sekngs and diagnos^cs |
Power
| Power Supply | DC Input: AC100 - 240V 50/60Hz |
| Power Consumption | 75W |
Environmental
| Operating Temperature | 32°F - 104°F (0°C - 40°C) |
| Storage Temperature | -4°F - 140°F (-20°C - 60°C) |
| Relative Humidity | 20% - 90% RH (non-condensing) |
Enclosure
| Product Dimensions | 9.45in x 8.27in x 1.73in (240mm × 210mm × 44mm) |
| Product Weight | 4.14lbs (1.88kg) |
Warranty
| Warranty | 5-Years |
