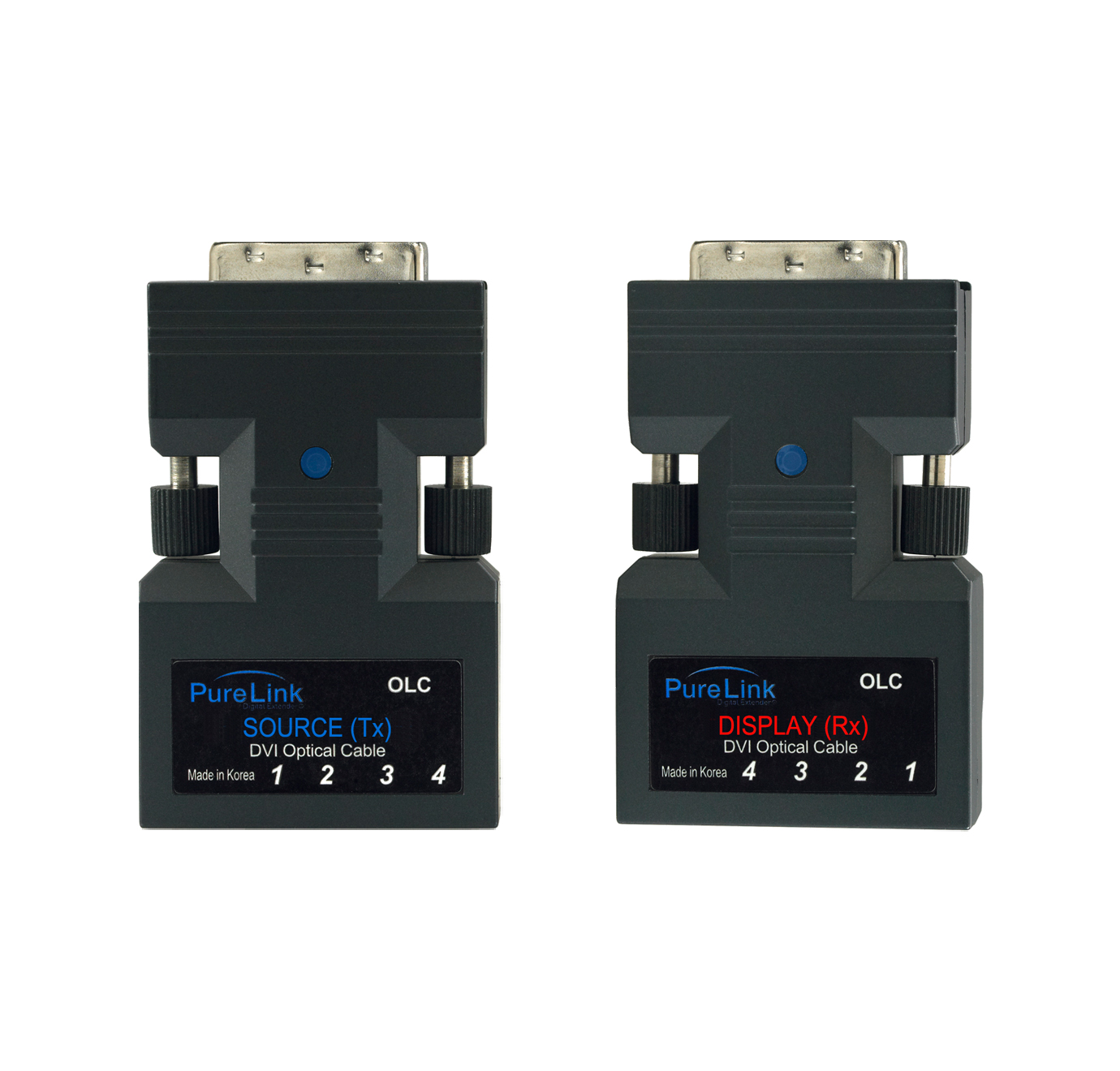

DVI to 4 LC Fiber Extension System
SKU: OLC Tx/Rx- Supports resolutions up to 1080p@60Hz
- Supports distances up to 1,650 ft. (over 4-strand Multi-Mode Fiber)
- DVI 1.0 compliant
- Virtual DDC and Auto-EDID programming
- Detachable Tx/Rx modules
PureLink’s OLC Tx/Rx DVI Pure Fiber Optic Extension Modules extend 1080p HD content up to 1650 feet over 4 strand multi-mode cable. Featuring PureLink’s unique Auto-EDID feature, a separate DDC connection is no longer necessary. This simplifies cable management and ensures rapid communications between devices.
Individual units also available: OLC Transmitter and OLC Receiver
- Supports resolutions up to 1080p@60Hz
- Supports distances up to 1,650 ft. (over 4-strand Multi-Mode Fiber)
- DVI 1.0 compliant
- Virtual DDC and Auto-EDID programming
- Detachable Tx/Rx modules
Hardware
| Input Signal Type(s) |
TX: Single Link Male DVI-D RX: (4) Female LC connectors |
| Output Signal Type(s) |
TX: (4) Female LC connectors RX: Single Link Male DVI-D |
Performance
| Supported Distance | Up to 1650 ft (500m) |
| Supported Resolutions | 1920 x 1200 / 1080p @60Hz (up to 1,650ft) |
| Compliance | DVI 1.0 |
| Power Consumption | 1 watt |
| Power Supply | 5VDC, 1A, 5 watts(max) |
| Operating Temperature | 32° ~ 117° F (0° to 47° C) |
| Storage Temperature | - 40° ~ 158° F (-40° to 70° C) |
| Relative Humidity | 0 ~ 90% non-condensing |
| MTBF | 50,000 hours |
| Rack Mounting Option | - |
Enclosure
| Rack Mounting Option | - |
| Product Dimensions | 1.6” (W) x 0.4” (H) x 2.7” (D) |
| Product Weight | 0.33 lbs |
Warranty
| Warranty | Limited Warranty (3-Years) |
