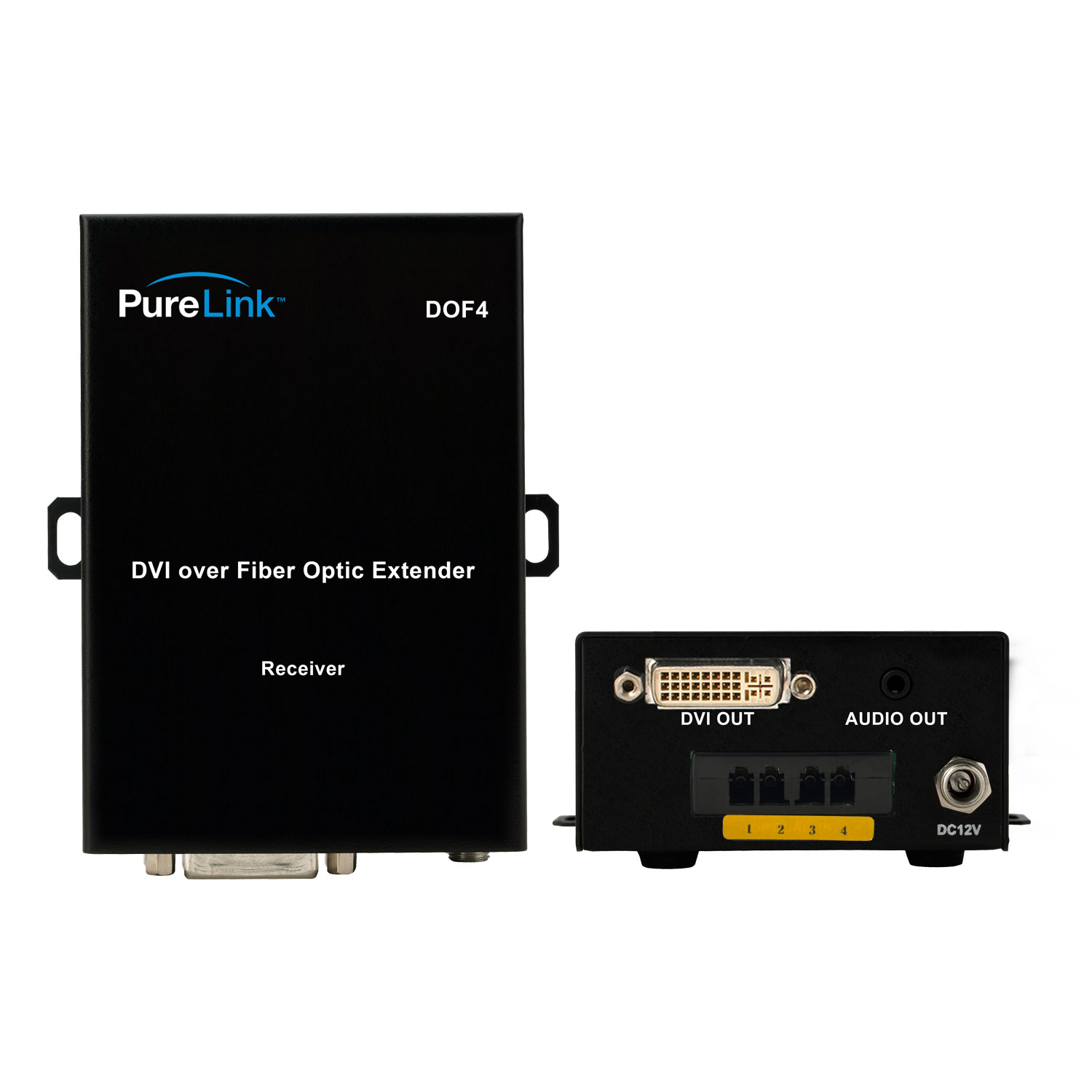

DVI to 4LC Fiber Extender – Receiver
This product has been discontinued.
You may be interested in:
2LC Fiber to DVI Extender – Receiver- DVI + Analog Audio to 4 LC Fiber receiver
- Supports resolutions up to 1920×1200 @ 60Hz, 1080p @ 60Hz
- 3.5mm stereo audio input
- Auto-EDID management
- HDCP Compliant
The HDTools™ DOF4 Tx/Rx extension system offers reliable extension of uncompressed HD video and analog stereo audio to distances up to 5000 ft. (1,530 meters) over multimode fiber. The DOF4 Tx/Rx can be used for simple point-to-point applications, or in combination with HDTools™ distribution amplifiers and switchers to deliver a flexible, seamless solution for long distance signal transmission.
- DVI + Analog Audio to 4 LC Fiber receiver
- Supports resolutions up to 1920×1200 @ 60Hz, 1080p @ 60Hz
- 3.5mm stereo audio input
- Auto-EDID management
- HDCP Compliant
- Rack mountable option
Performance
| Supported Resolutions | Up to 1920 x 1200 / 1080p @ 60Hz single link (up to 5,000ft) |
| Power Supply | This specific product will be powered by RF6 main frame (12V 3A, 14 watts max) |
| Operating Temperature | 32° ~ 117° F (0° to 47° C) |
| Storage Temperature | - 40° ~ 158° F (-40° to 70° C) |
| Relative Humidity | 0 ~ 90% non-condensing |
| MTBF | 50,000 hours |
| Rack Mounting Option | Standard 19 inch rack-mountable design |
Connections
| Connector Type(s) | 4 Female LC connectors |
Enclosure
| Rack Mounting Option | Standard 19 inch rack-mountable design |
Warranty
| Warranty | Limited Warranty (3-Years) |
