Introducing the new 4K Collaboration Hub with multiview and support for virtually any type of source making huddling and collaborating simple. Easily connect and show up to 8 devices simultaneously including iPhones, iPads, Android phones, Windows or Mac laptops, and local sources such as HDMI, USB-C and VGA. Connect over WiFi, wireless dongle, or direct connection.  It’s that simple, not a lot of conversation needed, just get up and running.

Alongside any of our products is PureLink’s industry famous technical support to assist you along with way if needed.

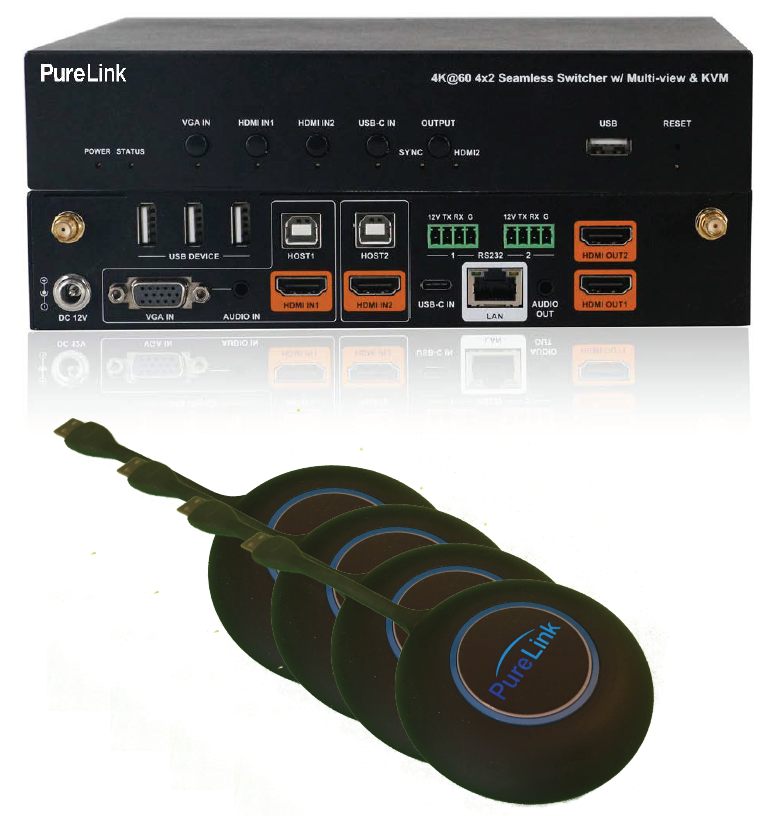

The Collabora 8 4K  Multiviewer provides easy display of up to eight sources simultaneously, including Apple Airplay (iPhone, iPad), Google Miracast (Android phones, Chrome devices), USB dongle (Windows, Mac laptops), along with two HDMI inputs, one USB-C input, and one VGA input.

Work and collaborate with others easily. The Collabora 8 4K is an excellent fit for:

  • Huddle Rooms
  • Conference Rooms
  • Presentation
  • House of Worship
  • Higher Education

huddle room, huddle space, collaboration, multiviewer, byod, bring your own device, 4K multiviewer, clickshare, wireless presentation

Key Features
    • Up to 8 sources displayed simultaneously
    • BYOD wireless connectivity:   Apple Airplay, Google Miracast, USB dongle inputs
    • 2x HDMI inputs, USB-C, VGA inputs
    • Quick and Easy setup and operation
    • Connect up to 4 USB Dongles (Dongles optional)
    • 4K30 input capability (HDMI and USB-C)
    • Seamless switching
    • USB switching
    • 4K60 (HDMI 1) and 1080P60 (HDMI 2) outputs
    • Quick and Easy setup and operation
    • Layouts controllable via front panel, RS-232/LAN from 3rd party controller
General Specifications
Input - Wired VGA up to 1080P60, HDMI 1 and 2 ,up to 4K30, USB-C up to 4K30
Inputs - Wireless Apple Airplay, Android Miracast, USB Dongle for Windows/Mac (up to 4)
Network 1x 1G RJ45: WiFi 802.11 a/b/g/n/ac
Control Front panel buttons, Web UI and LAN API
Output HDMI 1: 4K60, HDMI 2: 1080P60, 1x 3.5mm analog stereo
Diagnostics Front Panel LEDs, Web UI, API
USB 3x USB A, 2x USB B
Security WEP, TKIP, AES, WPA, WPA2
Power Supply Captive 12VDC, 100-240VAC 50/60Hz power adapter included, 20W max draw
Operating Temperature 0 to 45 C operating, -20 to 70 C storage, 10 to 90 % non condensing
Enclosure
Product Dimensions 215mm x 42mm x 140.2mm, 1.0kg
Product Weight 7.7 lbs (3.5 kg)
Warranty
Warranty Limited Warranty (3-Years)
