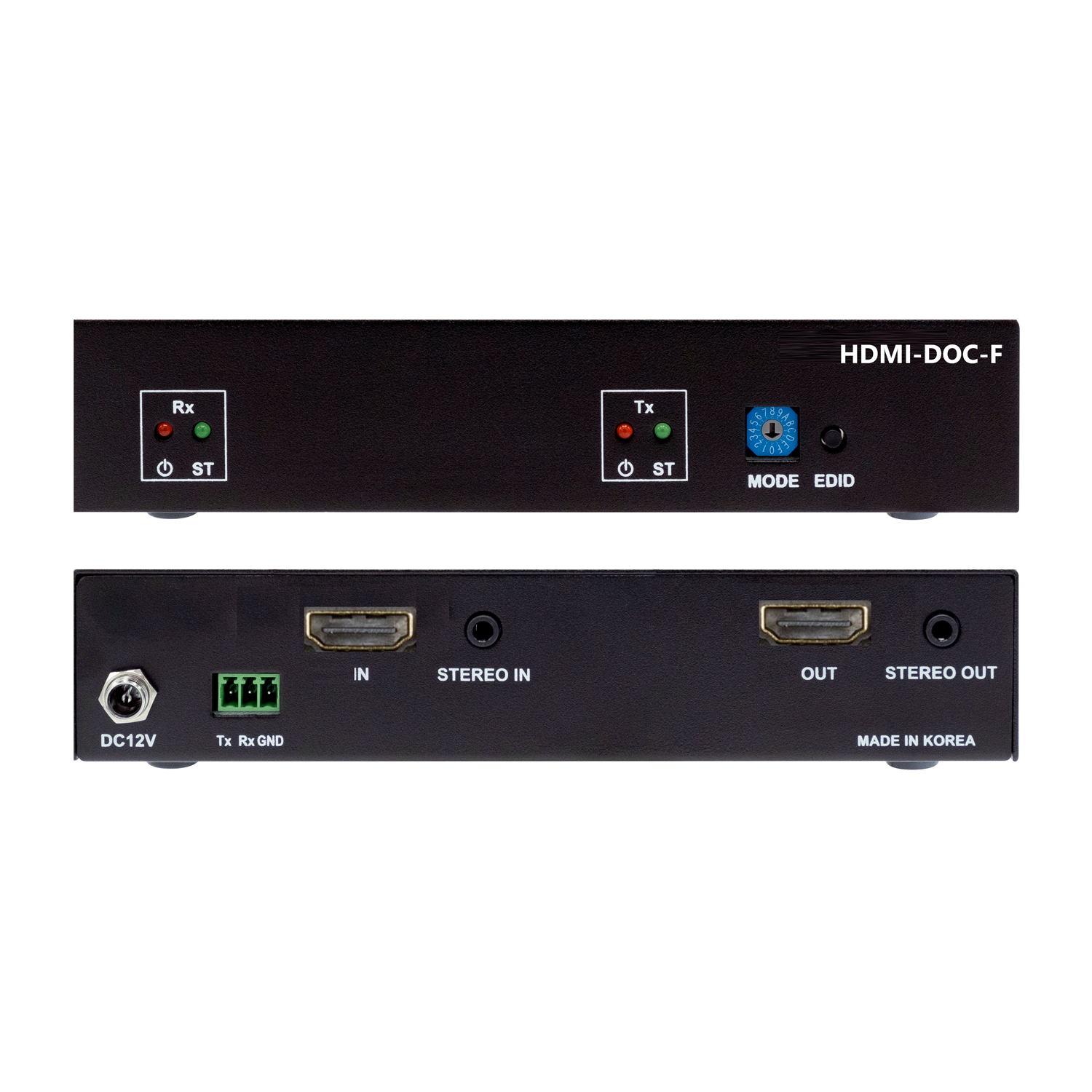

Fiber Optic Digital Signal Isolator
SKU: HDMI-DOC-F- HDMI + 3.5mm Stereo Audio Signal Isolator with Pixel Re-Clocking
- Pure Fiber Optic Interconnection to prevent any possible harmonic resonance
- Instant Signal On/Off control for high security environments
- Plug and Play
- Fully compatible with HDMI standard
The HDMI-DOC-F is the perfect kill switch and isolation solution for mission critical applications, using fiber-optical signal transmission. An RS-232 serial command will instantly isolate or restore both HDMI and analog stereo signal transmissions.
- HDMI + 3.5mm Stereo Audio Signal Isolator with Pixel Re-Clocking
- Pure Fiber Optic Interconnection to prevent any possible harmonic resonance
- Instant Signal On/Off control for high security environments
- Plug and Play
- Fully compatible with HDMI standard
- TAA Compliant
Hardware.
| Input Signal Type(s) | HDMI up to 4K60 4:4:4, 3.5mm Analog Stereo Audio |
| Output Signal Type(s) | HDMI up to 4K60 4:4:4, 3.5mm Analog Stereo Audio |
Performance
| Supported Resolutions | VGA (640x480) to UHDTV (3840 x 2160) |
| Power Consumption | 36W Max |
| Power Supply | DC 12V, 3.0A |
Connections.
| Connector Type(s) | Input: 19 PIN HDMI Connector | Output: 19 PIN HDMI Connector | Audio:3.5mm Stereo Jack | Power: 2mm DC Connector | RS-232: 3 PIN Phoenix Connector |
Power
| Power Supply | DC 12V 5A, 20W |
Enclosure
| Product Dimensions | 6.88 x 4.5 x 1.0 in. (174.63 x 114.3 x 25.4 mm) |
| Product weight | 0.8 lbs (0.36 kg) |
Warranty
| Warranty | 5-Years |
