[Discontinued] HDBaseT Receiver for HTX Series
This product has been discontinued.
- Supports distances up to 330 ft. (100m)
- HDMI v1.4b uncompressed video/audio up to 10.2 Gbps
- Receives PoE from HTX-8800/4400 matrix switchers
- Bi-directional IR and RS232
- LED indicators for HDMI and HDBaseT signal status

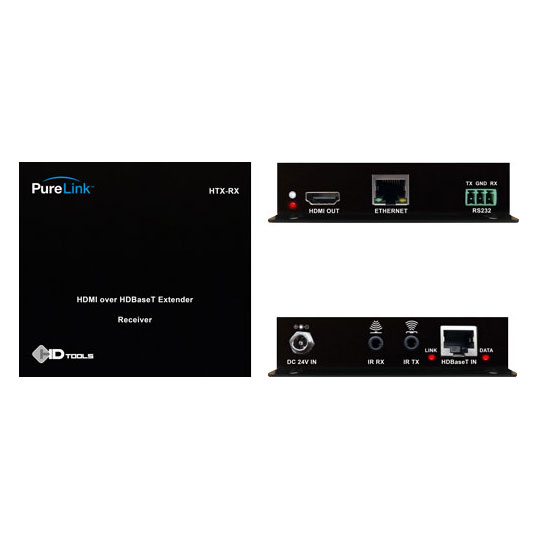

Designed as a simplified extension solution for the HTX-8800-U/4400-U matrix switchers , the HTX Rx 4K HDMI over HDBaseT Extender Receiver provides an accessible, easy-to-install solution for extending Ultra HD/4K HDMI video and embedded audio over long distances using a single CATx cable. The HTX Rx supports full 3D content and extends uncompressed HDMI video and embedded lossless audio formats with bi-directional control signals (IR) up to 330 ft. at Ultra HD/4K resolutions. Using POE technology, the HTX Rx can draw power from the HTX matrix chassis, eliminating the need for additional power supplies.
- Supports distances up to 330 ft. (100m)
- HDMI v1.4b uncompressed video/audio up to 10.2 Gbps
- Receives PoE from HTX-8800/4400 matrix switchers
- Bi-directional IR and RS232
- LED indicators for HDMI and HDBaseT signal status
- Supports HD multichannel audio including Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio plus LPCM (up to 192kHz)
- Compact enclosure enables discreet installation behind displays
- Ethernet port for easy third party device networking
Performance
| Supported Distance | up to 330 ft. |
| RS-232 | Yes |
| LAN | Yes |
| Power Supply | 100-240VAC 50/60Hz |
| Power Injection for CATx Extenders | Enabled |
| Operating Temperature | 32° ~ 117° F (0° to 47° C) |
| Storage Temperature | - 40° ~ 158° F (-40° to 70° C) |
| Relative Humidity | 0 ~ 90% non-condensing |
Enclosure
| Product Dimensions | 4” x 4” x 0.9” in. |
| Product Weight | 0.5 lbs. |
| Product Dimensions | 12.21 x 7.09 x 2.76 in. (310 x 180 x 70 mm) |
| Product Weight | 7.7 lbs (3.5 kg) |
Warranty
| Warranty | Limited Warranty (3-Years) |
