HDMI 2.0 Audio Extractor with Downmixing
SKU: HEXA pro- HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
- Video resolutions up to 4K2K@50/60Hz (YUV444)
- Extracts HDMI audio to multi-channel optical (SPDIF) or L/R analog audio
- HDMI Pass-through audio input to HDMI and optical audio output
- Supports bitstream audio down-mix to L/R analog output
The HEXA Pro extract audio signals from any HDMI compliant source to digital optical or analog stereo L/R audio outputs. For maximum flexibility, HEXA Pro audio extractor also supports bitstream audio down-mix to analog stereo output and keeps optical and HDMI out audio pass-through. Both input and output of HDMI supports video resolutions up to 4K2K@50/60Hz 4:4:4, 10bits HDR (High Dynamic Range) pass through, HDMI high resolution digital audio formats bypass, LPCM 2CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio, audio sampling rate up to 192 kHz. HDCP 2.2 and CEC bypass are supported.
- HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
- Video resolutions up to 4K2K@50/60Hz (YUV444)
- Extracts HDMI audio to multi-channel optical (SPDIF) or L/R analog audio
- HDMI Pass-through audio input to HDMI and optical audio output
- Supports bitstream audio down-mix to L/R analog output
- Optical audio supports LPCM 2CH, Dobly Digital 2/5.1CH, DTS 2/5.1CH
- Supports HDMI High Bit Rate(HBR) audio pass through
- Audio sample rates up to 96kHz
- 10bits HDR (High Dynamic Range) pass through
- Supports CEC pass-through
Hardware
| Output Signal Type(s) | Configurable via PureMedia™ universal output cards supporting HDMI, HDBaseT, Fiber, and 3G-SDI |
Performance
| Supported Resolutions | up to 4K2K@50/60Hz(YUV4:4:4),4K2K@30Hz,1080P@120Hz, and 1080P 3D@60Hz |
| HDCP Compliance | HDCP 2.2 and HDCP 1.4 |
| Compliance | HDMI 2.0b |
| Video Bandwidth | 18 Gbps |
| Color Space | RGB/YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth | 10-bit, 12-bit |
| Supported HDMI Audio Formats | LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
| OPTICAL AUDIOFORMATS(PASS-THROUGH) | LPCM 2CH,LPCM 5.1,Dolby Digital 2/5.1CH, DTS2/5.1CH |
| L/R AUDIO FORMATS | Analog Stereo 2CH |
| ESD Protection | Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) |
| Power Consumption | 1.25W(Max) |
| Power Supply |
Input: AC100 - 240V 50/60Hz Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified) |
| Operating Temperature | 32 - 104°F / 0 - 40°C |
| Storage Temperature | -4 - 140°F / -20 - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
| MTBF | 50,000 hours |
| Rack Mounting Option | - |
Connections

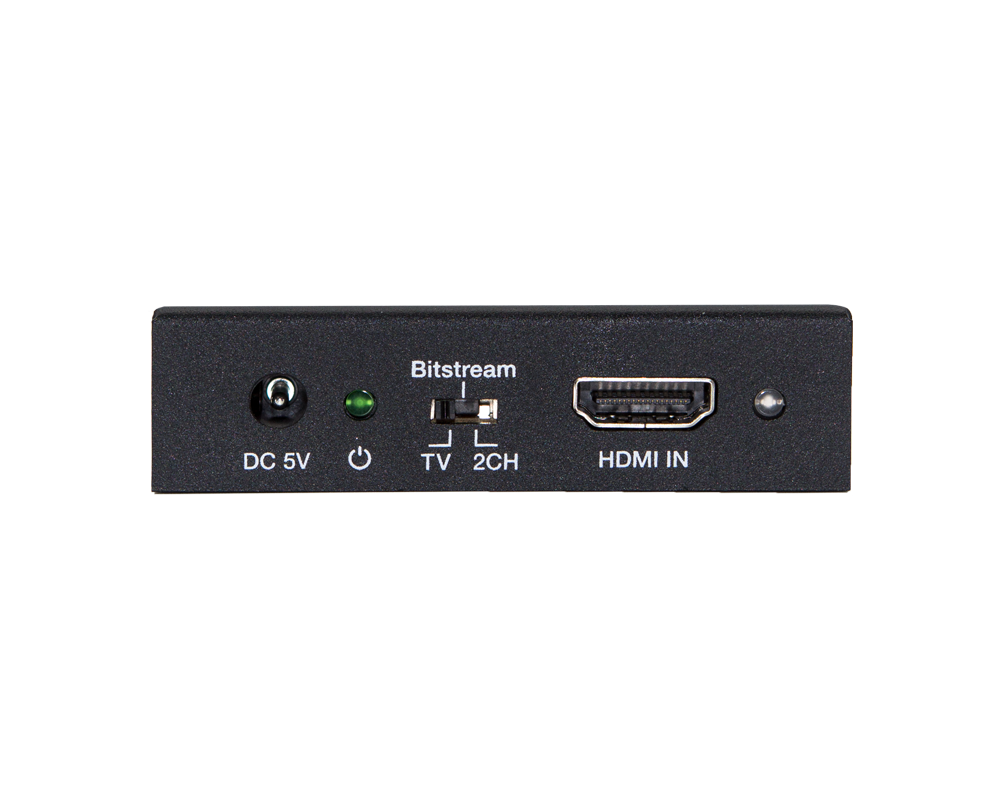

| Input Type(s) | 1x HDMI Type A [19-pin female] |

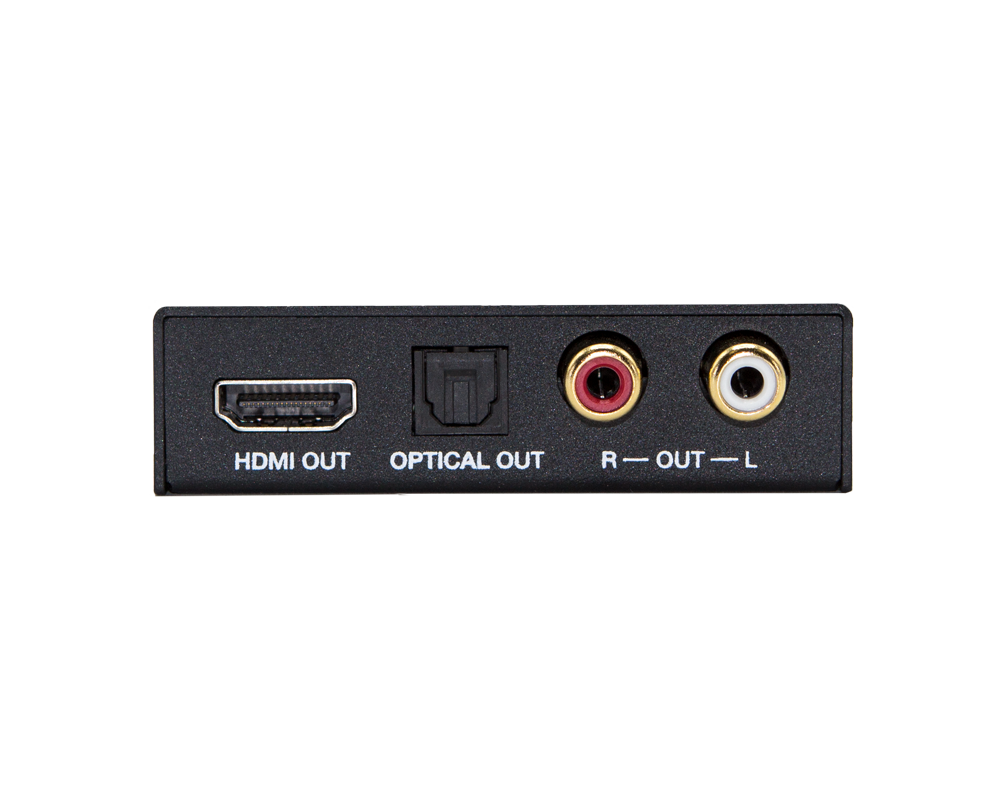

| Output Type(s) |
1x HDMI Type A [19-pin female] 1x L/R AudioOut [RCA] 1x Optical Out [S/PDIF] |
Enclosure
| Enclosure Type | Metal |
| Rack Mounting Option | - |
| Product Dimensions | 2.9 x 2.4 x 0.8 (73.5mm x 60.7mm x 20mm) |
| Product Weight | 0.3 lbs (135g) |
| PRODUCT DIMENSIONS | 12.21 x 7.09 x 2.76 in. (310 x 180 x 70 mm) |
| Product Weight | 7.7 lbs (3.5 kg) |
Warranty
| Warranty | Limited Warranty (3-Years) |
