HDMI 2.1 over Detachable Fiber Cable
SKU: EZH8-DT- Up to 100m (328 ft.) transmission
- 7680×4320 (8K) @ 60 Hz 4:4:4 resolutions
- Data transfer rates up to 48 Gbps bandwidth with 4Kp50/60/100/120 and 8Kp50/60
- HDMI 2.1, backward compatible with HDMI 2.0/HDMI 1.4
- HDCP 2.3, CEC

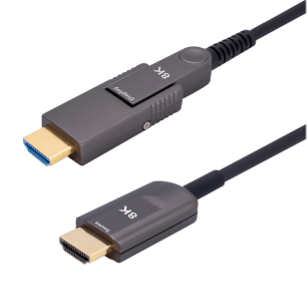

The HDTools™ EZH8-DT HDMI 2.1 over Fiber Cable transmits full 8K/60 (4:4:4) and HDCP 2.3 content @ 48 Gbps up to 100m (328 ft.), suited for critical and versatile installations. Light weight and flexible with an ultra-small long-term bending radium (45mm), and featuring fully detachable HDMI Tx/Rx connectors, the EZH8-DT delivers ultimate convenience and manageability.
Applications
- Corporate AV Systems
- Indoor/Outdoor Digital Signage
- Home Theater
- Security
- Up to 100m (328 ft.) transmission
- 7680×4320 (8K) @ 60 Hz 4:4:4 resolutions
- Data transfer rates up to 48 Gbps bandwidth with 4Kp50/60/100/120 and 8Kp50/60
- HDMI 2.1, backward compatible with HDMI 2.0/HDMI 1.4
- HDCP 2.3, CEC
- Dynamic HDR, HEC & eArc
- Detachable Tx/Rx connectors
- Self-detecting EDID
- Plug-and-Play (external power not required)
Performance
| Supported Distance | 8K@50/60Hz (4:4:4) up to 100m (328 ft.), 4K@50/60/100/120, 1080p/1080i/720p/480p deep color |
| Compliance | HDMI 2.1/2.0/1.4, HDCP 2.3/2.2/1.4, CEC |
| Data Transfer Rate | 48 Gbps |
| HDR Support | Yes |
| Power Consumption | 250mW (max) |
| Power Supply | 4.5-5.5 V |
| Operating Temperature | 32° – 122° F (0° – 50° C) |
| Storage Temperature | -40° ~ 158° F (-40° to 70° C) |
| Relative Humidity | 10% - 80% RH |
Warranty
| Warranty | Limited Warranty (3-Years) |
