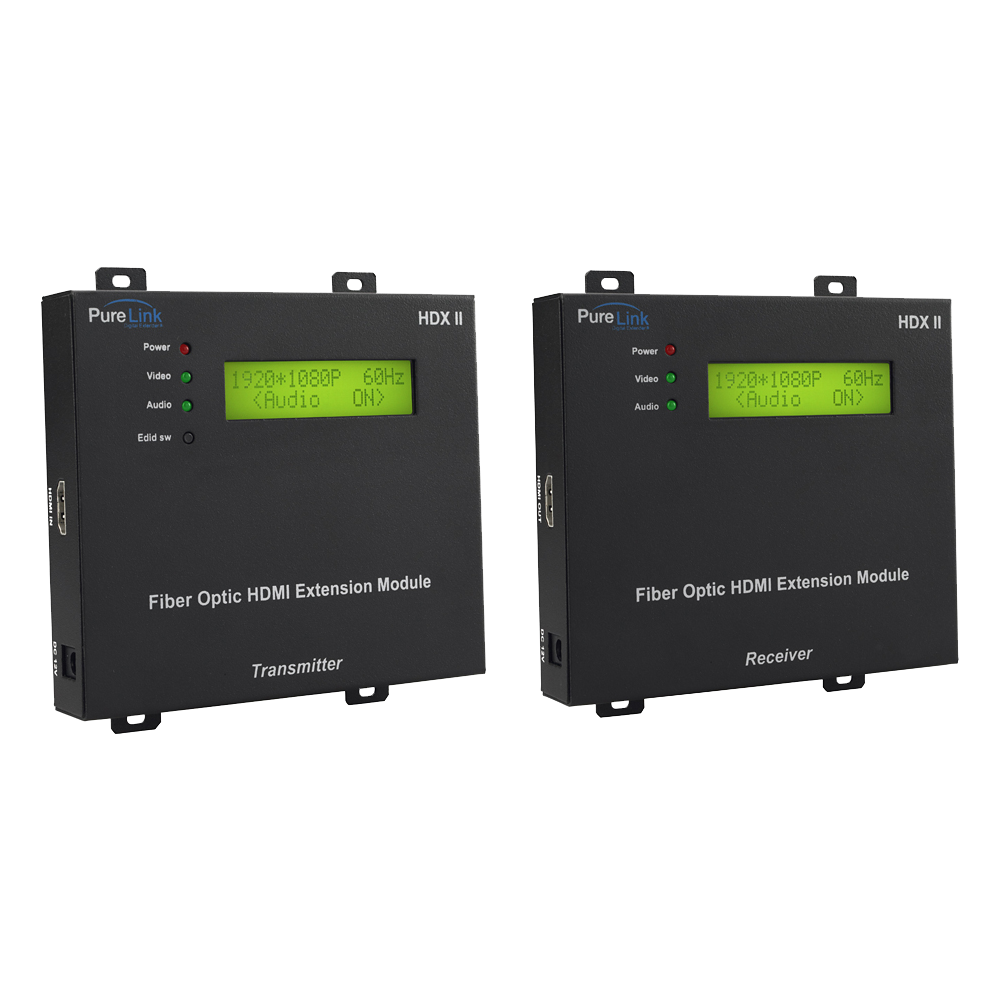

The HDX II Tx/Rx HDMI over Fiber Extension System provides long distance transmission of Full HD/1080p signals to distances up to 5,000 ft. The HDX II Tx/Rx features on-screen diagnostics at each end via the built-in LED display, as well as powerful Auto-EDID management allowing reliable signal extension with full HDCP compliance.

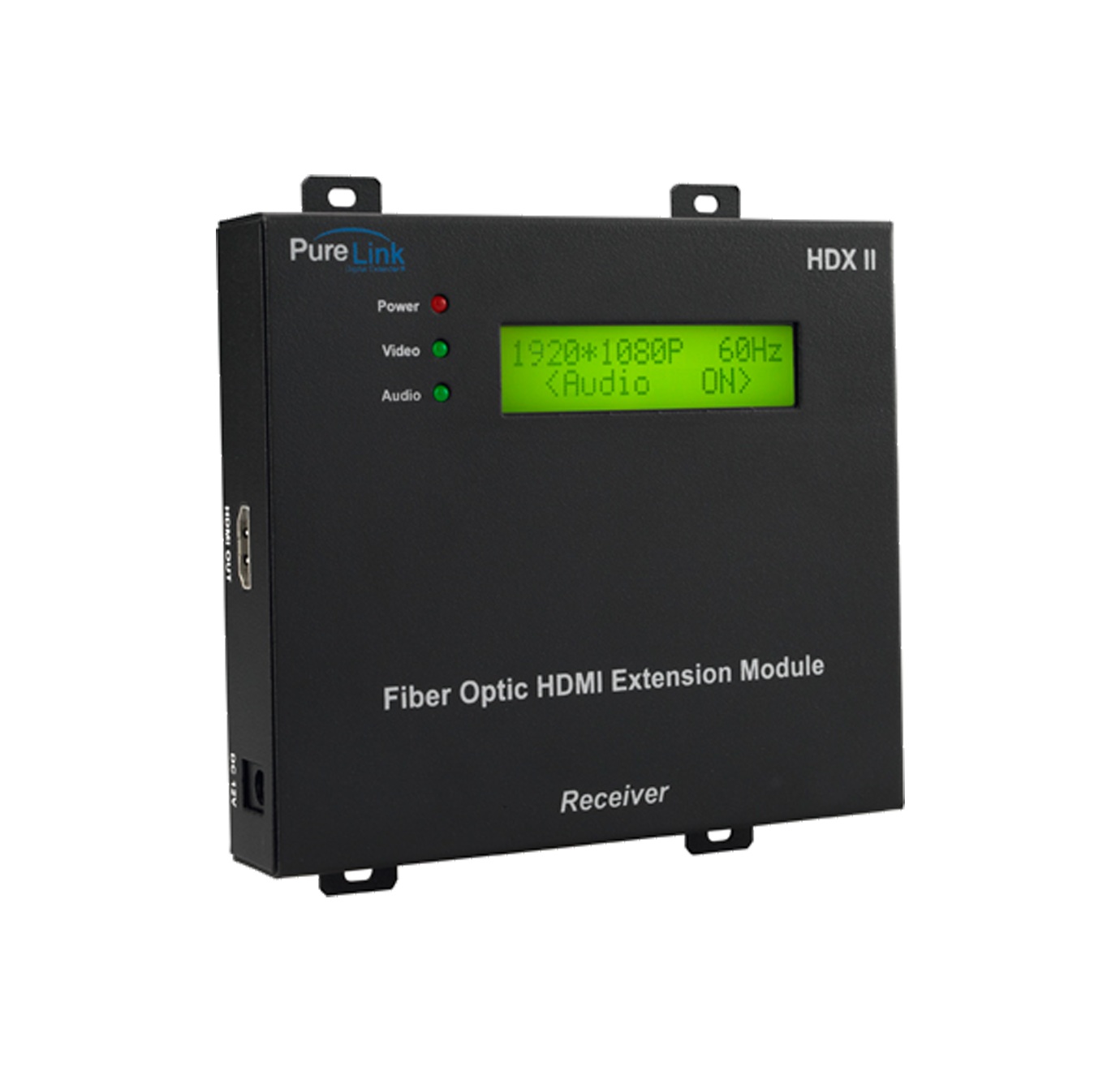

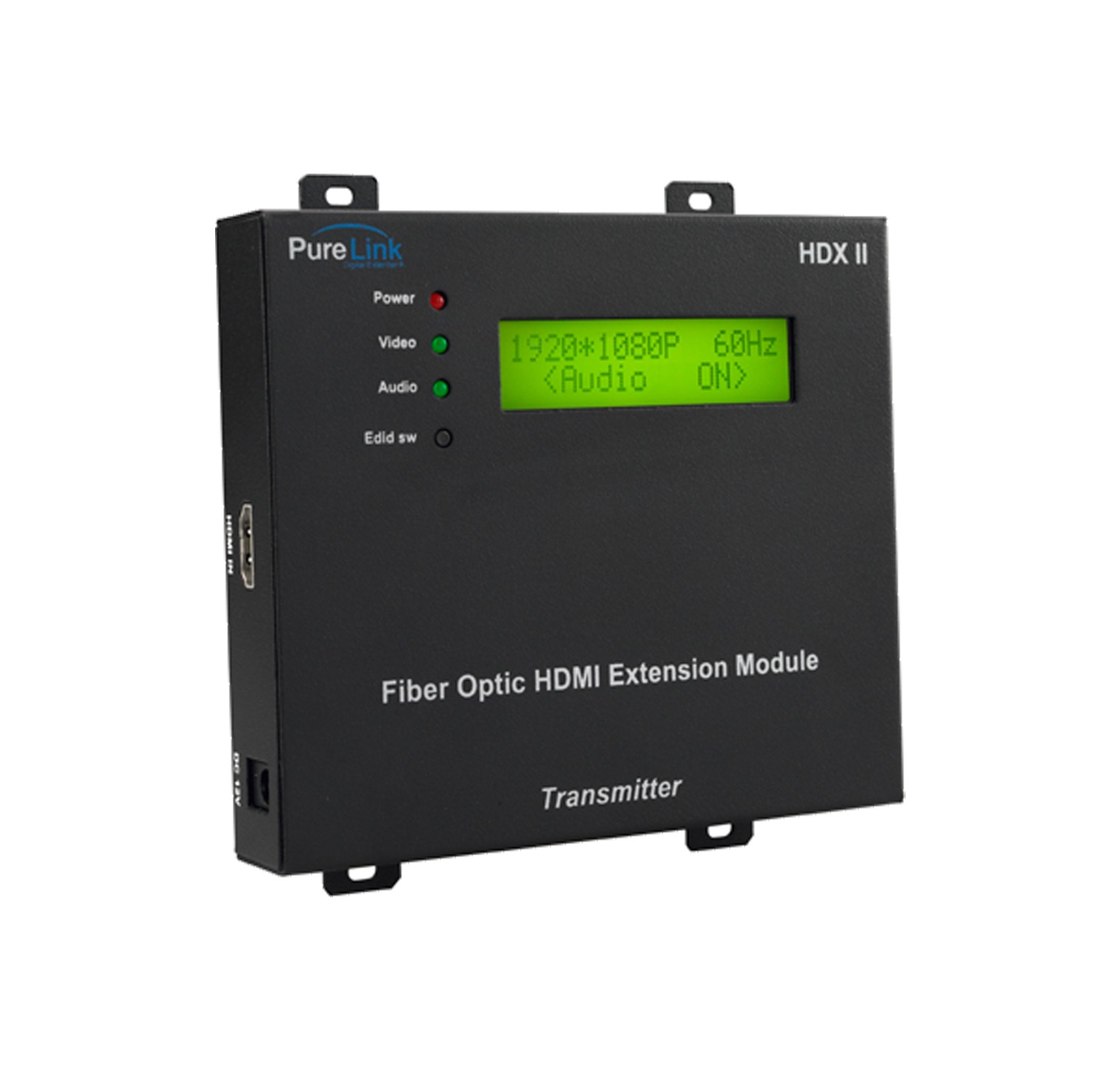

Individual units also available: HDX II Transmitter and HDX II Receiver
Input Signal Type(s) |
TX: HDMI 19 Pin Female RX: LC Receptacles with 4 cores |
Output Signal Type(s) |
TX: LC Receptacles with 4 cores RX: HDMI 19 Pin Female |
Supported Distance | VGA ~WUXGA(up to 1920 x 1200 @ 60Hz) , 480i ~ 1080p |
Video Bandwidth | 10.2 Gbps |
Compliance | HDMI 1.3, HDCP 1.3 |
Power Consumption | 10W Max |
Power Supply | DC +12V |
Operating Temperature | 32° ~ 117° F (0° to 47° C) |
Storage Temperature | - 40° ~ 158° F (-40° to 70° C) |
Relative Humidity | 0 ~ 90% non-condensing |
MTBF | 50,000 hours |
Rack Mounting Option | Standard 19 inch rack-mountable design |
Rack Mounting Option | Standard 19 inch rack-mountable design |
Product Dimensions | 5.36x4.65x0.99 inches (136x118x25 mm) |
Product Weight | 1.1Lbs(0.48Kg) |
Warranty | Limited Warranty (3-Years) |
