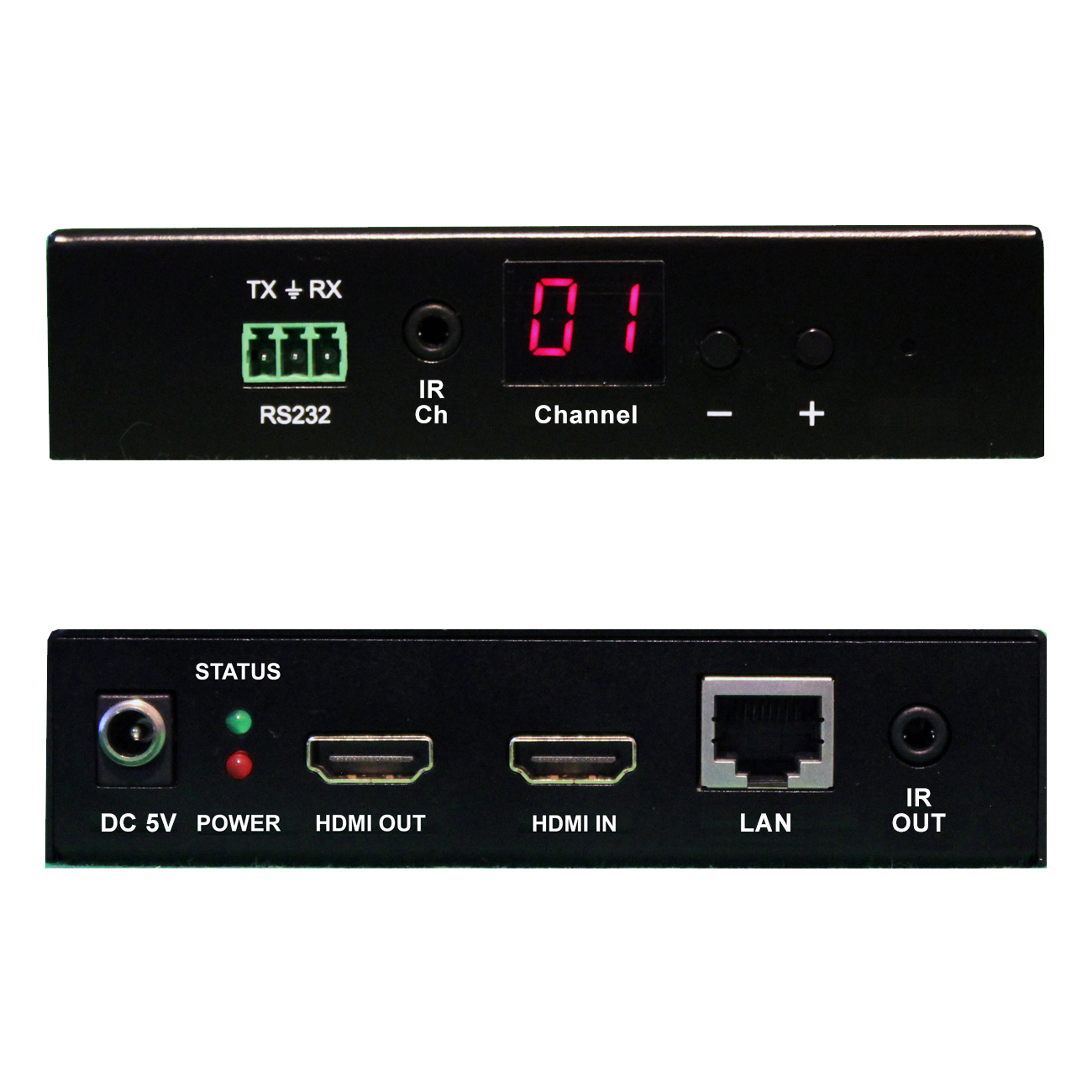

HDMI over IP Transmitter (Encoder) with PoE
SKU: VIP-100-II-E- Support resolutions up to Full HD/1080p
- LED channel display
- Front panel channel plus/minus buttons
- IR remote control for familiar channel selection
- PoE (Power over Ethernet) – power encoders/decoders from 802.3af PoE network switches
The VIP-100 II HDMI over IP distribution system provides video, audio, RS-232, and IR extension, distribution and matrix switching capabilities. Transmitter (encoder) and receiver (decoder) modules can be connected together for point-to-point extension over distances up to 394 ft. (120 m), as well as a point-to-many, many to point, and matrix connections providing up to a 64×190 matrix switching system, or even a 64 x 65K system based on Class B networks.
- Support resolutions up to Full HD/1080p
- LED channel display
- Front panel channel plus/minus buttons
- IR remote control for familiar channel selection
- PoE (Power over Ethernet) – power encoders/decoders from 802.3af PoE network switches
- RS232 & IR extension/distribution
- HDMI Loop out on Transmitter
- HDCP compliant
- Point-to-point or matrix system:
– up to 64 x 190 matrix (hardware) on Class C networks
– up to 64x 65K on Class B networks
Performance
| Supported Distance | 120 m / 390 ft. |
| Supported Resolutions | Up to1080p / 1920x1080 |
| Power Supply | 100-240VAC 50/60Hz |
| Operating Temperature | 32° ~ 117° F (0° to 47° C) |
| Storage Temperature | - 40° ~ 158° F (-40° to 70° C) |
| Relative Humidity | 0 ~ 90% non-condensing |
| MTBF | 50,000 hours |
Warranty
| Warranty | Limited Warranty (3-Years) |
