The VIP-NET-M3200 is a video over IP purpose-built high-performance L2+Ethernet switch w/ PoE+ 802.3af/at per port 30W and provides L2+ wire speed and management functions. With the flexibility of modular slots supporting up to 32 ports, the VIP-NET-M3200 can be populated with 10G RJ45 modules with PoE, SFP+ modules, and 40G QSFP+ modules. The VIIP-NET-M3200 delivers ITU G.8032 ring recovery in less than 20ms. With QoS, IGMP v1/v2/v3, and Jumbo Frame, the VIP-NET-M3200 provides smooth and reliable video over IP transport. Security functions including L2/L3 ingress and egress ACL, port-based DHCP server, and MAC-based DHCP server. Also supported is 802.3ad LACP, LLDP and CDP (Cisco Discovery Protocol) for network scanning.
201-488-3232
L2+ Modular 1G/10G/40G Video over IP Switch with PoE+, TAA-compliant
SKU: VIP-NET-M3200- Maximum 32x10G or 24x10G+2x40G
- Port-based IEEE802.1X authentication
- SNMPv1/v2c/v3 for different levels of network management
- Support LLDP and CDP for network discovery protocols
- Redundant dual AC input power 100V to 240V
Modular Slots

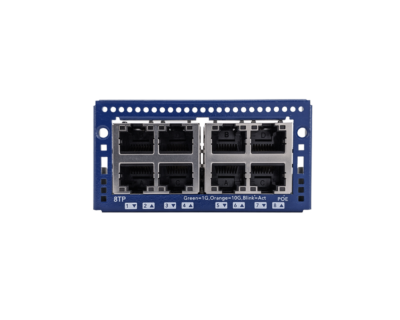

8x 10G RJ45 module w PoE
VIP-NET-M3200-8RJ45P-10G
(8) 10G RJ45 ports each with 802.3at/af support, PD detection, scheduling, health tracking, front panel LED, web UI, and API diagnostics

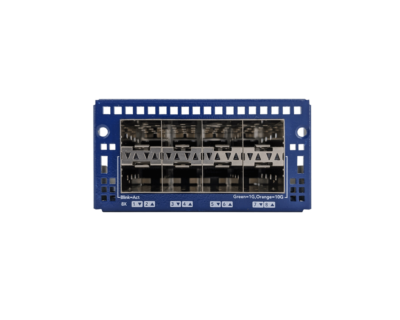

8x 10G SFP+ fiber module
VIP-NET-M3200-8SFP+10G
(8) 10G SFP+ slot ports with auto insertion detection

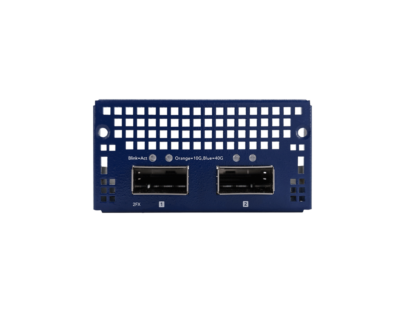

2x 40G QSFP+ fiber module
VIP-NET-M3200-SFP+40G
(2) 40G QSFP+ slot ports with auto insertion detection
8x 1G RJ45 module w PoE
VIP-NET-M3200-SFP+40G
(8) 1G RJ45 ports each with 802.3at/af support, PD detection, scheduling, health tracking, front panel LED, web UI, and API diagnostics
- Maximum 32x10G or 24x10G+2x40G
- Port-based IEEE802.1X authentication
- SNMPv1/v2c/v3 for different levels of network management
- Support LLDP and CDP for network discovery protocols
- Redundant dual AC input power 100V to 240V
- Supports IEEE-1588 PTP V2 for precise time synchronization to o perate in Ordinary-Boundary**, Peer to
- Peer Transparent Clock**, End to End Transparent Clock**, Master/Slave mode by each port**
- RMON and MIB II for efficient network monitoring
- Intelligent Auto AV QoS
- IGMP snooping v1/v2/v3, IGMP query and IPv6 MLD snooping v1/v2 for AV network
- Support IEEE802.1Q VLAN, port based VLAN and GVRP
- MSTP up to 16 instances and backward compatible RSTP and STP
- Advanced PoE management functions, such as PD detection, schedu ling, and health tracking
- Enhanced ITU G.8032 ring protection. Recovery time less than 20 ms at max 250 switches for single ring
- WEB based management UI via HTTP/HTTPs. Also provide CLI, SSH, and telnet.
- QoS bandwidth control by 802.1p CoS (Class of service) and Di-S erv for ingress and egress, support addition track storm control
- Dynamic IEEE 802.3ad LACP link aggregation and static link aggregation
Hardware.
| STANDARDS | EEE 802.3 10Base-T Ethernet<br>IEEE 802.3u 100Base-TX Ethernet<br>IEEE 802.3z Gigabit Fiber<br>IEEE 802.3z Gigabit Fiber<br>IEEE 802.3ae 10G Ethernet over Fiber<br>IEEE 802.3an 10G Copper<br>IEEE 802.3x Flow Control Capability<br>ANSI/IEEE 802.3 Auto-negotiation<br>IEEE 802.1Q VLAN IEEE 802.1p Class of Service<br>IEEE 802.1X Access Control<br>IEEE 802.1D Spanning Tree<br>IEEE 802.1w Rapid Spanning Tree<br>IEEE 802.1s Multiple Spanning Tree<br>IEEE 802.3ad Link Aggregation Control Protocol (LACP)<br>IEEE 802.1AB Link Layer Discovery Protocol (LLDP)<br>IEEE 802.1x User Authentication (Radius)<br>IEEE 802.3 at/af PoE |
Performance
| Power Supply | 100-240VAC 50/60Hz |
| Operating Temperature | 32° ~ 117° F (0° to 47° C) |
| Storage Temperature | - 40° ~ 158° F (-40° to 70° C) |
| Relative Humidity | 0 ~ 90% non-condensing |
| MTBF | 50,000 hours |
Enclosure
| Product Dimensions | 12.21 x 7.09 x 2.76 in. (310 x 180 x 70 mm) |
| Product Weight | 7.7 lbs (3.5 kg) |
Warranty
| Warranty | Limited Warranty (3-Years) |
