Pro PTZ PoE Camera with 3G-SDI, HDMI, USB and H.264 / H.265 Streaming Outputs
SKU: VIP-CAM-200- NDI HX2 output for easy and reliable distribution of signal
- 20x High Performance Optical Zoom w 16x Digital Zoom (320x total zoom)
- Advanced PTZ (Pan-Tilt-Zoom) function for higher precision and reliability
- HDMI, 3G-SDI, USB 3.0 outputs
- H.264 or H.265 output codec selection
The VIP-CAM-200 is a professional grade 1080p60 camera with 20x optical zoom and 16x digital zoom for capturing best quality high definition. NDI has quickly become the desired new way of transport, and the VIP-CAM-200 answers this need with extremely simple, quick and easy connectivity. With additional support for HDMI, 3G-SDI, USB 3.0 and H.264 / H.265 Streaming Outputs of various formats, the VIP-CAM-200 is ideal for broadcast and distribution of high definition video signals in education, conferencing, live broadcast, security/surveillance and many other applications.
- NDI HX2 output for easy and reliable distribution of signal
- 20x High Performance Optical Zoom w 16x Digital Zoom (320x total zoom)
- Advanced PTZ (Pan-Tilt-Zoom) function for higher precision and reliability
- HDMI, 3G-SDI, USB 3.0 outputs
- H.264 or H.265 output codec selection
- RTSP, RTMP, RTMPS, ONVIF, TCP output formats
- VISCA PELCO and Infrared remote control (included)
Technical Specifications - Camera
| IMAGE SENSOR | 1/2.8” CMOS, 2.14MP |
| Effective Pixels | 1920 x 1080 |
| HD-SDI SIGNAL FORMATS | 3G-SDI 1920 x 1080 |
| SUPPORTED RESOLUTIONS |
1080p/60, 1080[/30, 1080i/60, 720p/60, 720p/30, 1080p/50, 1080p/25, 1080i/50, 720p/50, 720p/25 |
| FOCUS | Auto / Manual |
| FOV | 59.5 ~ 2.9 |
| IRIS | F1.6 - F3.5 |
| OPTICAL ZOOM | 20x |
| DIGITAL ZOOM | 16x |
| SHORTEST FOCUS DISTANCE | 10mm - 1.000mm |
| FIELD OF VIEW | 59.5° - 2.9° |
| MINIMUM ILLUMINATION | 0.5Lux (Color), 0.1Lux (B/W) |
| Exposure Control | Auto / Manual |
| SHUTTER SPEED | 1/50- 1/10,000s |
| AGC | Auto/Manual |
| WHITE BALANCE | Auto, Indoor, Outdoor, One Push, Manual, Auto Track |
| Image Effect | Image Flip |
| S/N Ratio | >/= 50dB |
| AE CONTROL | Auto, Manual, Shutter Priority, Iris Priority |
| TILT RANGE | -30° - +90° |
| TILT SPEED | 0.1° - 90°/s |
| WEIGHT | 1.2 kg |
| DISPLAY | DC 12V |
Pan & Tilt
| PAN RANGE | -170° - +170° |
| TILT RANGE | -30° - +90° |
| PAN SPEED | 0.1° - 120°/s |
| TILT SPEED | 0.1° - 90°/s |
| PRESET NUMBER | 256 |
| OSD | Avaliable |
| IMAGE FLIP | Enabled |
| VIDEO COMPRESSION | H.265, H.264 |
Network
| MAXIMUM IMAGE SIZE | 1920x1080 @60fps |
| VIDEO COMPRESSION | H.265, H.264 |
| AUIDO COMPRESSION | AAC |
| PROTOCOL | NDI HX, RTSP, RTMP, ONVIF |
| NETWORK SUPPORT | Dual Stream; up to (10) simultaneous users |

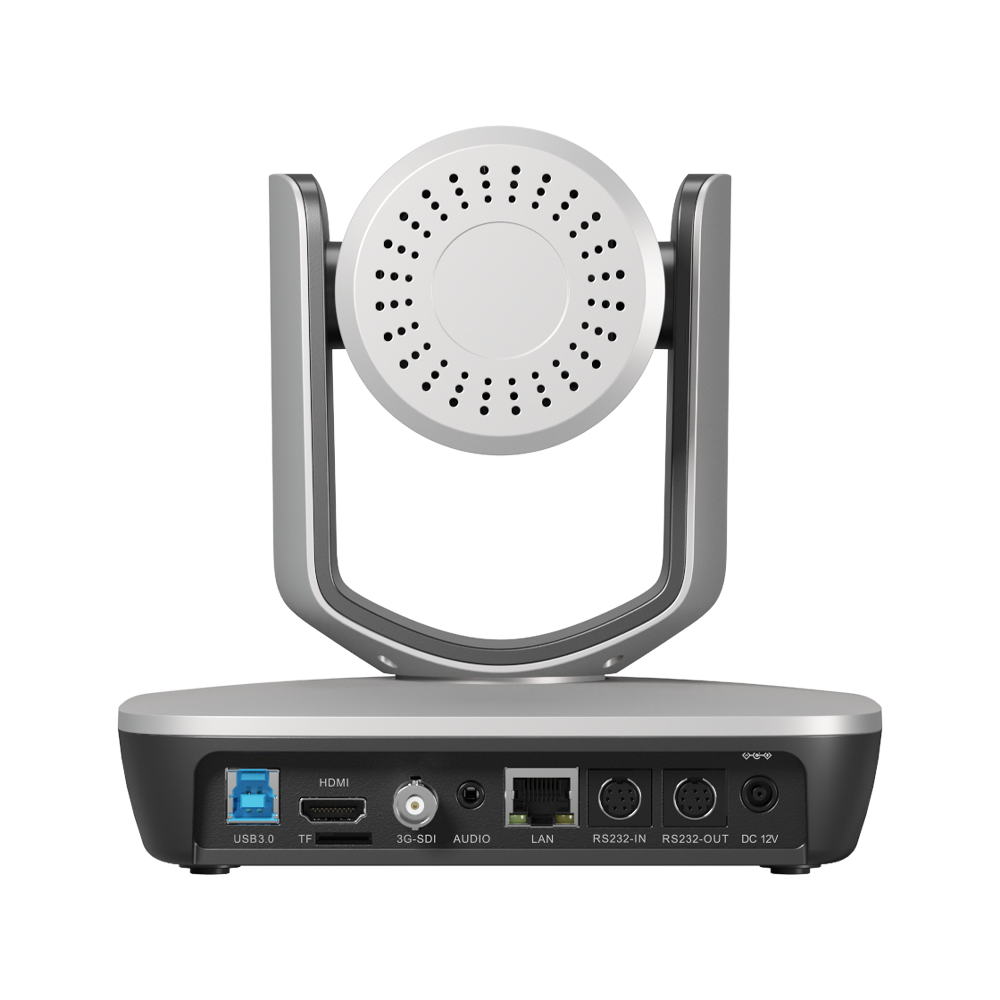

Interface
| ETHERNET | RJ45, 100M |
| VIDEO OUTPUT | NDI HX, HDMI, 3G-SDI, RTSP, RTMP |
| CONTROL INTERFACE | RS-232, IR, RS-485 |
General
| CONTROL PROTOCOL | VISCA and Daisy Chain Support, PELCO-P, PELCO-D |
| ADDRESS | 0 - 63 |
| DISPLAY | DC 12V |
| POWER CONSUMPTION | <15W |
| OPERATING TEMPERATURE | 0°C - 40°C |
| STORAGE TEMPERATURE | -°20C - 60°C |
| DIMENSIONS | 8.9” x 6.2” x 8.1” |
| ENCLOSURE | GRAY |
| WEIGHT | 1.2 kg |
Warranty
| Warranty | Limited Warranty (3-Years) |
