Quad-View HDMI Output Card for PureMedia™
SKU: PM-HOS4S-MV-U- Five layouts with Auto Aspect Adjustment
- Supports resolutions 4096 x 2160 30Hz
- Can output any (4) PureMedia inputs
- HDCP 2.0

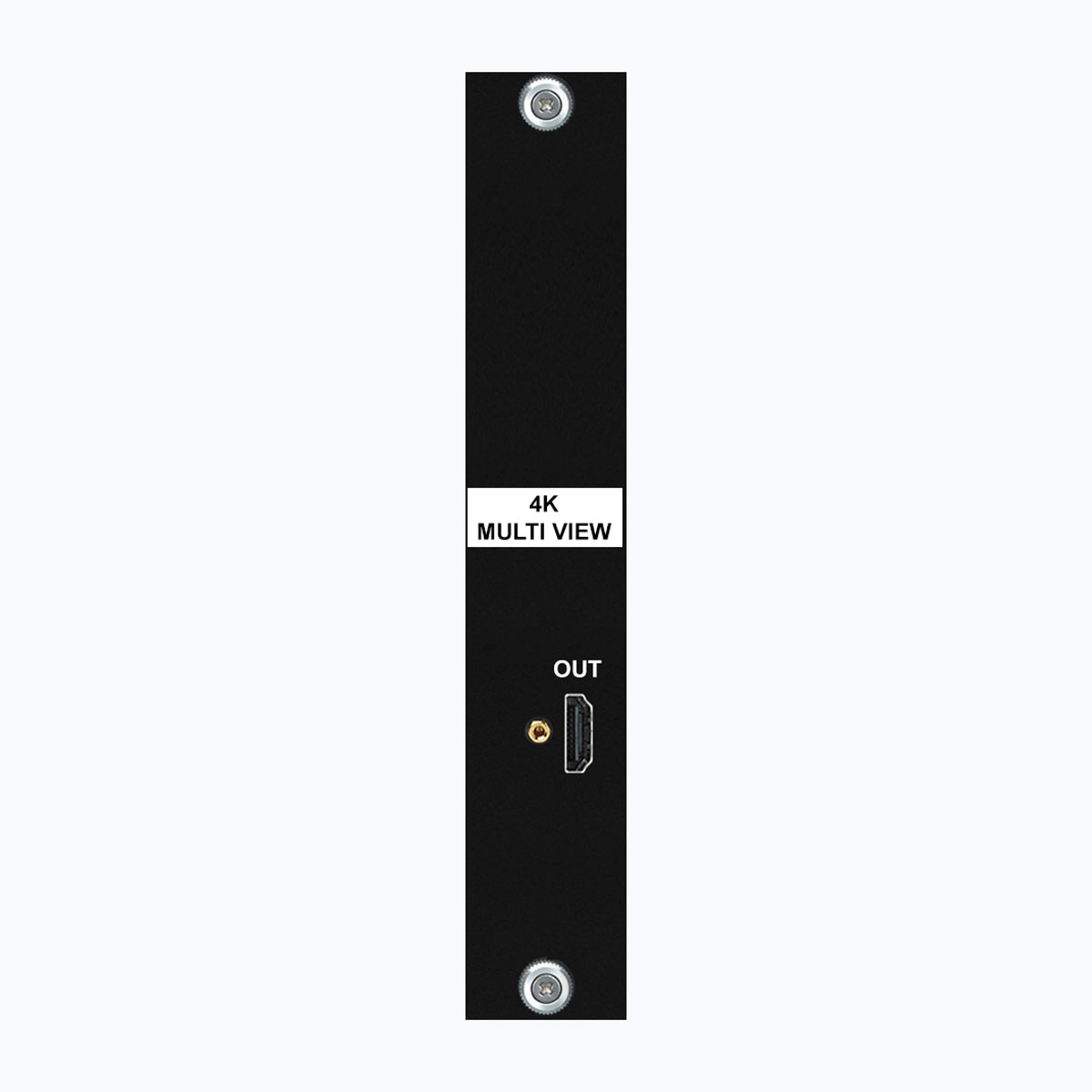

The PM-HOS4S-MV-U is an Ultra HD/4K Multiview Output Board for PureMedia™ matrix switchers supporting Ultra HD/4K resolutions. Each PM-HOS4S-MV-U board has a single HDMI output.
- Five layouts with Auto Aspect Adjustment
- Supports resolutions 4096 x 2160 30Hz
- Can output any (4) PureMedia inputs
- HDCP 2.0
Technical Specifications
| Number of Port | 1 x HDMI port |
| Connector Types | Female HDMI connector |
| Signal Type |
RGB digital Video (DVI and HDMI standards) or YCbCr digital component Video (HDMI) |
| Operation Standard | DVI 1.0 , HDMI 1.4b |
| Maximum Resolution |
up to 4096 x 2160 @24/25/30Hz (RGB/YCbCr 4:4:4 8 bits, YCbCr 4:2:2 8/10/12 bits) |
| Maximum Data Rate | 3.4 Gbps per color (R,G,B) |
| Switching Speed | Max 200ns |
| HDCP Compatible | HDCP version 2.0 |
| Support Hot Plug Detection | Yes |
| Re-clocking | Automatic Output HDMI Re-clocking |
| Single Board Weight | 1 lbs(0.45 kg) |
