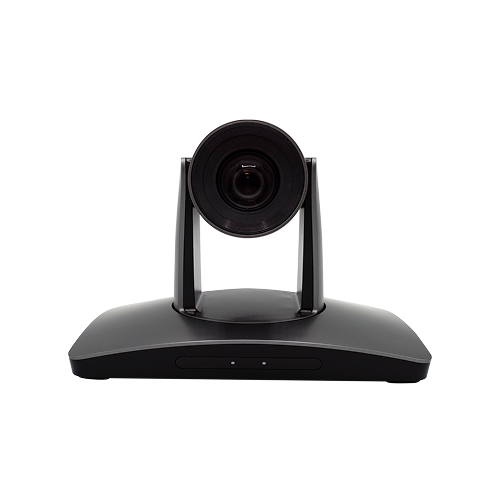

Pro PTZ Camera with HDMI, USB 2.0, and LAN Output
SKU: VIP-CAM-30-20x- 20x High Performance Optical Zoom w 8x Digital Zoom (160x total zoom)
- Advanced PTZ (Pan-Tilt-Zoom) function for higher precision and reliability
- USB 2.0, HDMI, RTSP and RTMP outputs
- VISCA and PELCO control
The VIP-CAM-30-20x is a 1080p camera with 20x optical zoom & and 8x digital zoom for capturing HD images from long distances. With support for HDMI, USB 2.0, and IP Streaming, this camera is ideal for broadcasting high definition video signals in conferencing, live broadcast, and security/surveillance applications. The VIP-CAM-30-20x can be powered with the supplied 100-240 50/60Hz UL listed AC adapter, or PoE 802.3af.
- 20x High Performance Optical Zoom w 8x Digital Zoom (160x total zoom)
- Advanced PTZ (Pan-Tilt-Zoom) function for higher precision and reliability
- USB 2.0, HDMI, RTSP and RTMP outputs
- VISCA and PELCO control
Technical Specifications - Camera
| IMAGE SENSOR | 1/2.8” Exmor CMOS, 2.14MP |
| SUPPORTED RESOLUTIONS | 1080p/60, 1080[/30, 1080i/60, 720p/60, 720p/30, <br>1080p/50, 1080p/25, 1080i/50, 720p/50, 720p/25 |
| FOCAL | f = 4.7mm - 94.0mm, F1.6~F3.5 |
| IRIS | F1.6 - F3.5 |
| OPTICAL ZOOM | 20x |
| DIGITAL ZOOM | 8x |
| SHORTEST FOCUS DISTANCE | 10mm - 1.000mm |
| FIELD OF VIEW | 72.5° ~6.3°, 59.5° - 2.9° |
| MINIMUM ILLUMINATION | 0.5Lux |
| SHUTTER SPEED | 1/60s~1/10,000s |
| AGC | Auto/Manual |
| WHITE BALANCE | Auto/One Push/Manual/Auto Tracking/Static |
| AE CONTROL | Auto/Manual/Shutter Priority/Bright Priority |
| S/N rate | ≥ 50db |
| GAIN | Auto/Manual |
| BLC | Support |
Pan & Tilt
| PAN RANGE | -170° - +170° |
| TILT RANGE | -30° - +90° |
| PAN SPEED | 0.1° ~120° /s |
| TILT SPEED | 0.1° - 90°/s |
| PRESET NUMBER | 256 |
| OSD | Supported |
| IMAGE FLIP | Supported |
Network
| MAXIMUM IMAGE SIZE | 1920x1080 @60fps |
| VIDEO COMPRESSION | H.265, H.264 |
| AUIDO COMPRESSION | AAC |
| PROTOCOL | RTSP, RTMP, ONVIF |
| NETWORK SUPPORT | Dual Stream; up to (10) simultaneous users |

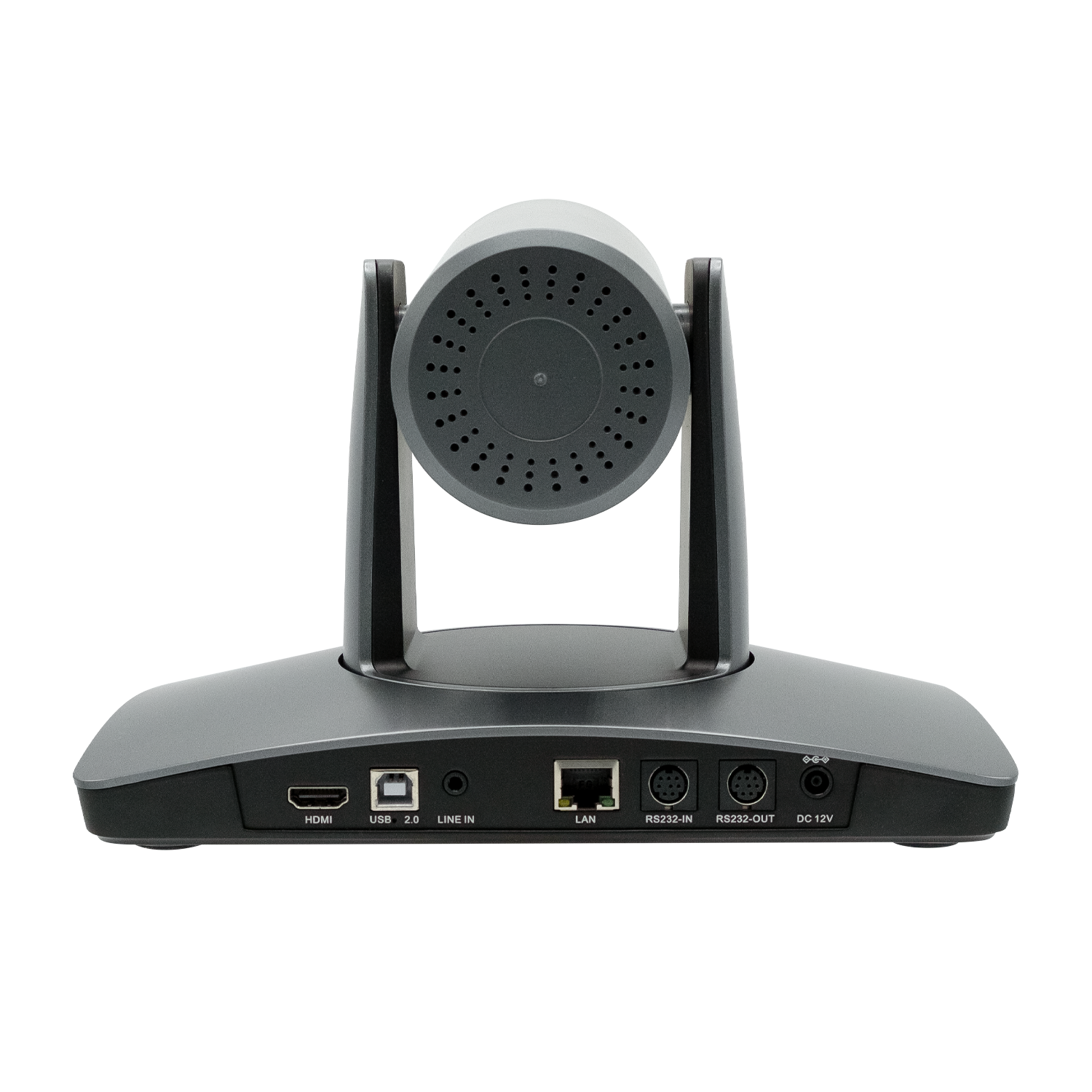

Interface
| ETHERNET | RJ45(10M/100M), optional PoE |
| VIDEO OUTPUT | HTTP, TCP, UDP, RTSP, RTMP, & ONVIF |
| CONTROL INTERFACE | RS-232 IN & RS-232 OUT |
| Audio Port | 1x Channel Line IN |
| USB Interface | 1x Channel USB 2.0 |
| Power Jack | DC12V |
General
| CONTROL PROTOCOL | VISCA and Daisy Chain Support, PELCO-P, PELCO-D |
| ADDRESS | 0 - 63 |
| POWER CONSUMPTION | <18W |
| OPERATING TEMPERATURE | 32° ~ 104°F (0° ~ 40°C) |
| STORAGE TEMPERATURE | -4° ~ 140°F (-20° - 60°C) |
| HUMIDITY | Operating: 10 ~ 90% RH, Storage: 10 ~ 95% RH |
| DIMENSIONS | 243mm x 145mm x 163mm |
| ENCLOSURE | Grey |
| WEIGHT | 1200g (1.2kg) |
Warranty
| Warranty | Limited Warranty (3-Years) |
