10G CAT/Fiber IP Transceiver for Media Axis™

Media Axis Transceivers

10G CAT/Fiber IP Transceiver for Media Axis™

Name: 10G CAT/Fiber IP Transceiver for Media Axis™
Brand: PureLink
SKU: MAX-IP-TRX

MAX-IP-TRX

TAA

Contact us Find a dealer Test drive this product

Category	Title	Version
Product Sheet	MAX-IP-TRX — Product Sheet	1.0	Download
Other	Media Axis vs. Media Axis 2 (MAX2) — Comparison Chart	1.0	Download
User Manual	Media Axis Matrix Switchers — User Manual	1.5	Download
Software	MAX-Tools — Driver	1.0	Download
Product Catalog	Media Axis — Product Catalog	2.3	Download

The MAX-IP-TRX 10G Transceiver for Media Axis™ provides integration of 10G Video Over IP and standard matrix switching transport, allowing all AV technologies to work together seamlessly

Key Features

10G CAT or Fiber SFP+ transport
Up to 4K60 (4:4:4)
BlueRiver NT+ lossless codec with zero frame latency
Combine IP transport with standard matrix switching
Allows connectivity of Video, Audio, USB, IR, RS232, and Network distribution
Up to 8x8 Multiview – any signal type of sources to any signal type of display
Up to 8x8 Video Wall capability
4K60 up/down scaling with our exclusive Motore tm scaler
Audio embedding/extraction
USB/KVM switching/distribution
Bidirectional IR
RS-232 extensions/distribution
Network extension
Compatible with 1LC/2LC 10G SFP+ MM or SM module

Core Technologies
PureBred™ Design	A wholly transformative platform that allows baseband signals to be distributed beyond its local wired connections, providing maximum scalability and flexibility.
AirLift™ Cooling System	Lateral air flow/direct cooling of matrix powered by modular blade units, each composed of eight fans.
Omni-Flex™	A fully modular and adaptive design with chassis configurations from 20×20 to 216×216 that combines hot-swappable, field-upgradeable components with flexible, platform-agnostic functionalities.
Motore™ 2.0	Full-featured 4K/60 4:4:4 media processing and auto-scaling with frame-rate conversion available at every output.
iAxis™	Detachable front-panel tablet control for wireless/mobile command of the Media Axis' matrix and IP switching capabilities from anywhere at any time.

Specifications

Connections
Control Ports	1 × 3.5mm IR input, 1 × 3.5mm IR output, 2 × USB-A, 1 × USB-B, 1 × RS-232 Phoenix connector

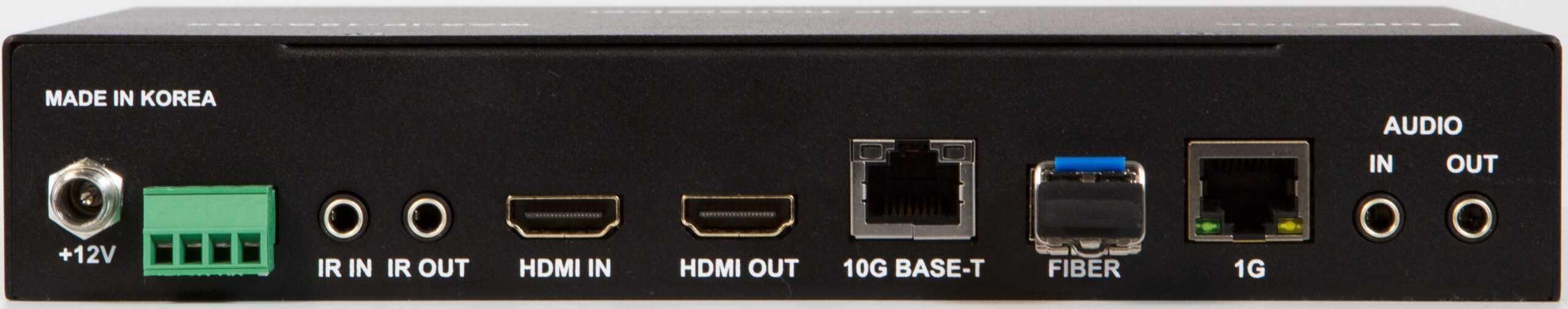

Connector Type(s)	Video: 1 × HDMI input, 1 × HDMI output; network: 1 × 10G CAT port, 1 × 10G fiber SFP+ slot for audio/video/control, 1 × 1G network extension port; audio: 1 × 3.5mm analog stereo input, 1 × 3.5mm analog stereo output
Performance
Video Support	Up to 4096 × 2160@60p 4:4:4 with HDR
Supported Audio Formats	All HDMI 2.0 formats, including multichannel PCM, Dolby TrueHD, and DTS-HD Master Audio
HDCP Compliance	HDCP 2.2
Power Supply	100–240VAC, 50/60Hz
Operating Temperature	32° to 117°F / 0° to 47°C
Storage Temperature	-40° to 158°F / -40° to 70°C
Relative Humidity	0–90% non-condensing
MTBF	50,000 hours
Diagnostics	Front-panel LEDs, web UI, API
Latency	Zero-frame delay
Transmission Distance	100 m with CAT6a
Transmission Interface	10 Gigabit Ethernet
Compression	BlueRiver NT+
Enclosure
Product Dimensions	12.21 × 7.09 × 2.76 in / 310 × 180 × 70 mm
Product Weight	7.7 lbs / 3.5 kg
Warranty
Warranty	Limited Warranty, 3 Years
