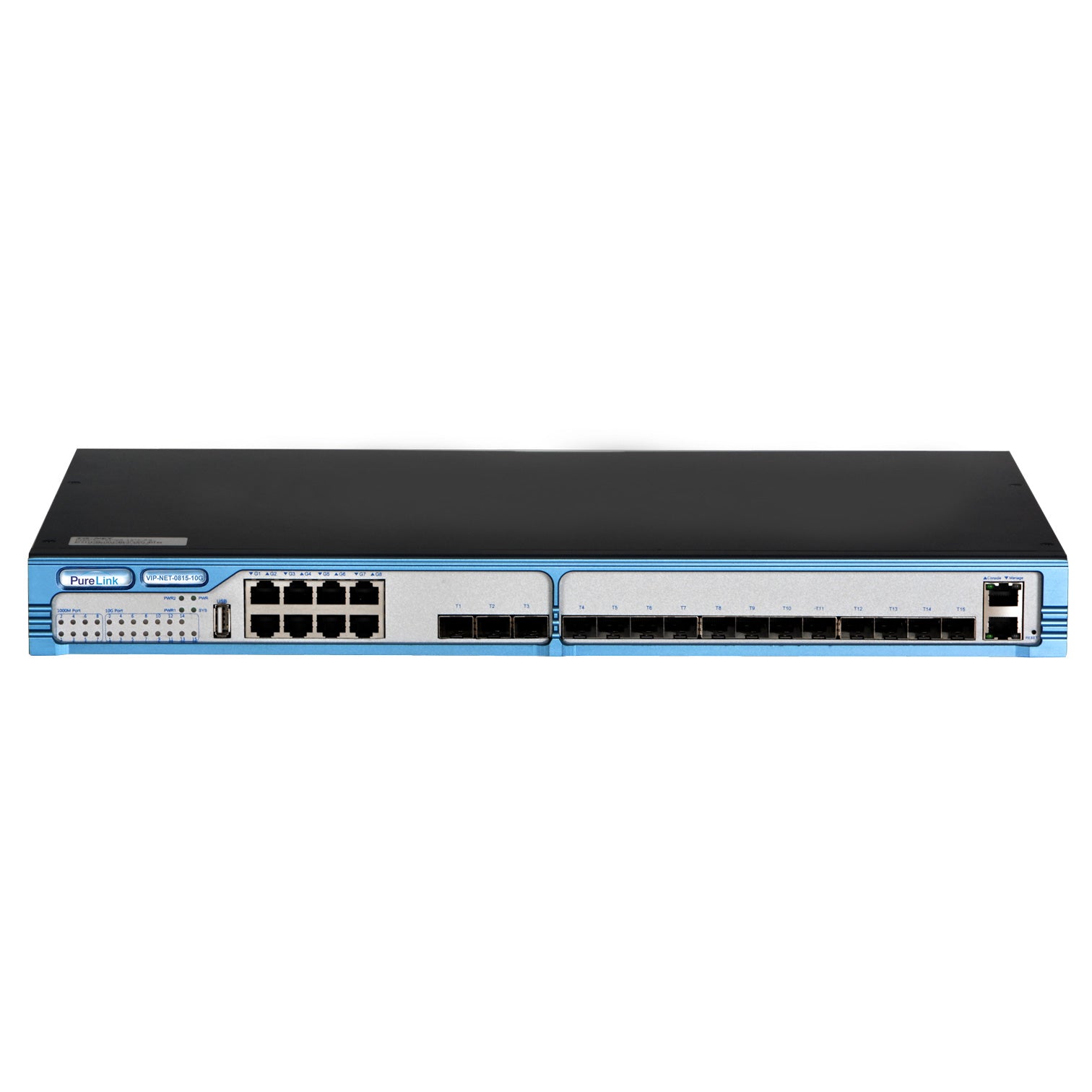

The VIP-NET 10G Series of AV over IP network switches provides flexible CAT and Fiber connectivity based on a new generation of PureStream IP Video solutions. Along with IGMP snooping, Jumbo Frame, VLAN, and L2+ management, the 10G Series allows multiple units to be interconnected using the optional 10G slot card to create AV matrix systems. The VIP-NET Series 10G switches are purpose-built to provide effective 10G connections to 10G-capable servers and NAS (Network Attached Storage) systems, working reliably with PureLink’s various VIP transmitter (encoders) and receivers (decoders). The VIP-NET-0815-10G is a 10-Gigabit network switch with (8) 1000Base-T and (15) dedicated 1000Base-X SFP+ fiber ports designed for use with PureStream IP Video solutions to provide simple and flexible network management. The VIP-NET-0815-10G combines many important features for reliable AV over IP distribution including, IGMP, Jumbo Frame, VLAN, as well as the ability to link multiple switches.
Key Features
- Purpose designed switches for high reliability and performance AV over IP systems
- Various port types and flexible port expansion
- 15 x 10G SFP+ ports, 8 x 1000Base-T CAT ports
- L3 management, QoS with ARP learning, DHCP snooping, VLAN, IGMP, Jumbo Frame and more
- Wirespeed replication of multicast packets
- SNMP, RMON, Web NMS, and Telnet
- Dual redundant, swappable power supplies
Specifications
| General Specifications |
|
| Switching Capacity |
320 Gbps |
| Packet Forwarding Capacity |
238 Mpps |
| Operating Temperature |
0°C to 50°C |
| Relative Humidity |
5–95% non-condensing |
| Product Dimensions (L × W × H) |
444 × 425 × 44.5 mm |
| Product Weight |
<8 kg |
Warranty |
|
| Warranty |
5 Years |
