| Hardware |
|
| Input Signal Type(s) |
12G-SDI, with second input for redundancy |
| Output Signal Type(s) |
HDMI 2.0 |
Performance |
|
| Supported Resolutions |
525i59.94, 625i50, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| Compliance |
HDMI 2.0, HDCP 2.2 |
| Supported Audio Formats |
Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS, DTS-ES, DTS 96/24, DTS-HD High Resolution, DTS-HD Master Audio, LPCM up to 8 channels |
| Power Consumption |
DC 12V |
| Main Power |
100–220VAC |
| Operating Temperature |
-4° to 158°F / -20° to 70°C |
| Compatibility |
Compatible with MAX-HI |
| SDI Standard |
SMPTE 295M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A, SMPTE 2081-1, SMPTE 2018-10, SMPTE 2082-10, ITU-R BT.656, ITU-R BT.601 |
| SDI Video Sampling |
YCbCr 4:2:2 |
| SDI Audio Sampling |
48kHz, 24-bit, 8-channel |
| EDID Control Port |
16-position rotary switch |
| Operating Humidity |
10–80% |
| Operating Altitude |
3,000 m max |
| Control Port |
DIP switch |
Connections |
|
| Connector Type(s) |

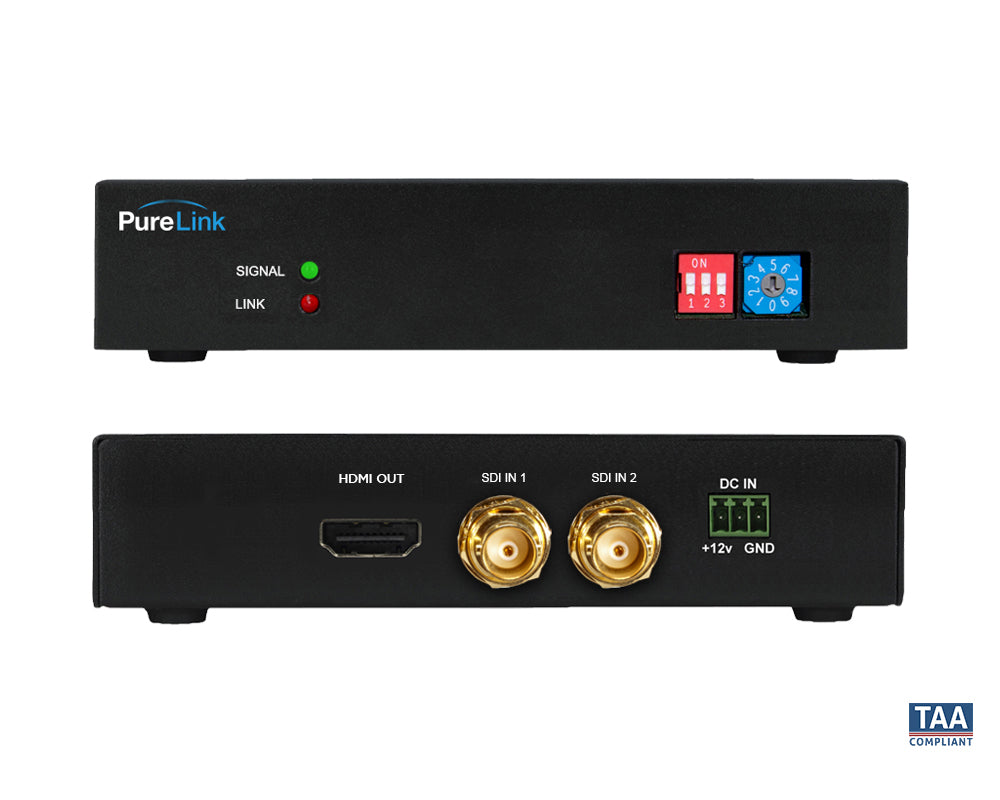

1 × HDMI Type A female, 2 × BNC female connectors, 1 × 3-pin Phoenix connector for 12V power |
Enclosure |
|
| Product Weight |
1.5 lbs / 0.68 kg |
Warranty |
|
| Warranty |
Limited Warranty, 3 Years |
TAA
