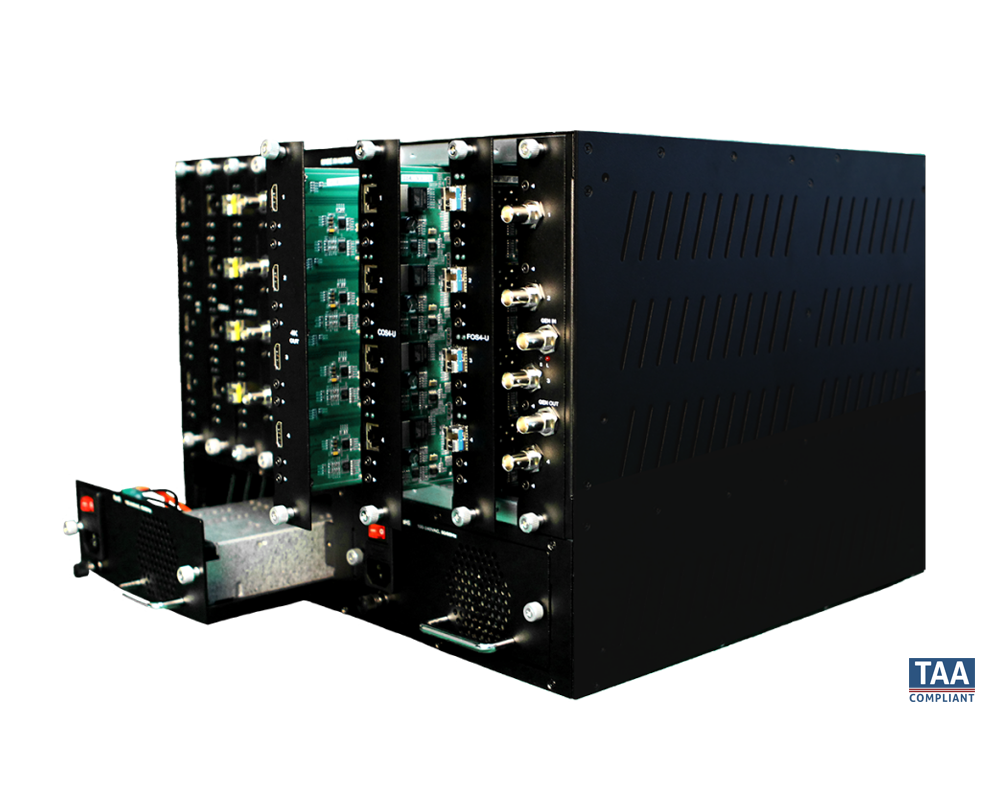

The PM-16X is a cross-platform, modular matrix switcher featuring the industry’s fastest switching speeds and advanced media processing technology for powerful multi-room signal management and distribution. The PM-16X houses a combination of up to 16×16 Ultra HD I/O options for distributing analog and digital sources up to 4K, including HDMI, DVI, 3G/HD-SDI, HDBaseT, and Fiber.

PureMedia™ (PM) is a complete media and data distribution management solution, proven to work consistently and seamlessly to provide a scalable, configurable, controllable, and reliable HD ecosystem. PureMedia™ offers the only complete, truly modular AV signal distribution system, delivering the highest quality AV and control signals where you need it to be, in real time, every time.

Ultra HD/4K
PureMedia offers a complete catalog of distribution and extension solutions for Ultra HD/4K connectivity that can be customized for any application. From 4K matrix switcher frames to 4K extenders, all with TOTALWIRE™ (HDMI, HDBaseT, and Fiber) cabling, PureMedia solutions deliver a more seamless transition to 4K connectivity than any other provider.

Universal Cross-Platform Architecture
Advanced Cross-Platform Switching Technology allows any input, any frame rate, and any format to be converted to any output variation desired, with support for HDMI v1.4, DVI, 3G/HD-SDI, VGA/Component, Fiber Optic, and HDBaseT.

Fully Modular and Expandable
The modular, slot card build of PM Matrix Switchers (fully expandable from 4×4 to 180×180), combined with a comprehensive selection of input and output cards, provide endless combinations of connectivity and formats.

Motore™ 4K Scaling
PureMedia matrix switching systems powered by Motore™ provide comprehensive features including Ultra HD upscaling and downscaling, frame rate conversion, smooth motion performance, crisp imaging, as well as auto-scaling for seamless reproduction on every display.

Diagnostics
PureMedia matrix switching systems provide diagnostic information of input signals, displays, slot cards, and connectivity. An assortment of test patterns is available to confirm output connections and display/image verification at various resolutions.

EDID Management
The PM product line is the only matrix switching system that automatically scales each output to match the EDID from the attached displays. The result is a quick, clean switch from source to display without any disparities in the image size, position, or aspect ratio. PureMedia matrix switchers provide the most comprehensive EDID management system available, ensuring proper image display without the need for additional emulation devices.

Control
With intuitive touch screen menus and a complete external control command set, PureMedia provides the features and functions that meet the unique requirements of each application. Third party control modules allow remote operation and automation of PM matrix switchers, providing a fully customizable solution that delivers a seamless user experience.

Key Features

• Ultra HD/4K distribution and extension
• Universal Cross-Platform Architecture - convert any input, frame rate, and format to any output variation
• Fully modular and expandable Motore™ 4K Scaling
• Advanced diagnostics reporting via intuitive front panel menu
• Comprehensive EDID Management
• RS-232 and third party control options
