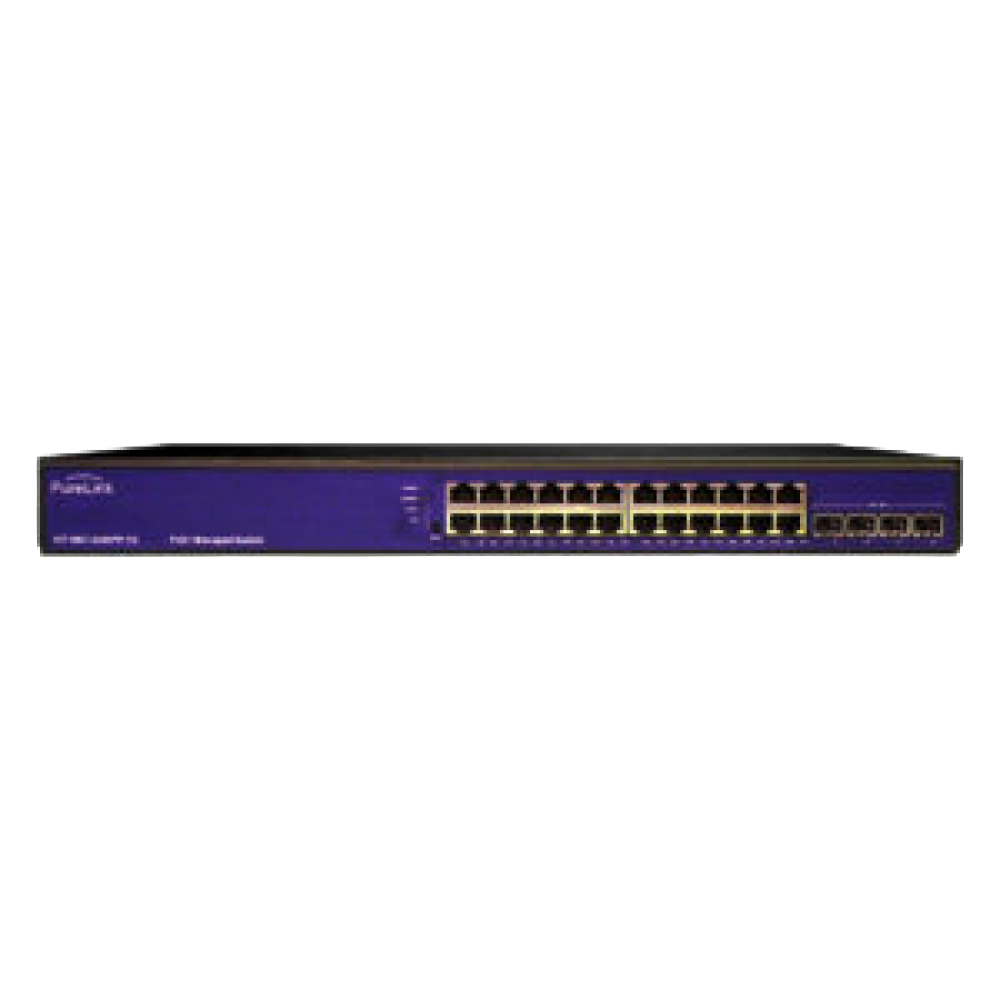

The VIP-NET-2404PP-1G Managed PoE Network Switch provides flexible CAT/Fiber connectivity based on a new generation of PureStream IP Video solutions. Designed to work reliably with PureLink’s various VIP transmitters (encoders) and receivers (decoders), the VIP-NET 1G Series is purpose-built to enhance performance and simplify the management of IP video matrix switching systems.
Key Features
- IGMP Snooping and Jumbo Frame support
- L2+ Managed Features for Ease of Use, Robust Security and QoS
- Built in Device Management System (DMS)
- IPv4/IPv6 Management
- PoE Port Configuration and Scheduling
- (4) SPF+ Slots for 20G or 40G Interlink
- 802.3at High Power, PoE+
- IEEE 802.3az EEE Energy Efficient Ethernet
Specifications
| General Specifications |
|
| PoE Functions |
IEEE 802.3at (PoE+ 30W), IEEE 802.3af (PoE 15.4W) |
| PoE Power |
370W |
| Switching Capacity |
128 Gbps |
| Packet Forwarding Capacity |
96 Mpps |
| Operating Temperature |
0° to 50°C |
| Relative Humidity |
5–95%, non-condensing |
| Product Dimensions |
17.3 × 11.2 × 1.7 in |
| Product Weight |
8.0 lbs |
Warranty |
|
| Warranty |
Limited Warranty, 3 Years |
