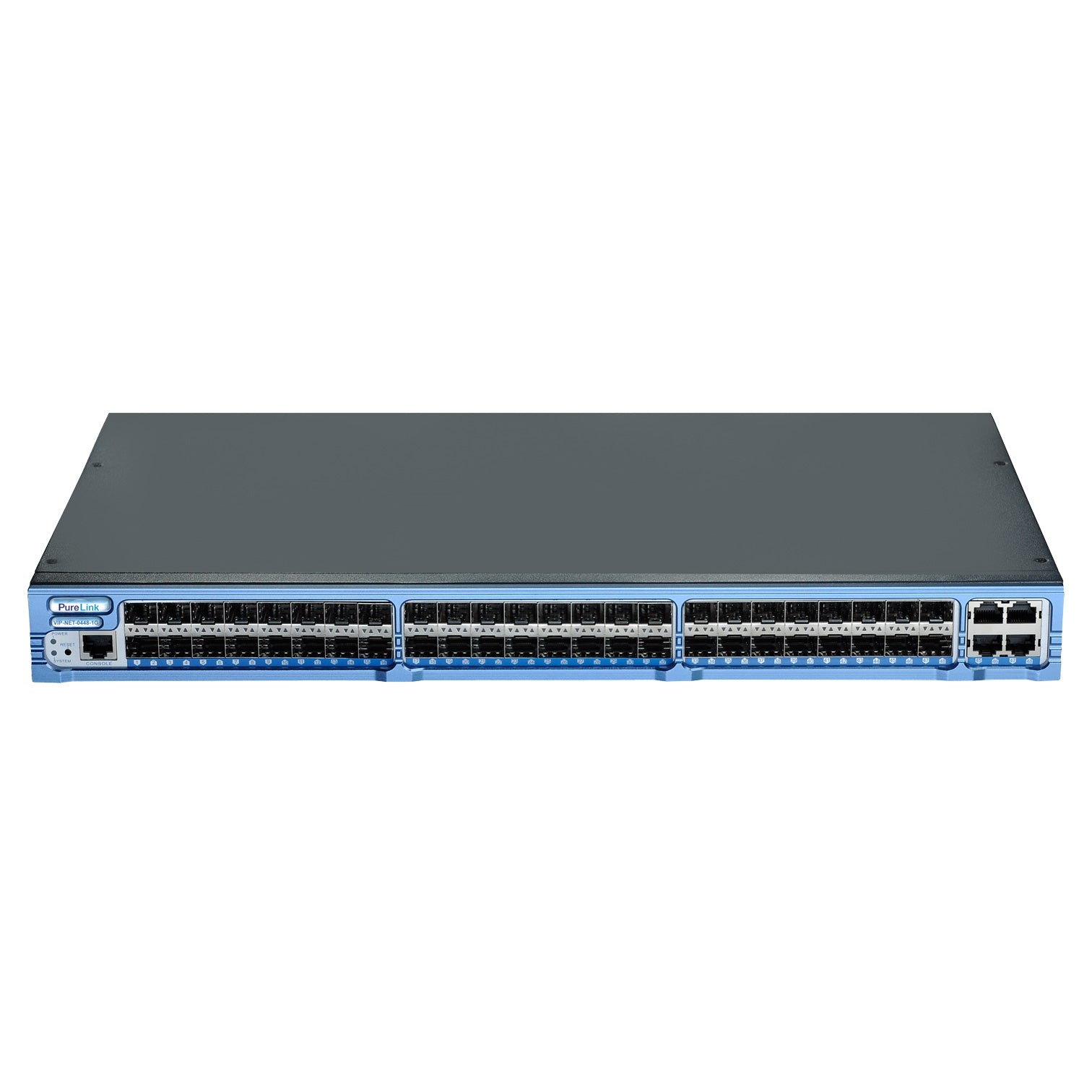

The VIP-NET 1G Series of AV over IP network switches provides flexible CAT and Fiber connectivity based on a new generation of PureStream IP Video solutions. Along with IGMP snooping, Jumbo Frame, VLAN, and L2+ management, the 1G Series allows multiple units to be interconnected using the optional 10G slot card to create AV matrix systems. Designed to work reliably with PureLink’s various VIP transmitter (encoders) and receivers (decoders), the VIP-NET 1G Series is purpose-built to enhance performance and simplify the management of IP video matrix switching systems. The VIP-NET-0448-1G is a Gigabit network switch with (48) 1000Base-X SFP fiber and (4) 1000Base-T ports designed for use with PureStream IP Video solutions to provide simple and flexible network management. The VIP-NET-4804-1G combines many important features for reliable AV over IP distribution including, such as IGMP, Jumbo Frame, VLAN, as well as the ability to link multiple switches.
Key Features
- Purpose-built for high reliability and performance
- Various port types and flexible port expansion
- 24 or 48 port CAT or Fiber models
- Support for L2+ management, QoS with ARP learning, DHCP snooping, VLAN, IGMP, and Jumbo Frames
- Wirespeed replication of multicast packets
- SNMP, RMON, Web NMS, and Telnet
- Optional 10G sub-cards for linking multiple switches together
Specifications
| General Specifications |
|
| Switching Capacity |
280 Gbps |
| Packet Forwarding Capacity |
131 Mpps |
| Operating Temperature |
0°C to 50°C |
| Relative Humidity |
5–95% non-condensing |
| Product Dimensions (L × W × H) |
440 × 285 × 44.5 mm |
| Product Weight |
<4 kg |
Warranty |
|
| Warranty |
Limited Warranty, 3 Years |
