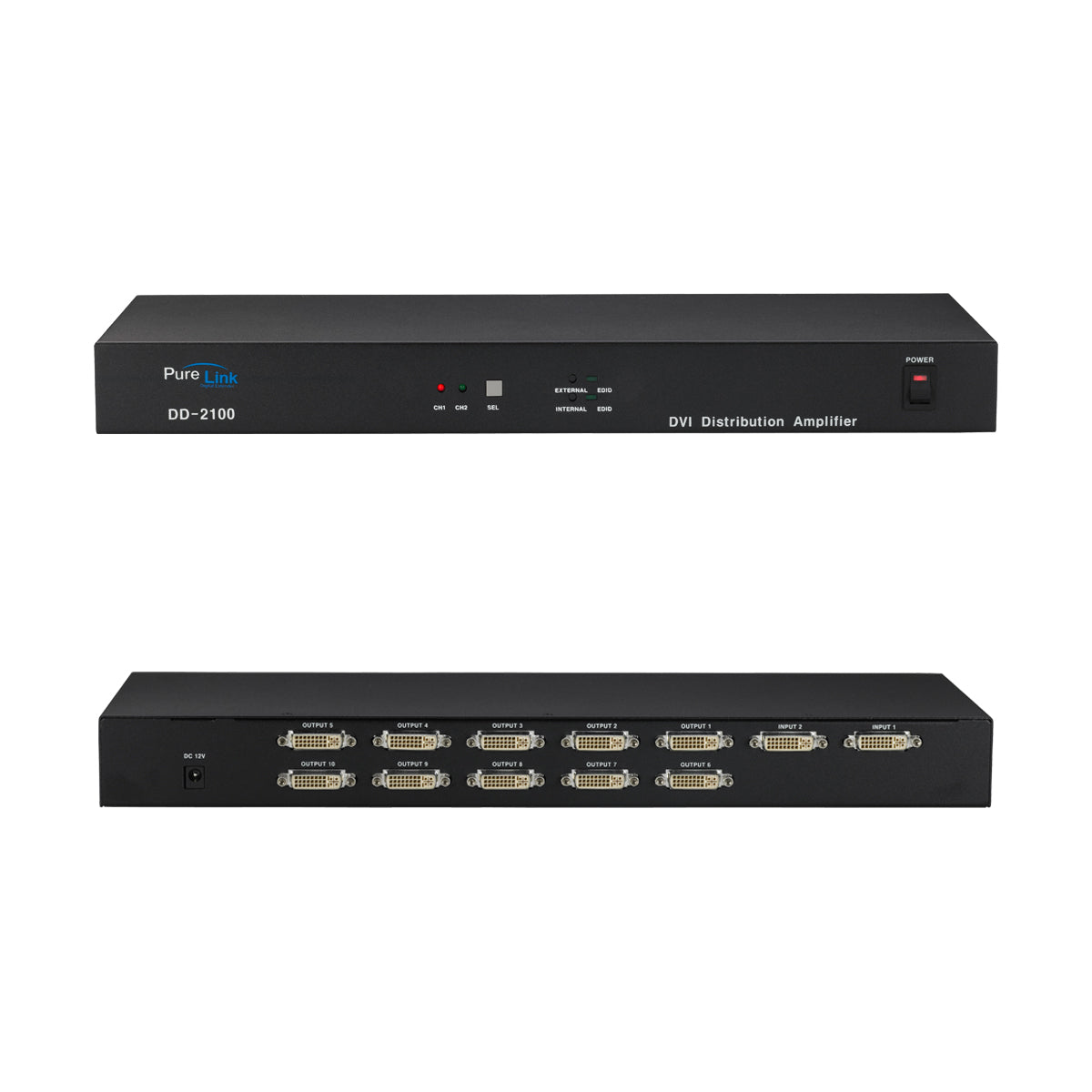

The DD-2100 2×10 DVI Distribution Amplifier can distribute (2) DVI inputs to as many as (10) displays, supporting resolutions up to 1080p@60Hz and WUXGA 1920x1200@60Hz. With built-in signal regeneration technology, the DD-2100 offers reliable and convenient integration in commercial or residential applications.
Key Features
- Supports resolutions up to 1080p@60Hz
- Regenerate and distribute HD signals to multiple displays
- Pixel re-clocking & error correction technology
- Flexible EDID Management
- 19” Rack Mountable design
Specifications
| Hardware |
|
| Input Signal Type(s) |
DVI single-link |
| Output Signal Type(s) |
DVI single-link |
Performance |
|
| Supported Resolutions |
1080p@60Hz, WUXGA 1920 × 1200@60Hz |
| Video Bandwidth |
1.65 Gbps, single-link |
| Power Supply |
DC 12V, 5A |
| Operating Temperature |
32° to 117°F / 0° to 47°C |
| Storage Temperature |
-40° to 158°F / -40° to 70°C |
| Relative Humidity |
0–90% non-condensing |
| MTBF |
50,000 hours |
| Rack Mounting Option |
Standard 19-inch rack-mountable design |
Connections |
|
| DVI-D Connector |
DVI-D/LC |
Enclosure |
|
| Enclosure Type |
All-metal construction with black powder-coated finish |
| Rack Mounting Option |
Standard 19-inch rack-mountable design |
| Product Dimensions |
16.7 × 6.4 × 1.7 in |
| Product Weight |
4.6 lbs |
Warranty |
|
| Warranty |
Limited Warranty, 3 Years |
