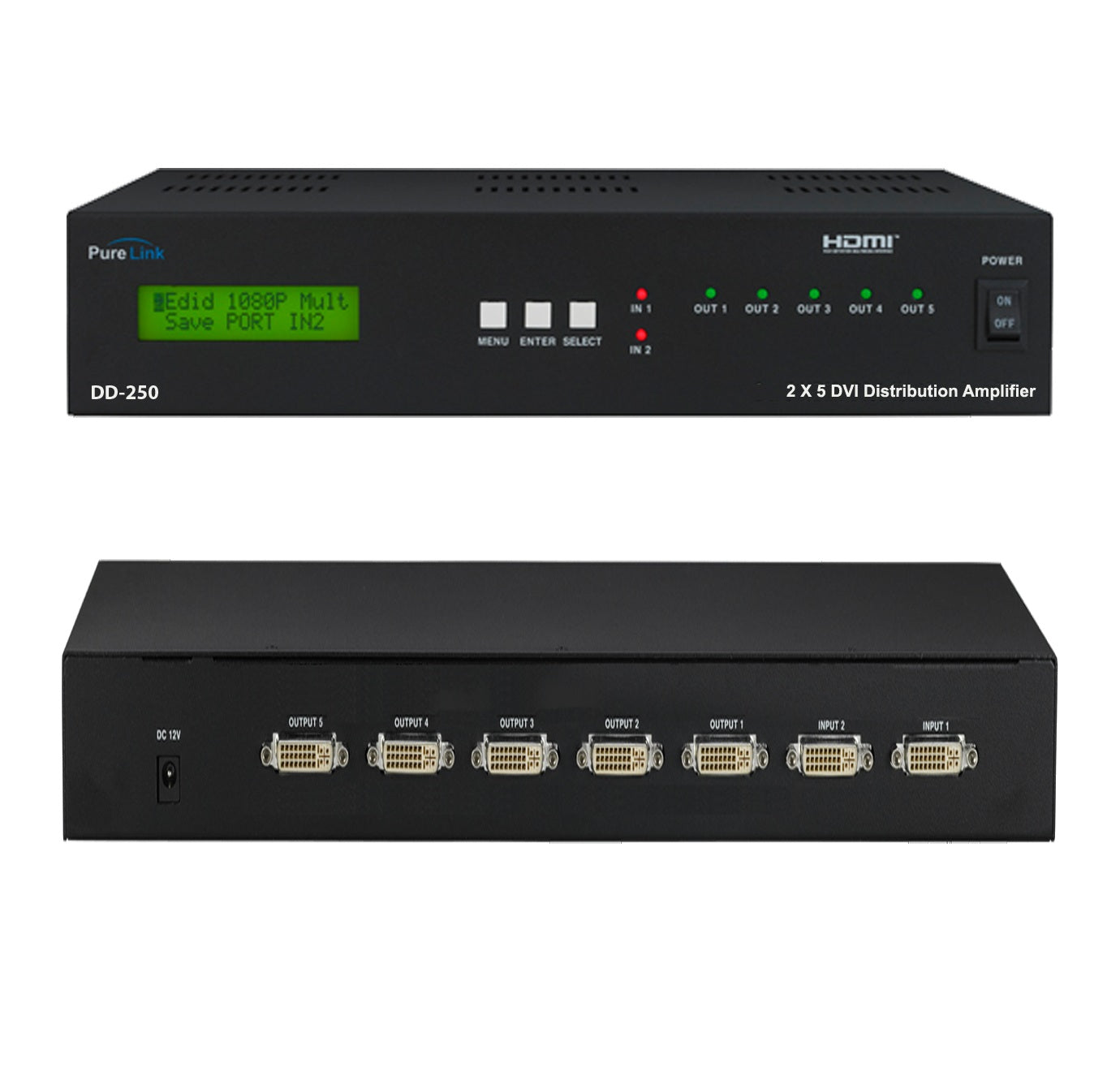

The DD-250 is a 2×5 Distribution Amplifier can distribute (2) DVI-I switchable inputs (PC, AVR) to as many as (5) displays, supporting resolutions up to Full HD/1080p. Featuring Auto-EDID management at each input the DD-250 offers quick and easy plug-and-play integration in commercial or residential applications.
Key Features
- (2) DVI inputs to (5) DVI outputs signal distribution
- Full HD/1080p resolutions
- HDMI 1.3 and HDCP compliant
- High quality, lossless signal transmission
- Built-in EDID library
- Compact enclosure for discreet installation
Specifications
| Hardware |
|
| Input Signal Type(s) |
DVI single-link |
| Output Signal Type(s) |
DVI single-link |
Performance |
|
| Supported Resolutions |
480i–1080p |
| Compliance |
HDMI 1.3, HDCP |
| Power Consumption |
13W max |
| Power Supply |
DC 12V, 4A |
| Operating Temperature |
32° to 117°F / 0° to 47°C |
| Storage Temperature |
-40° to 158°F / -40° to 70°C |
| Relative Humidity |
0–90% non-condensing |
| MTBF |
50,000 hours |
| Rack Mounting Option |
Standard 19-inch rack-mountable design |
Enclosure |
|
| Enclosure Type |
All-metal construction with black powder-coated finish |
| Rack Mounting Option |
Standard 19-inch rack-mountable design |
| Product Dimensions |
13.7 × 6.4 × 1.7 in |
| Product Weight |
3.7 lbs |
Warranty |
|
| Warranty |
Limited Warranty, 3 Years |
