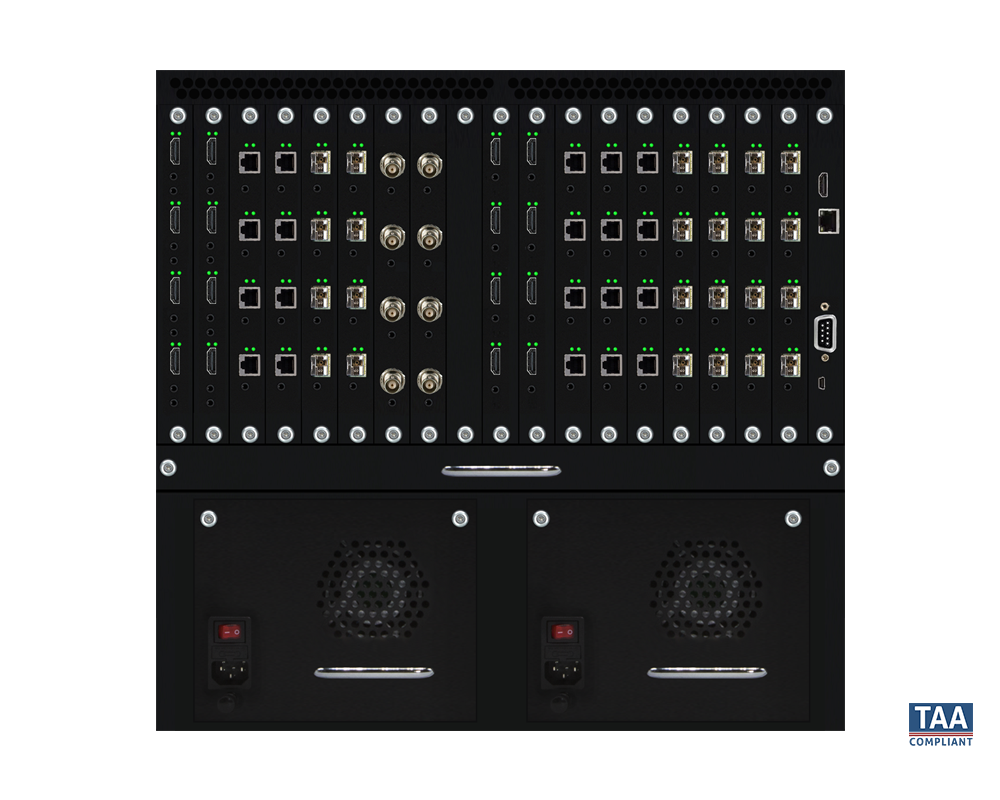

The MAX-36 is a completely modular, cross-platform matrix switcher with hot-swappable, field upgradable I/O cards, MCU, cooling modules, and power supplies. This 36×36 frame supports HDMI, HDBaseT, Fiber, 12G-SDI, IP, and Dante™ Audio cards for any desired I/O combination.

Media Axis' unique design features and technologies come together to deliver the most adaptable, forward-thinking solution:

PureBred™ Design
A wholly transformative platform that allows baseband signals to be distributed beyond its local wired connections, providing maximum scalability and flexibility.

AirLift™ Cooling System
Lateral air flow/direct cooling of matrix powered by modular blade units each composed of eight fans.

Omni-Flex™
A fully modular and adaptive design with chassis configurations from 20×20 to 216×216 that combines hot-swappable, field upgradeable components with flexible platform-agnostic functionalities.

Motore™ 2.0
Full featured 4K/60 4:4:4 media processing and auto-scaling with frame-rate conversion available at every output.

iAxis™
Detachable, front panel tablet control for wireless/mobile command of the Media Axis' matrix and IP switching capabilities from anywhere at anytime.

Key Features

• HDMI 2.0, Ultra HD/4K 60Hz 4:4:4, HDCP 2.2
• High Dynamic Range (HDR) 10-bit, Dolby Vision
• HDMI I/Os with Motore 2.0 Scaling and 5V Power
• HDBaseT I/Os with Precis 4K60 4:4:4 Processing
• 12G-SDI inputs for Interoperation between 4K60 AV and 4K60 Broadcast signals
• Fiber I/Os with Adaptive Multimode/Singlemode Processing, Signal Transmission up to 1.24 miles (2 kilometers)
• IP I/Os with PureStreamX Codec and 10G infrastructure
• Dedicated Dante™ Audio input and output cards
• PureBred™ Adaptive Ultra HD Distribution Platform with Bi-Directional Native-IP Conversion
• All Frames Support All Input/Output Card Options
• Omni-Flex™ Modular Design with Hot-Swappable PSU, MCU, I/O, and Fans
• Redundant Power Supply
• Motore 2.0 Scaling with Don’t Blink™ Switching
• Power Injection for CATx Extenders (additional MAX-RPS power supply required)
• AirLift™ Cooling System
• iAxis™ Detachable Wireless Tablet Control (optional)
• Audio Breakaway for Independent Audio and Video Matrix Switching
• Dolby Digital/DTS/PCM pass-through, Stereo Audio Insertion and Extraction
• Bi-directional, RS-232 and LAN Control to Endpoints
• Fiber, HDBaseT, and IP Stand-Alone and Wall Plate Extenders
• Auto-EDID (EDID Library and Emulation)
• SNMP Remote Monitoring
• Input/Output System Diagnostics
• HDCP-Compliance Notification
