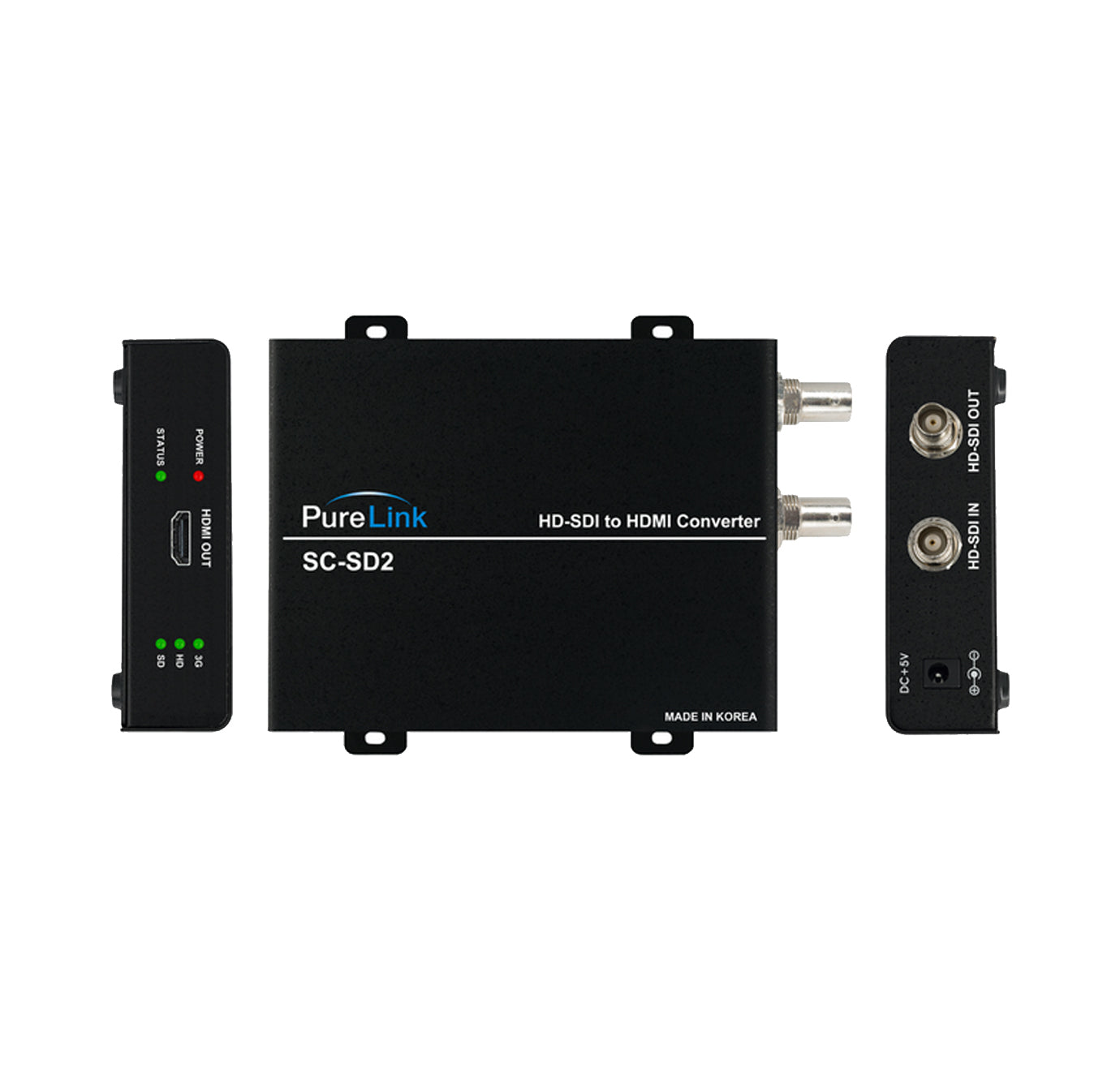

PureLink's breakthrough 3G SC-SD2 converts 3G-SDI to DVI/HDMI. The new interface consists of a single 3Gbit serial link, and is standardized in SMPTE 424M for up to Dual Link 3G-SDI. The new SC-SD 2 can now support up to 1080p native resolution. Field tests by several broad stations in Southeast Asia over the past year have confirmed the SC-SD 2's reliability and compatibility with existing platforms. (Not HDCP Compliant)
Specifications
| Hardware |
|
| Input Signal Type(s) |
HD-SDI |
| Output Signal Type(s) |
DVI/HDMI |
Performance |
|
| Video Input Format |
YCbCr 4:2:2 |
| Video Output Format |
RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 |
| Supported Audio Formats |
Data format: 12S; sampling rate: 48kHz |
| Main Power |
DC 5V with toggle power switch |
| Output Type(s) |
SMPTE-format YCbCr 4:2:2 |
Connections |
|
| Connector Type(s) |
HDMI female |
| DVI-D Connector |
DVI-I 29-pin female |
| Output Type(s) |
SMPTE-format YCbCr 4:2:2 |
Enclosure |
|
| Product Dimensions |
4.6 × 4.1 × 1.3 in |
| Product Weight |
1 lb |
Warranty |
|
| Warranty |
Limited Warranty, 3 Years |
