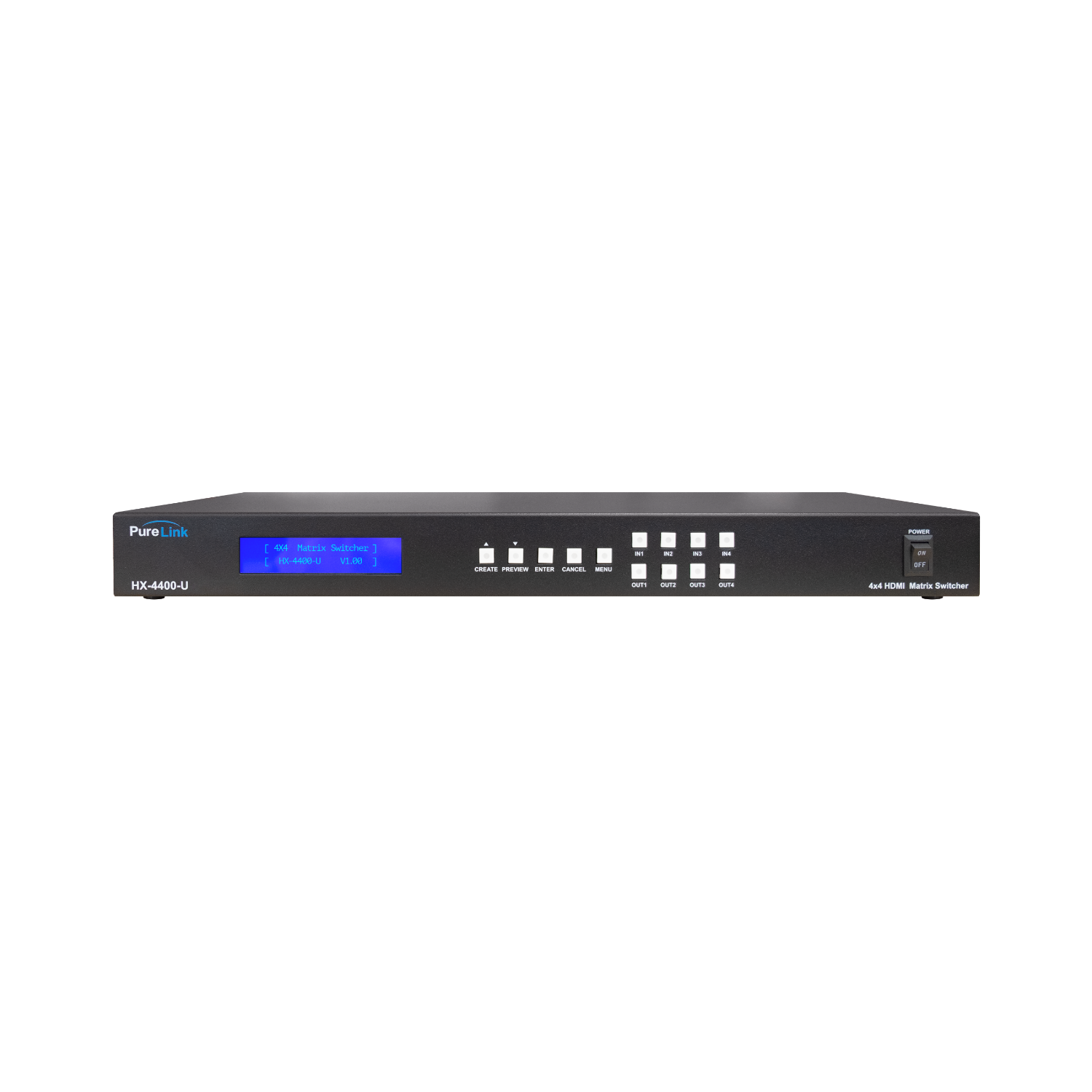

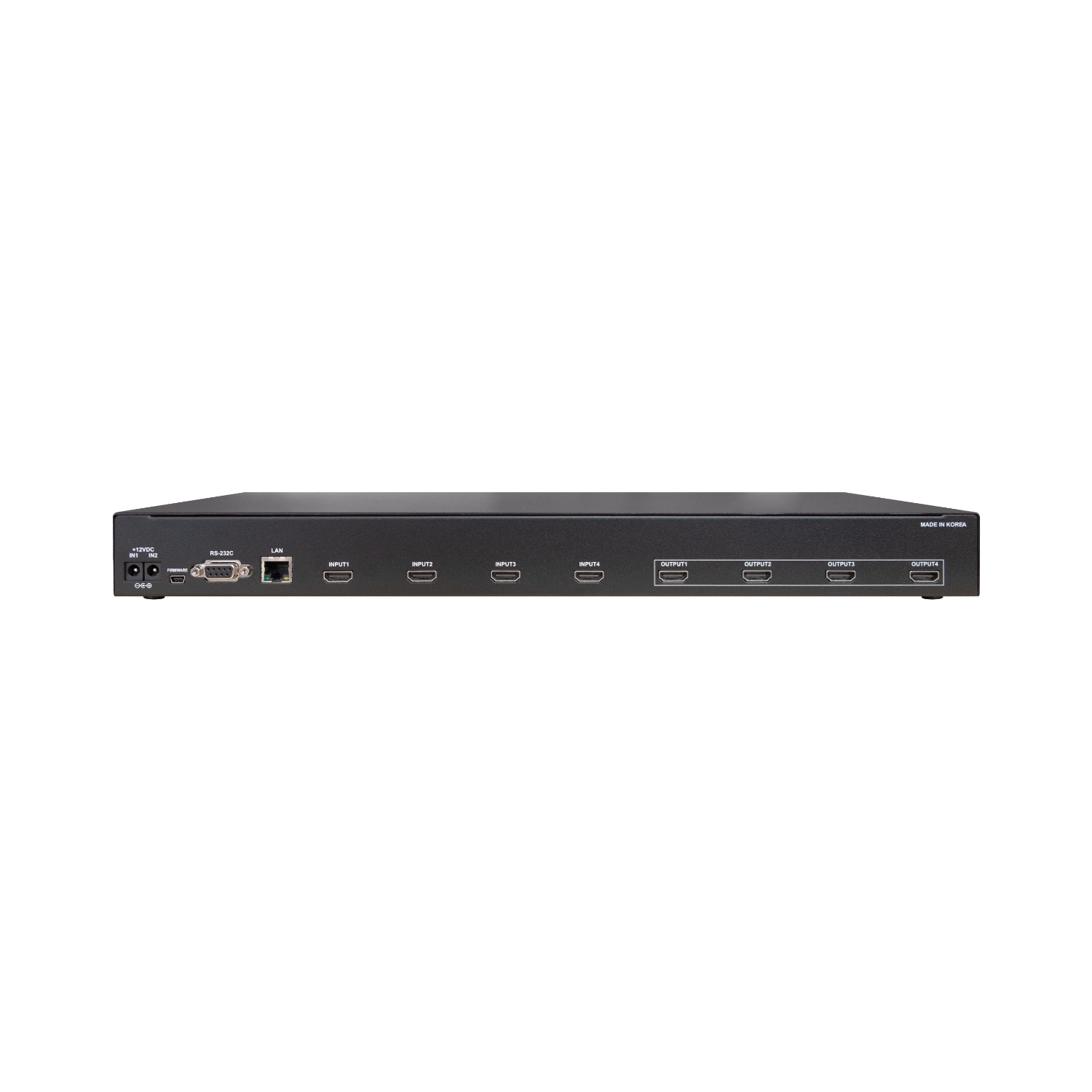

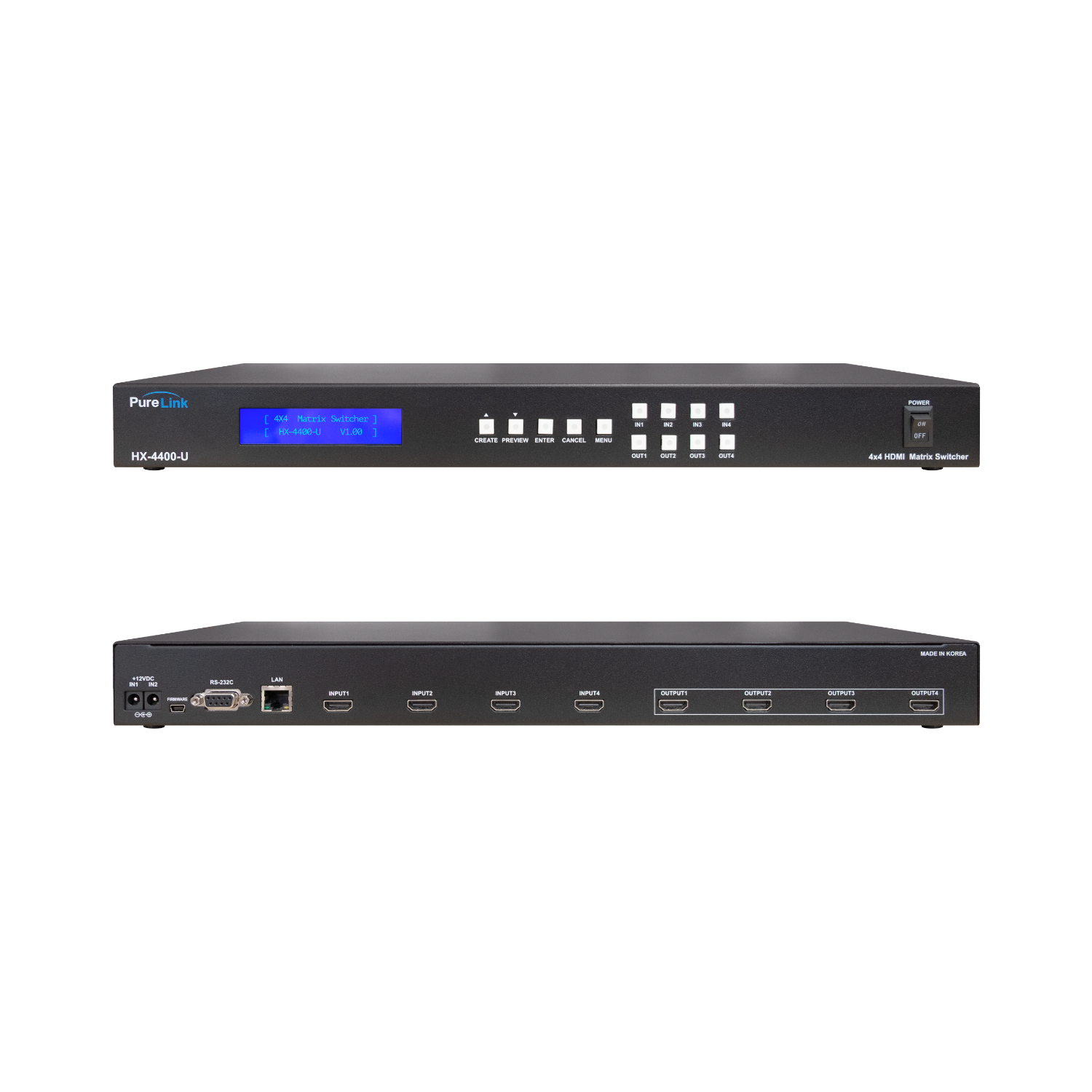

The HDTools™ HX-4400-U provides switching of up to four (4) HDMI inputs and outputs with support for Ultra HD/4K signals, multiple control options, and advanced EDID management.
Couple the HX-4400-U with our iCON Control System for easy implementation of Video/Audio/IR/RS232 matrixing and control of your space.
Key Features
- 4×4 HDMI Matrix Switching
- Resolutions up to 4K60 (YCbCr 4:2:0)
- Full 3D & 48-Bit Deep Color
- HDCP Compliant
- EDID emulation and selectable presets
- Control via front panel display, RS-232, and LAN
- Compatible with third party control devices including AMX, Extron, Vista, and Crestron
- Field-upgradeable firmware
Specifications
| Hardware |
|
| Cabling |
HDMI |
| Input Signal Type(s) |
4 × HDMI |
Performance |
|
| Supported Resolutions |
Up to 4K@50/60Hz (4:2:0), 4K@30Hz (4:4:4), 1080p@60Hz |
| Compliance |
HDMI 1.4, HDCP 2.0 |
| Data Transfer Rate |
10.2 Gbps |
| RS-232 |
Yes |
| LAN |
Yes |
| Power Supply |
DC 12V, 5A |
| Operating Temperature |
32° to 117°F / 0° to 47°C |
| Storage Temperature |
-40° to 158°F / -40° to 70°C |
| Relative Humidity |
0–90% non-condensing |
| MTBF |
95,000 hours |
Enclosure |
|
| Enclosure Type |
All-metal construction with black powder-coated finish |
| Product Dimensions |
19.0 × 8.0 × 1.7 in |
| Product Weight |
6.7 lbs |
Warranty |
|
| Warranty |
Limited Warranty, 3 Years |
TAA
Discontinued
