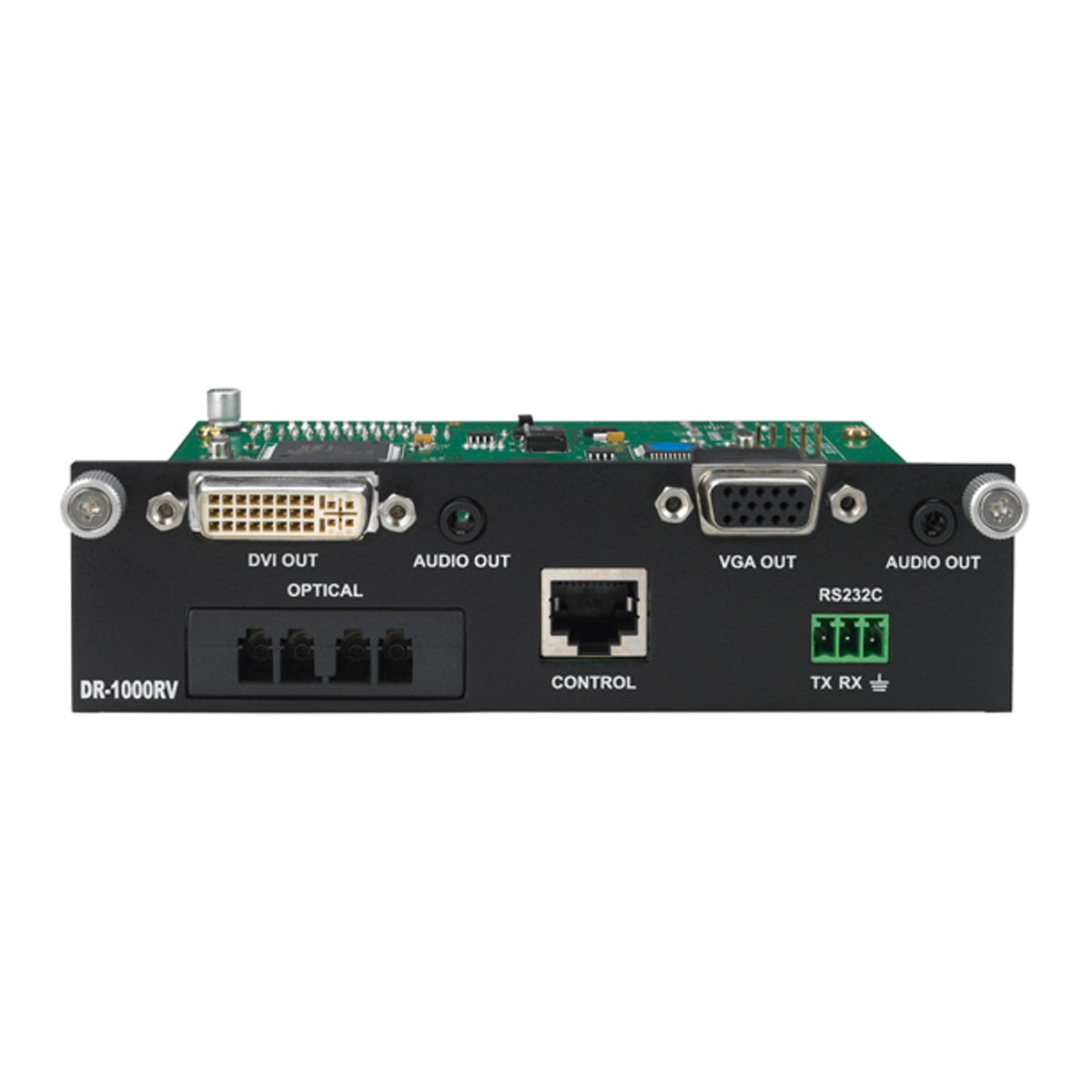

The DR1000RV is RF6 module board receiver. It provides a very easy and reliable solution for extending uncompressed HD Video, audio, and control signals up to 5,000 feet (1,530 meters) via 4 strand fiber optic cables. Rack mounting and video out selection between DVI and VGA are available.
Finally, PureLink brings order to the chaos of the modular extension category. Up till now, modular extension modules have all been too small for rack mounting, creating a messy, cluttered jumble of small black boxes in the rack. PureLink is pleased to introduce the breakthough PureLink RF6T and RF6R rack mount assembly for extension modules, plus a new series of smaller transmitters and receivers designed for slot-loading into the chassis. Able to mix fiber optic and CAT5 extensions, the new RF Series features power supply for up to six modules per chassis, eliminating a lot of small adapter type power supplies, housed in a 1RU rack housing. Performance, reliability, and value. PureLink is first again with this exclusive new way to deal with extension system modules.
Specifications
| Performance |
|
| Supported Distance |
Up to 3,300 ft at 1080p@60Hz; up to 5,000 ft at 1080i |
| Supported Resolutions |
Up to 1920 × 1200@60Hz, 1080p@60Hz |
| Data Transfer Rate |
1.65 Gbps for DVI-D; 2.25 Gbps for HDMI |
| Power Consumption |
8W |
| Power Supply |
DC 12V, 5A |
| Operating Temperature |
32° to 117°F / 0° to 47°C |
| Storage Temperature |
-40° to 158°F / -40° to 70°C |
| Relative Humidity |
0–90% non-condensing |
| MTBF |
50,000 hours |
Connections |
|
| Connector Type(s) |
1 × DVI-D female, 1 × VGA, 1 × RJ45, 1 × 3.5mm stereo audio, 4 × LC fiber, 1 × RS-232 |
Warranty |
|
| Warranty |
Limited Warranty, 3 Years |
