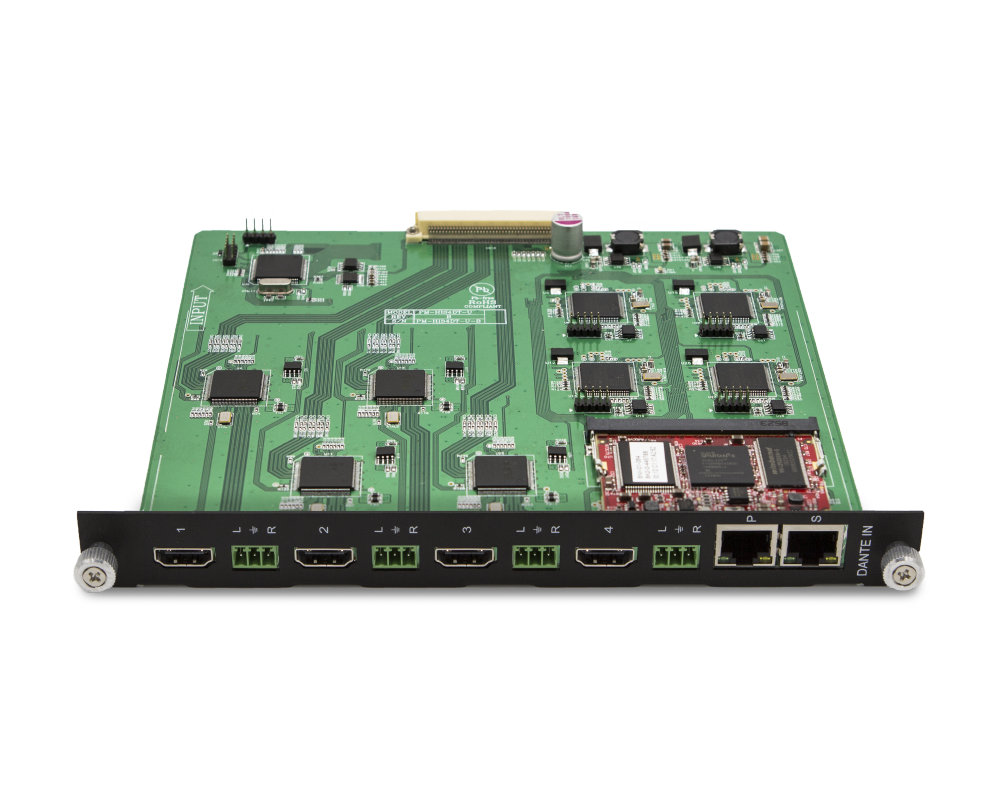

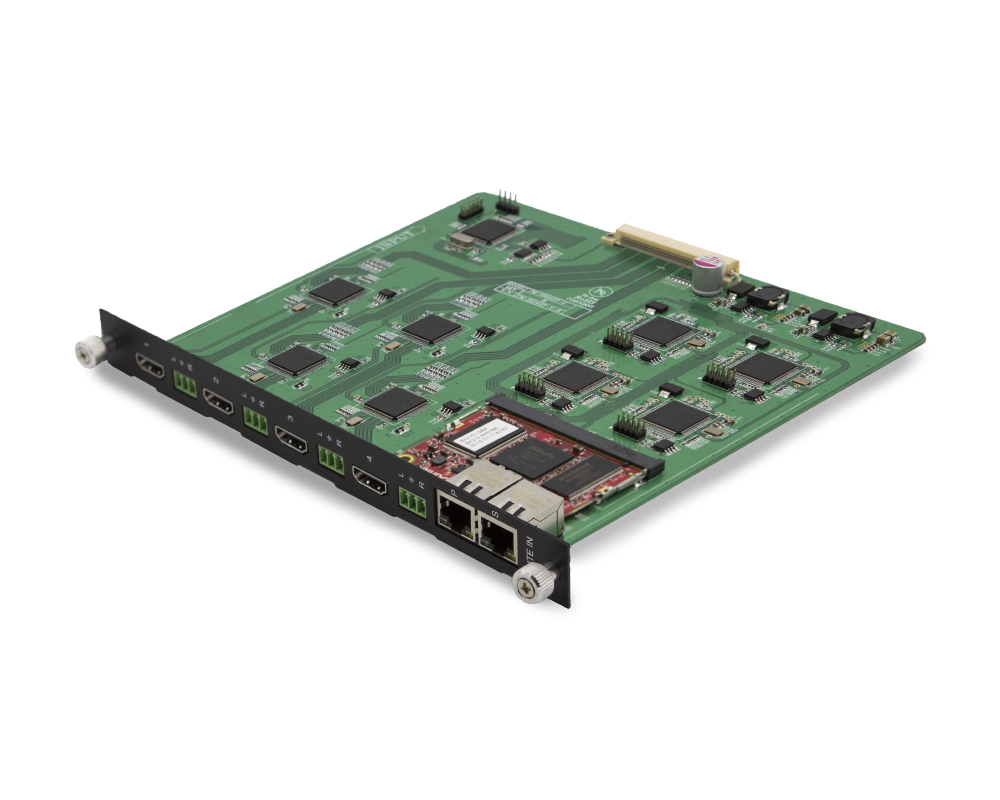

The MAX-AI-DA is a Dante™ Audio with HDMI 2.0 ports input card for Media Axis™ supporting 4K/60 4:4:4 resolutions and Dante™/AES67 IP audio. Each MAX-AI-DA has primary and secondary RJ-45 ports for IP audio, four HDMI ports, and four stereo unbalanced analog ports.
Key Features
- Dante™ or AES67 selectable via software
- Primary and secondary IP Audio ports
- Selectable IP audio latency
- Four HDMI ports
- Supports up to 4K 60Hz 4:4:4 resolutions
| Core Technologies |
|
| PureBred™ Design |
A wholly transformative platform that allows baseband signals to be distributed beyond its local wired connections, providing maximum scalability and flexibility. |
| AirLift™ Cooling System |
Lateral air flow/direct cooling of matrix powered by modular blade units, each composed of eight fans. |
| Omni-Flex™ |
A fully modular and adaptive design with chassis configurations from 20×20 to 216×216 that combines hot-swappable, field-upgradeable components with flexible, platform-agnostic functionalities. |
| Motore™ 2.0 |
Full-featured 4K/60 4:4:4 media processing and auto-scaling with frame-rate conversion available at every output. |
| iAxis™ |
Detachable front-panel tablet control for wireless/mobile command of the Media Axis' matrix and IP switching capabilities from anywhere at any time. |
Specifications
| Technical Specifications |
|
| Connector Types |
4 × Female HDMI Type A inputs, 4 × Stereo unbalanced analog audio inputs via 3-pin Phoenix connectors, 2 × RJ45 ports for primary and secondary IP audio connections |
| Digital Audio Formats |
LPCM, 8-channel |
| Operation Standard |
HDMI 2.0 |
| Maximum Resolution |
Up to 4K@60Hz 4:4:4 |
| HDCP Compatibility |
HDCP 2.2 |
| Single Board Weight |
1 lb / 0.45 kg |
| Maximum Pixel Clock |
300MHz |
| Equalization |
Auto |
| IP Audio Transmitter Type |
Dante/AES67, software-selectable |
| IP Output Channels |
32-channel HDMI audio |
| IP Audio Format |
Uncompressed, 24-bit, 48kHz |
| IP Audio Latency |
Selectable: 0.25ms, 0.5ms, 1.0ms, 2.0ms, 5.0ms |
TAA
