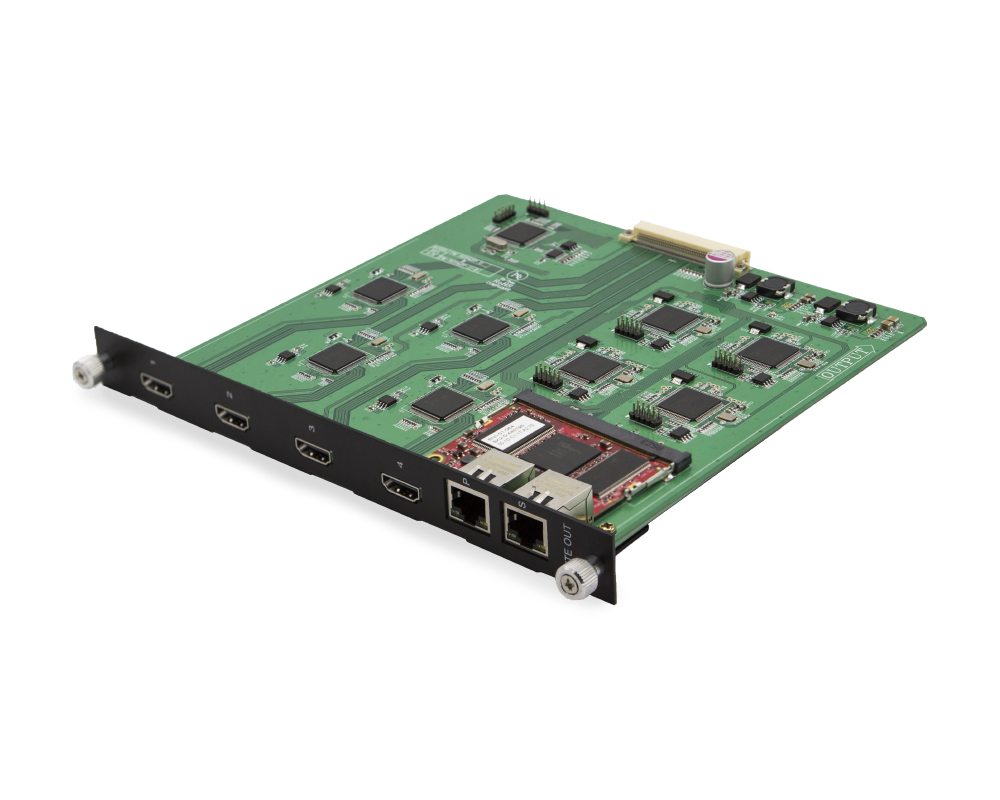

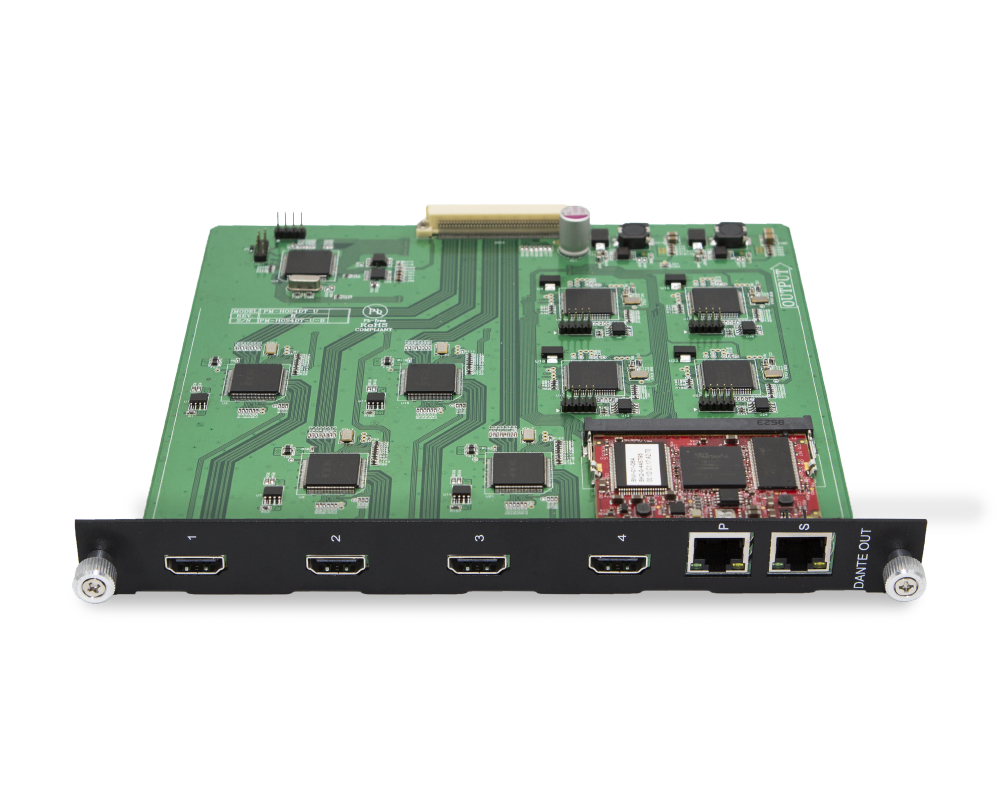

4K60 Dante Audio with HDMI 2.0 Output Card for Media Axis™

MAX-AO-DA

TAA/NDAA

Category	Title	Version
Product Sheet	MAX-AO-DA — Product Sheet	1.0	Download
Comparison Chart	Media Axis vs. Media Axis 2 (MAX2) — Comparison Chart	1.0	Download
User Manual	Media Axis Matrix Switchers — User Manual	1.5	Download
Driver	MAX-Tools — Driver	1.0	Download
Product Catalog	Media Axis — Product Catalog	2.3	Download

Core Technologies
PureBred™ Design	A wholly transformative platform that allows baseband signals to be distributed beyond its local wired connections, providing maximum scalability and flexibility.
AirLift™ Cooling System	Lateral air flow/direct cooling of matrix powered by modular blade units, each composed of eight fans.
Omni-Flex™	A fully modular and adaptive design with chassis configurations from 20×20 to 216×216 that combines hot-swappable, field-upgradeable components with flexible, platform-agnostic functionalities.
Motore™ 2.0	Full-featured 4K/60 4:4:4 media processing and auto-scaling with frame-rate conversion available at every output.
iAxis™	Detachable front-panel tablet control for wireless/mobile command of the Media Axis' matrix and IP switching capabilities from anywhere at any time.

Technical Specifications
Connector Types	4 × Female HDMI Type A outputs, 4 × Stereo unbalanced analog audio inputs via 3-pin Phoenix connectors, 2 × RJ45 ports for primary and secondary IP audio connections
Digital Audio Formats	LPCM, 8-channel
Operation Standard	HDMI 2.0
Maximum Resolution	Up to 4K@60Hz 4:4:4
HDCP Compatibility	HDCP 2.2
Single Board Weight	1 lb / 0.45 kg
Maximum Pixel Clock	300MHz
Equalization	Auto
IP Audio Transmitter Type	Dante™/AES67, software-selectable
IP Output Channels	32-channel HDMI audio
IP Audio Format	Uncompressed, 24-bit, 48kHz
IP Audio Latency	Selectable: 0.25ms, 0.5ms, 1.0ms, 2.0ms, 5.0ms
