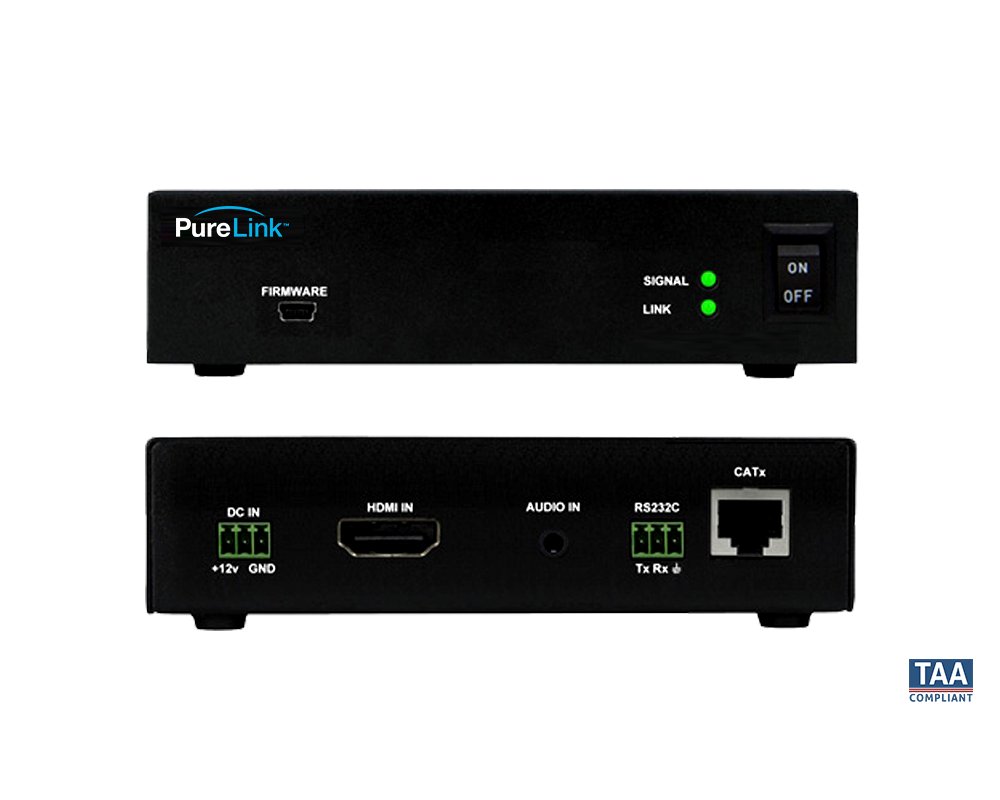

4K60 HDMI 2.0 over HDBaseT™ Extender - Transmitter

Media Axis Transmitters

4K60 HDMI 2.0 over HDBaseT™ Extender - Transmitter

Name: 4K60 HDMI 2.0 over HDBaseT™ Extender - Transmitter
Brand: PureLink
SKU: MAX-CT101

MAX-CT101

TAA

Contact us Find a dealer Test drive this product

Category	Title	Version
Product Sheet	MAX-CT101 — Product Sheet	1.0	Download
Other	Media Axis vs. Media Axis 2 (MAX2) — Comparison Chart	1.0	Download
User Manual	Media Axis HDBaseT Extenders — User Manual	1.2	Download
User Manual	Media Axis Matrix Switchers — User Manual	1.5	Download
Software	MAX-Tools — Driver	1.0	Download
Product Catalog	Media Axis — Product Catalog	2.3	Download

The Media Axis™ MAX-CT101 extender transmitter provides powerful and reliable extension of Ultra HD/4K video, audio, and control signals up to 330 ft. over a single CATx cable. The MAX-CT101 connects directly to the HDBaseT™ input board (MAX-CI) of Media Axis™ switchers and can be controlled remotely via bi-directional IR, RS-232, and LAN.

Key Features

HDMI 2.0 over HDBaseT™ Transmitter for Media Axis™
Supports distances up to 330 ft. (100m)
Connect directly to the Media Axis™ HDBaseT™ input board
Remote control via bi-directional IR, RS-232, and LAN

Core Technologies
PureBred™ Design	A wholly transformative platform that allows baseband signals to be distributed beyond its local wired connections, providing maximum scalability and flexibility.
AirLift™ Cooling System	Lateral air flow/direct cooling of matrix powered by modular blade units, each composed of eight fans.
Omni-Flex™	A fully modular and adaptive design with chassis configurations from 20×20 to 216×216 that combines hot-swappable, field-upgradeable components with flexible, platform-agnostic functionalities.
Motore™ 2.0	Full-featured 4K/60 4:4:4 media processing and auto-scaling with frame-rate conversion available at every output.
iAxis™	Detachable front-panel tablet control for wireless/mobile command of the Media Axis' matrix and IP switching capabilities from anywhere at any time.

Specifications

Hardware
Input Signal Type(s)	HDMI and analog stereo with Deep Color, 3D, and 4K
Output Signal Type(s)	HDBaseT with Deep Color, 3D, and 4K
Performance
Supported Distance	330 ft / 100 m
Supported Resolutions	Up to Ultra HD/4K (4096 × 2160, 4:4:4@50/60Hz)
Compliance	HDMI 2.0, HDCP 2.2
Supported Audio Formats	Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS, DTS-ES, DTS 96/24, DTS-HD High Resolution, DTS-HD Master Audio, LPCM up to 8 channels
Power Consumption	DC 12V, 10W max
Enclosure
Product Weight	1.5 lbs / 0.68 kg
Warranty
Warranty	Limited Warranty, 3 Years
