| Standards & Compliance |
|
| Signal Standards |
HDMI 2.0 |
| Compliance |
TAA |

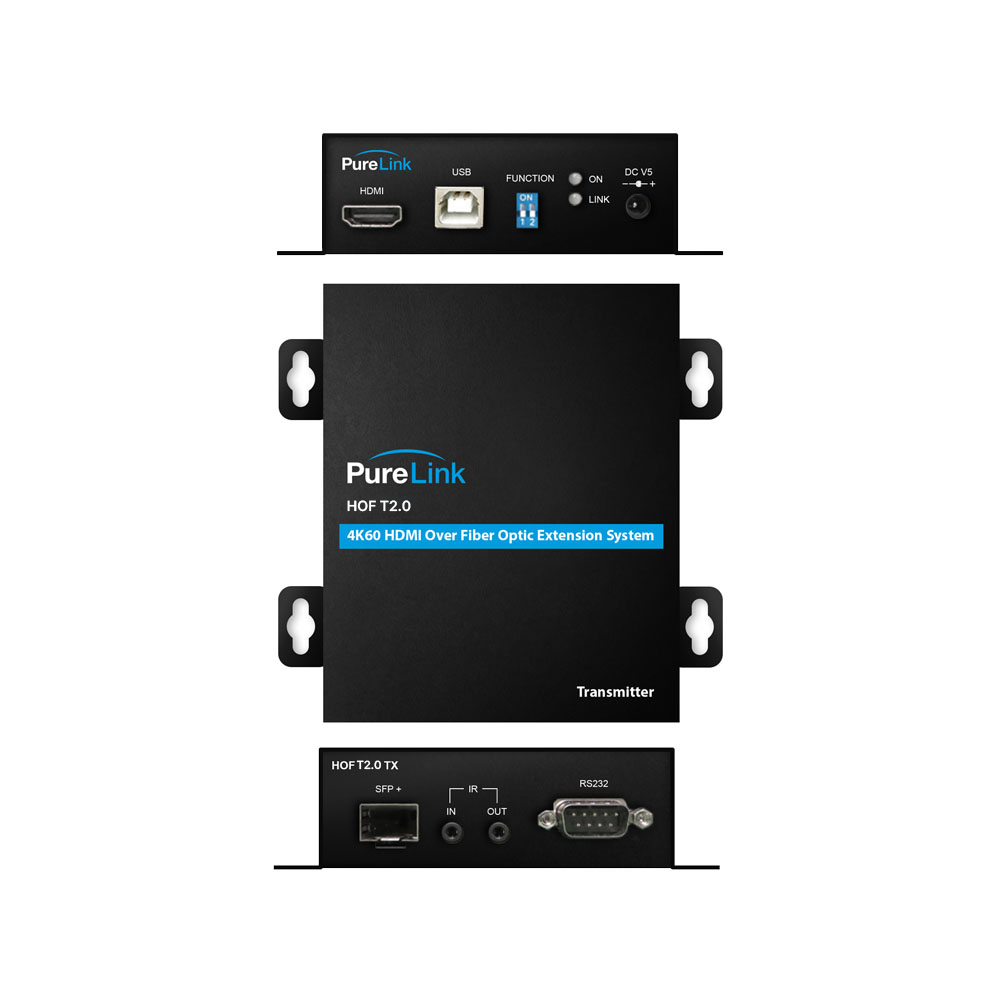

Transmitter Connector Types
|
|
| HDMI Inputs - TX |
1 × HDMI IN (Type A, 19-pin female) |
| Fiber Outputs - TX |
1 × 2LC Female |
| IR In - TX |
1 × 3.5mm TRS |
| IR Out - TX |
1 × 3.5mm TRS |
| RS-232 - TX |
1 × DB9 female |
| USB Host - TX |
1 × USB B |
| SFP Module Type - TX |
SFP 10G+ Fiber module |

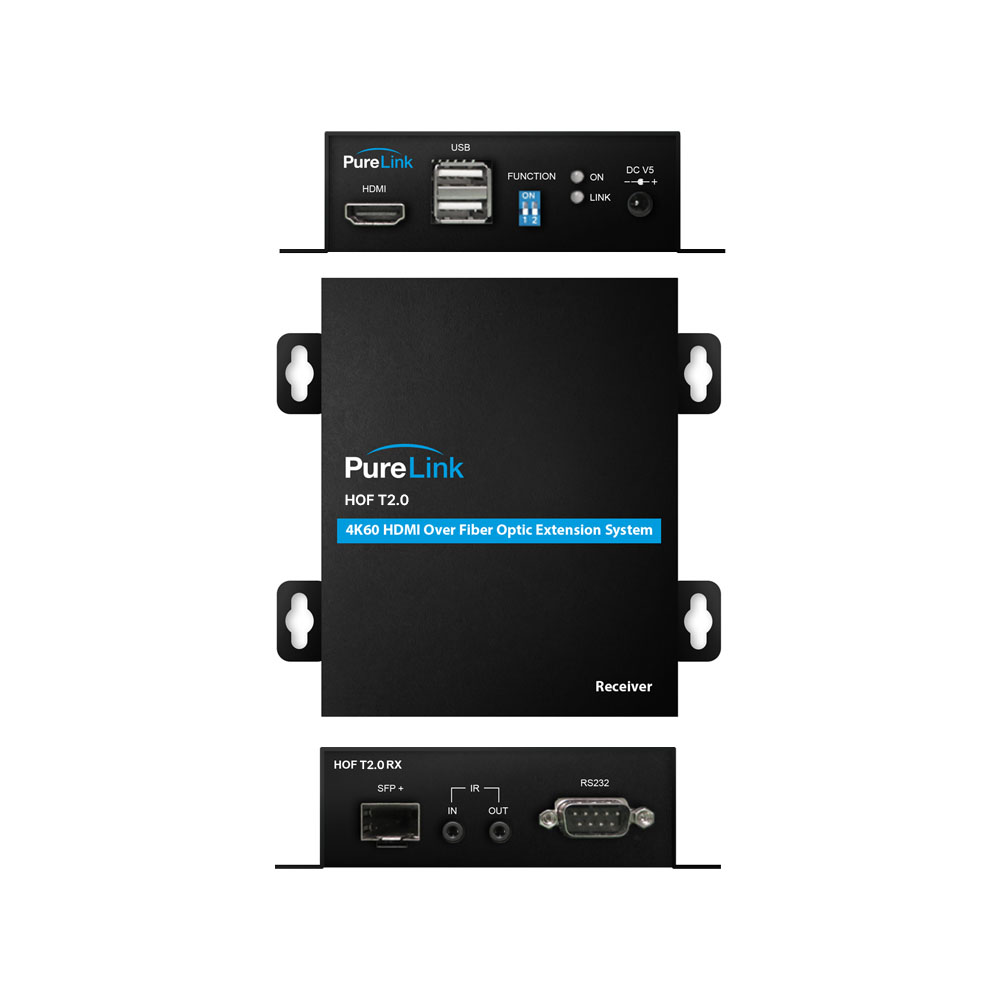

Receiver Connector Types
|
|
| HDMI Outputs - RX |
1 × HDMI OUT (Type A, 19-pin female) |
| Fiber Inputs - RX |
1 × 2LC Female |
| IR In - RX |
1 × 3.5mm TRS |
| IR Out - RX |
1 × 3.5mm TRS |
| RS-232 - RX |
1 × DB9 male |
| USB Devices - RX |
2 × USB A |
Performance
|
|
| Fiber Transmission Distance |
Multi Mode: 300m, Single Mode: 2km
|
| Max Video Resolution |
4K60 (4:4:4) |
| Video Bandwidth |
18 Gbps |
| Color Space |
RGB, YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0
|
| Color Depth |
8-bit, 10-bit, 12-bit
|
| HDR |
HDR |
| HDCP |
HDCP 1.4, HDCP 2.2
|
| Dolby Vision |
Dolby Vision |
| HDMI Audio Formats |
LPCM 7.1 audio, Dolby Atmos, Dolby TrueHD, DTS-HD Master Audio, DTS:X
|
| RS-232 Support |
Yes |
| RS-232 Baud Rate |
115200 bps |
| IR |
Bi-directional |
Power Transmitter
|
|
| Power Input |
DC 5V/2A |
| Power Supply |
AC 100 - 240V 50/60Hz |
| Power Consumption |
5W (max) |
Power Receiver
|
|
| Power Input - RX |
DC 5V/2A |
| Power Supply - RX |
AC 100 - 240V 50/60Hz |
| Power Consumption - RX |
5W (max) |
Environment
|
|
| Operating Temperature |
14 to 113°F / -10 to 45°C |
| Storage Temperature |
-22 to 158°F / -30 to 70°C |
| Relative Humidity |
0 to 95% |
|
Enclosure
|
|
| Product Dimensions (W × D × H) |
TX: 4.31 in × 4.51 in × 1.18 in (109.6mm × 114.5mm × 30mm) , RX: 4.31 in × 4.51 in × 1.18 in (109.6mm × 114.5mm × 30mm)
|
| Weight |
TX: 0.60 lbs (270g), RX: 0.60 lbs (270g)
|
|
Warranty
|
|
| Parts |
3 year |
| Labor |
3 year |
TAA
