The Huddle-Cam-500 provides sharp and brilliant rich imagery with its 4K high quality optics PTZ camera, with intelligent Auto Tracking. What sets the Huddle-Cam-500 apart from other all in one camera / soundbar / microphone solutions is the attention to quality.
The camera section has true mechanical Pan / Tilt, allowing it to move and track the presenter without typical degradation of image quality in cameras that only use e-pan / tilt. This allows maximum use of the 4K resolution chip and optics.
The built in microphone array focuses on the current presenter using 3A algorithms, up to 18 feet away, providing clear and precise audio. Additional optional table top microphones can be added to expand the pickup range for larger meeting rooms.
The speaker bar utilizes a full range driver and a bass reflex port, reproducing clear high quality sound.
The Huddle-Cam-500 easily connects to your laptop by its USB-C connection, and is automatically identified as your camera/speaker/microphone hardware, making it a plug and play upgrade to your current meeting room for easy simple connections to Microsoft Teams, Google Meet, Zoom, GoToMeeting, and many others.
The Huddle-Cam-500 incorporates the latest in advanced Auto Tracking algorithms, and provides you selections of different modes of Auto Tracking such as Group Framing, Speaker Tracking and the latest technology of Smart Gallery, which provides individual images of each attendee at the conference table.
Key Features
- 4K Auto Framing / Tracking Camera with three modes including Smart Gallery
- Mechanical Pan / Tilt and 5× e-zoom movement and High Quality Optics
- 105 degree Field of View
- Beamforming / tracking microphone array with 18 ft range
- Add up to three extension microphone table pucks (optional) to increase range
- Works with Zoom, Teams, GoToMeeting, and more
- High performance speaker bar with bass reflex
- Full function remote control

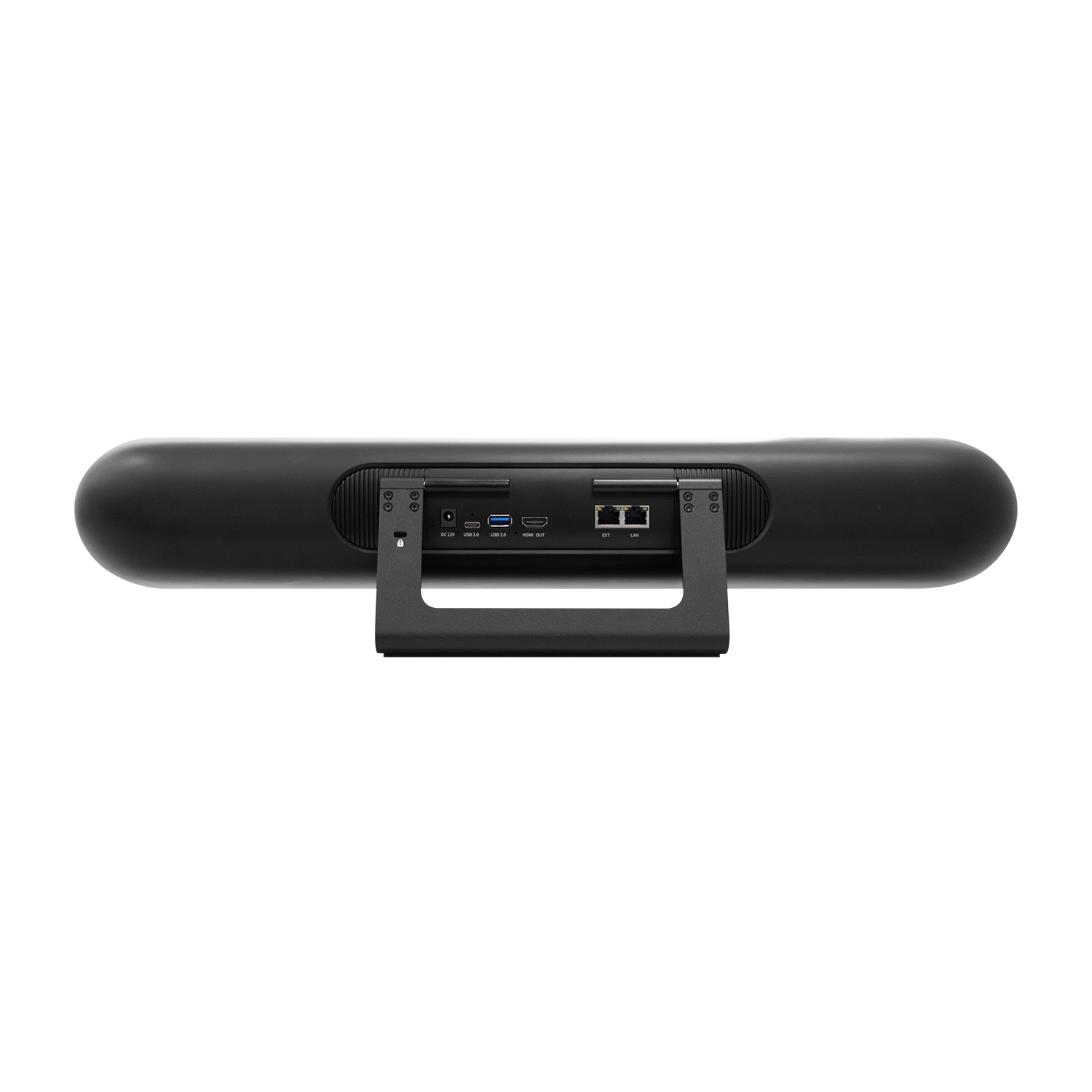

- HDMI and USB-C video / audio output
Specifications
| Standards & Compliance |
|
| Signal Standards |
HDMI 1.4b, USB-C (DP-Alt Mode), USB 3.0, USB 2.0
|
| HDCP |
HDCP 1.4, HDCP 2.2
|
| Regulatory Certifications |
CE, FCC, RoHS
|
Connector Types
|
|
| HDMI Outputs |
1 × HDMI OUT (Type A, 19-pin female) |
| USB Output |
1 × USB-C (DP-Alt Mode) |
| USB Devices |
1 × USB-A |
| LAN |
1 × RJ45 |
| EXT |
1 × RJ45 |
Performance
|
|
| Max Video Resolution |
4K30 |
| AI Autotracking |
Smart Gallery, Single-Speaker Framing, Group-Speaker Framing
|
| PTZ |
MPT, EPTZ
|
| Sensor |
1/1.8 in, CMOS, 20M pixel
|
| Lens |
120°(DFOV), 110°(HFOV), 5x Digital Zoom, Pan/Tilt ±15°
|
| Digital Noise Reduction |
2D & 3D Digital Noise Reduction |
| Video S/N |
≥55 dB |
| Backlight Compensation |
Support |
| Full Frequency Speaker |
96 dB SPL at .5m |
| Microphone Array |
Beamforming microphone, Pickup distance of up to 6 meters
|
| Extended Mic |
Support (Optional) |
| Video Compression |
H.264, MJPEG
|
| Pixel Format |
YUY2 |
| Audio 3A Algorithm |
AI-Powered AEC/ANC/AGC |
| Audio Compression |
AI-Powered AEC/ANC/AGC |
| Sampling Rate |
Mic: 48K, Speaker: 48K
|
| USB Audio |
32K Sampling Rate, UAC 1.0
|
| USB Communication Protocol |
UVC 1.1 |
| UVC PTZ Control |
Compatible |
| Focal Length |
f=2.8mm, F1.8
|
| PoE Support |
IEEE802.3at |
Power
|
|
| Power Input |
DC 12V/5A |
Environment
|
|
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Storage Temperature |
-40 to 140°F / -40 to 60°C |
Enclosure
|
|
| Rack Mounting Option |
Wall, Table
|
| Product Dimensions (W × D × H) |
23.6 in × 5.3 in × 4.53/4.6 in (600mm × 135mm × 115/117mm) |
| Weight |
1.96 lbs (887g) |
Warranty
|
|
| Parts |
1 year |
| Labor |
1 year |
