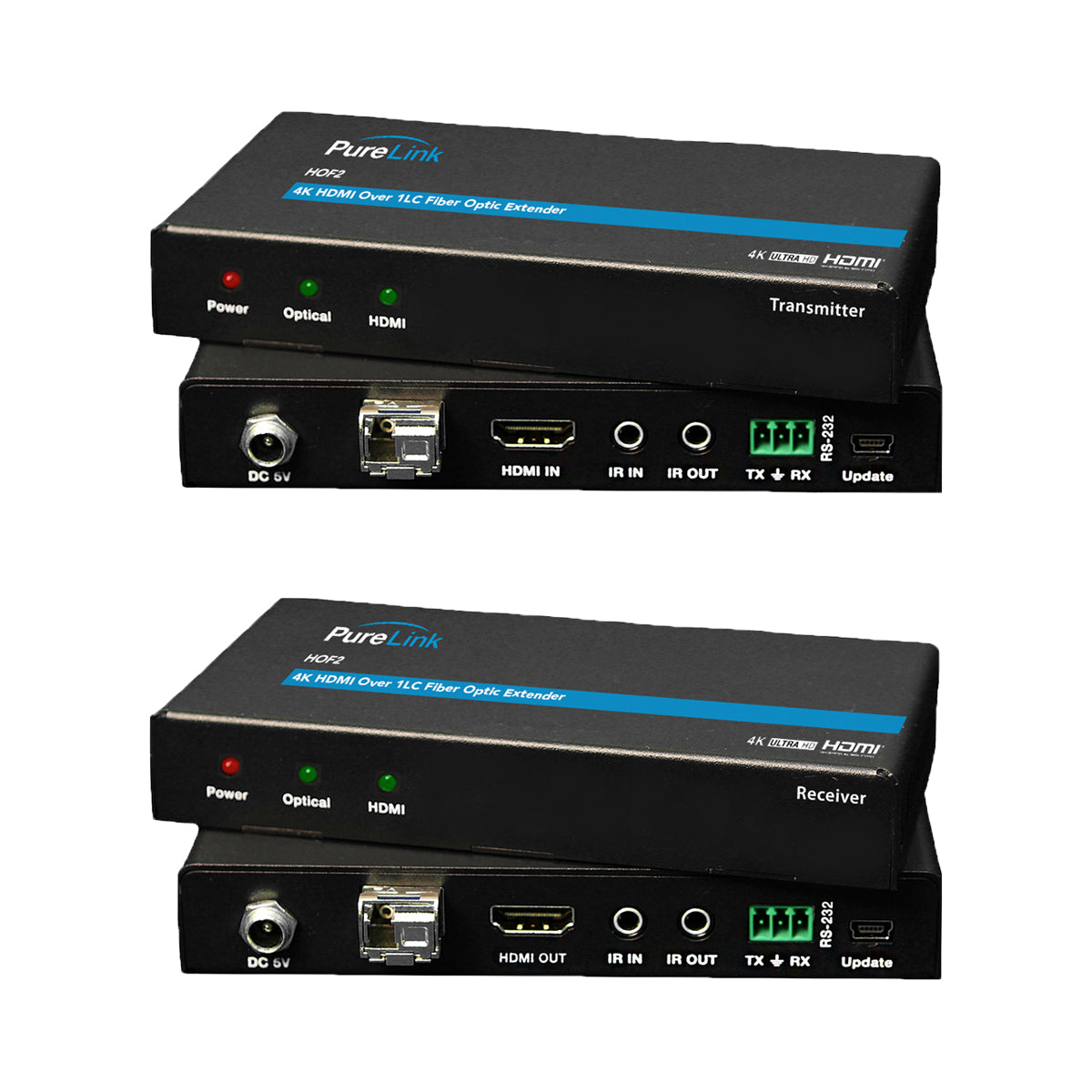

The HOF 2.0 Tx/Rx offers a powerful solution for long-distance distribution of 4K/60 video, audio, and control signals over fiber. Ultra HD/4K, HDMI 2.0 (18G), embedded audio, RS-232, and bi-directional IR are all supported over distances up to 3,300 ft. using PureLink's TOTALWIRE LC-terminated fiber optic cables. The pure fiber connection provides protection from electromagnetic interference (EMI), delivering lossless transport for optimal signal quality.

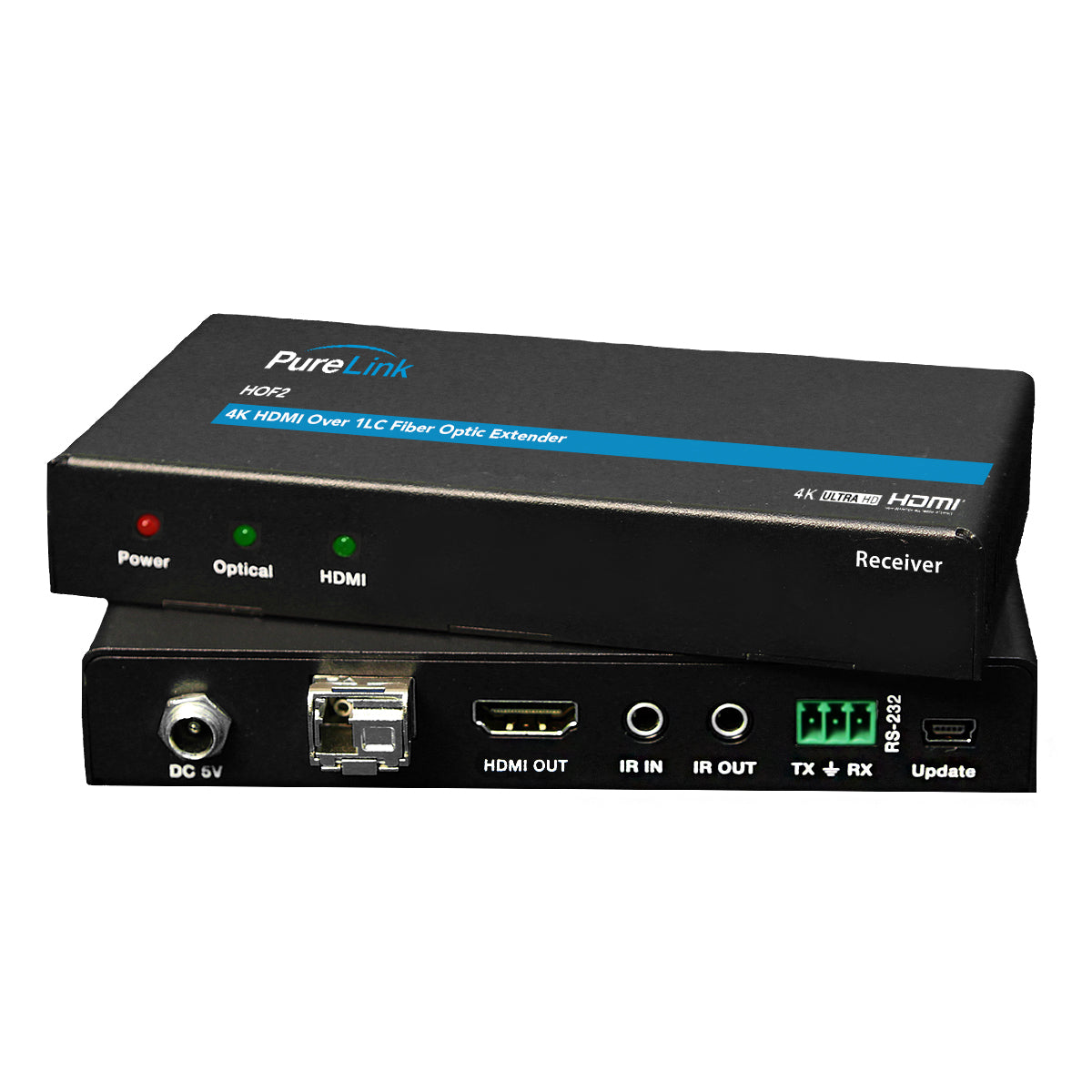

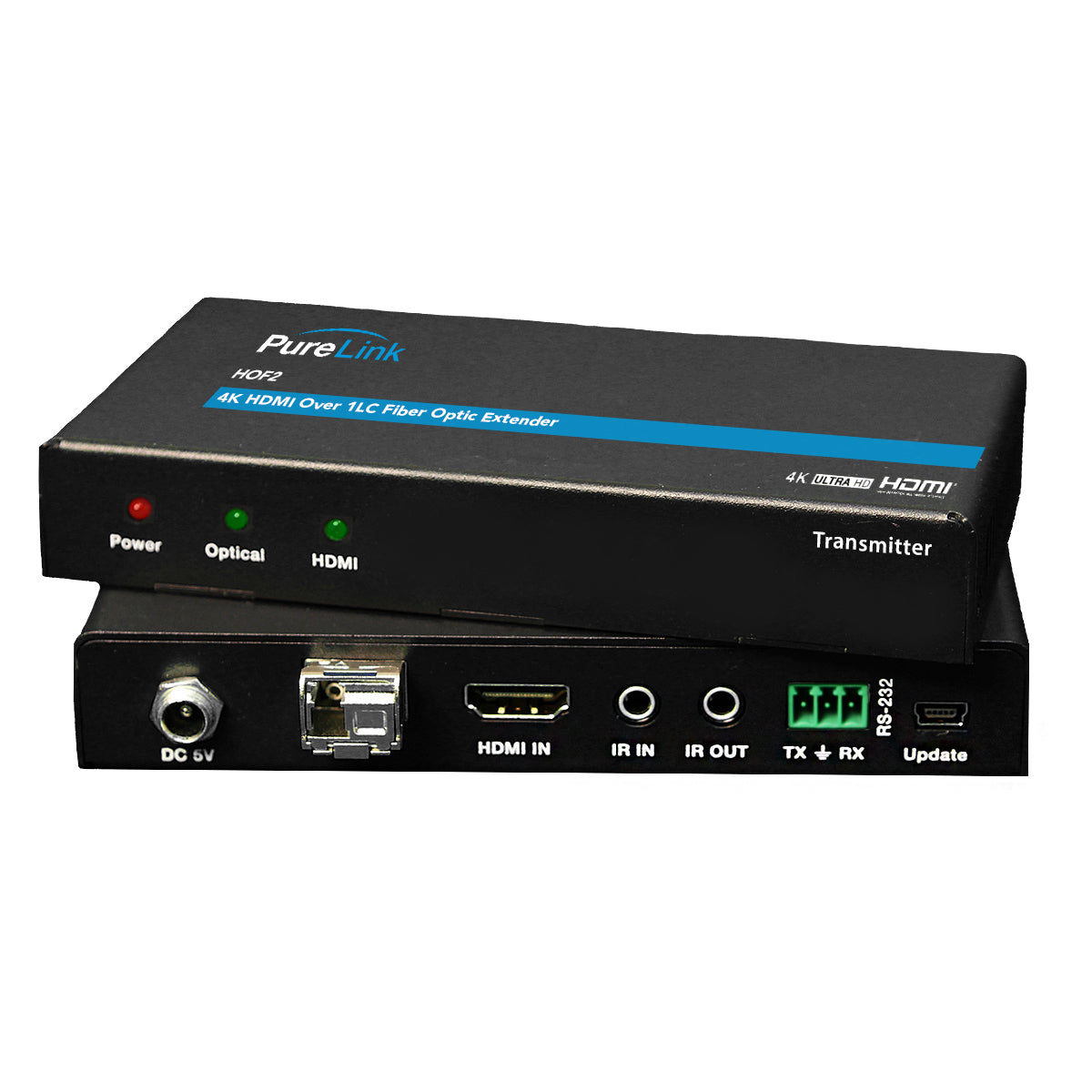

Individual units also available: HOF 2.0 Transmitter and HOF 2.0 Receiver
Key Features
- 4K60 (4:4:4) / 18Gbps / HDCP 2.2
- Extends up to 3300 ft. (1000 m.) over 1 LC single-mode fiber
- Dolby® Atmos, DTS-HD Master Audio, LPCM 2/5.1/7.1
- Bi-directional IR, RS-232
- Real-time Auto-EDID management
- Auto signal correction and enhancement
- Immune to EMI
- 1 LC SFP Modules
- Locking power supplies
Specifications
| Hardware |
|
| Audio |
LPCM 2/5.1/7.1 Ch, Dolby Digital+, Dolby TrueHD, Dolby Digital, Dolby Atmos, DTS:X, DTS-HD Master Audio, DTS 5.1 |
| Input Signal Type(s) |
TX: 1 × HDMI Type A [19-pin female]; RX: 1 × Optical Fiber [LC female] |
Performance |
|
| Supported Distance |
Up to 3300 ft / 1000 m over single-mode fiber; up to 1000 ft / 300 m over multi-mode fiber |
| Supported Resolutions |
Up to UHD/4K@50/60Hz (RGB 4:4:4, YCbCr 4:4:4, 4:2:2, 4:2:0) |
| Compliance |
HDMI 2.0, HDCP 2.2 |
| Power Consumption |
3W max |
| Power Supply |
5V/1A |
| RS-232 |
1 × RS-232 [Phoenix connector] |
| IR Extension |
1 × IR Input [3.5mm stereo mini-jack], 1 × IR Output [3.5mm stereo mini-jack] |
| Operating Temperature |
32° to 117°F / 0° to 47°C |
| Storage Temperature |
-4° to 140°F / -20° to 60°C |
| Relative Humidity |
0 to 90% non-condensing |
| HDR Support |
HDR10 (4K/60, 4:4:4), Dolby Vision (4K/30, 4:4:4) |
| Color Depth |
8/10/12-bit |
| MTBF |
50,000 hours |
Enclosure |
|
| Product Dimensions |
4.31 in × 4.51 in × 1.18 in / 109.6mm × 114.5mm × 30mm |
| Product Weight |
0.5 lbs / 0.26 kg |
Warranty |
|
| Warranty |
3 Year |
