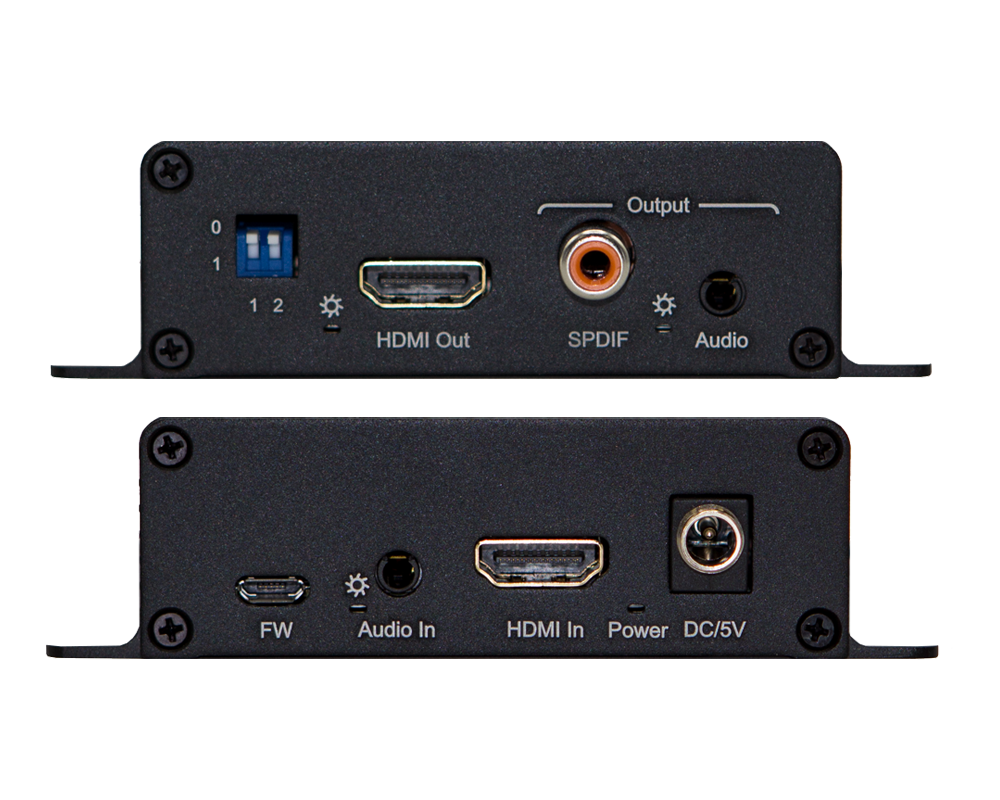

The HEMEXA provides HDMI audio embedding and extraction without disrupting video performance, all in a compact package. Processing resolutions up to 4K60 with 18 Gbps bandwidth and HDCP 2.2/1.4, the HEMEXA delivers reliable audio integration for a wide range of AV applications.

The HEMEXA enables embedding of 2-channel analog stereo audio into an HDMI signal, or extraction of 2-channel analog stereo or 5.1-channel PCM audio from HDMI. Compatible with uncompressed PCM, DTS-HD Master Audio, and Dolby TrueHD, the HEMEXA fits perfectly in applications requiring flexible audio processing, such as conferencing, education, live events, broadcast, rental/staging, and house of worship.

Key Features

• Processes HDMI signals up to 4K60 (18 Gbps bandwidth)
• Embeds 2-channel analog PCM audio into HDMI signals
• Extracts HDMI audio to 2-channel analog stereo or 5.1-channel S/PDIF output
• Compatible with uncompressed PCM, DTS-HD Master Audio, and Dolby TrueHD
• Compatible with HDCP 2.2/1.4
• Compact, installer-friendly design for portable and fixed installations
• Ideal for conferencing, education, live events, broadcast, and staging applications
• HDMI CEC pass-through


Specifications
