PureMedia Receivers

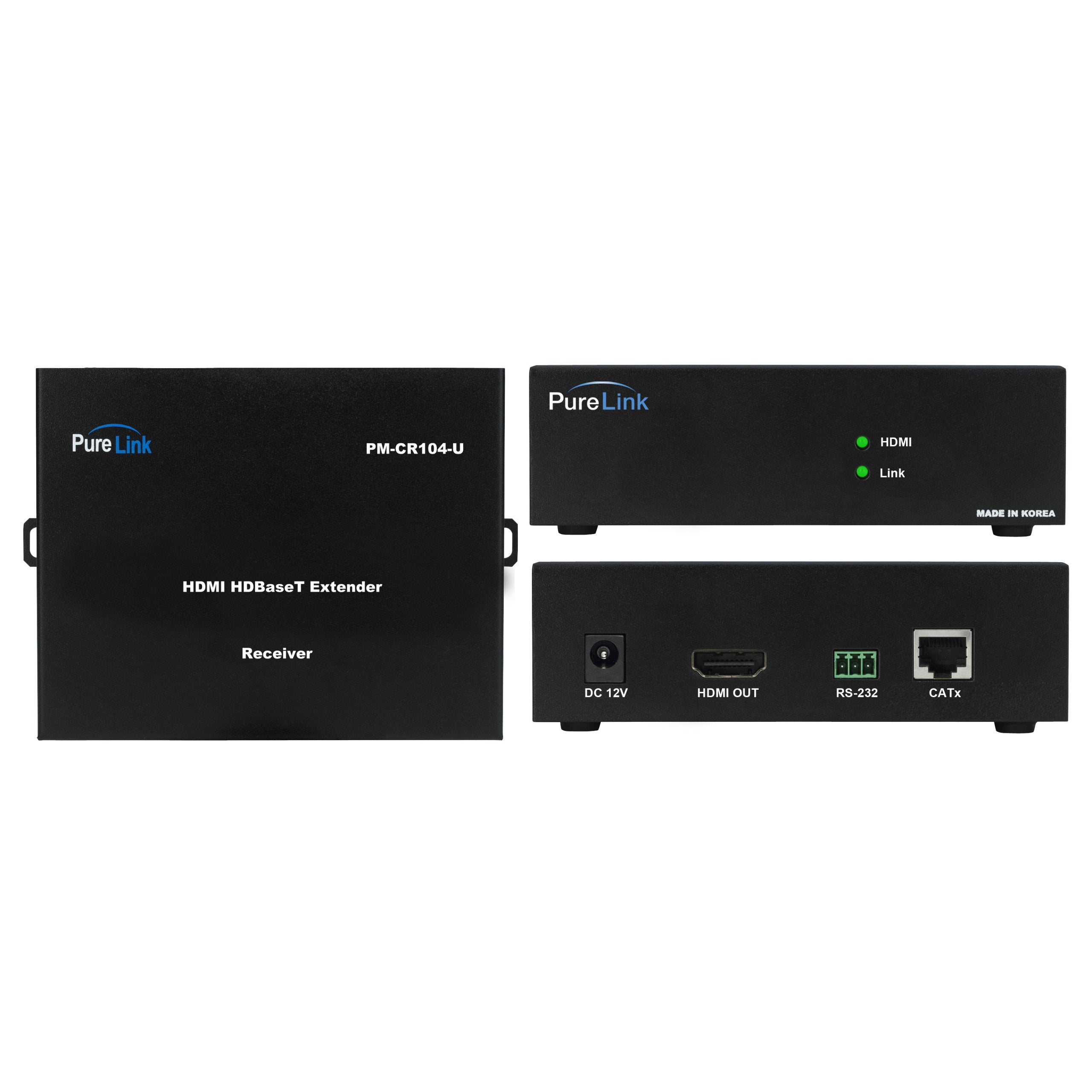

4K HDMI over CATx (HDBaseT) Receiver

PM-CR104-U

TAA/NDAA

Category	Title	Version
User Manual	PureMedia Matrix Switchers — User Manual	2.1	Download
Operation Manual	PureMedia — Operation Troubleshooting Guide	1.0	Download
Driver	PM-Tools — Driver	1.0	Download
User Manual	PM-Tools — User Manual	1.0	Download
Driver	PM-Crestron — Driver	1.0	Download
Product Catalog	PureMedia — Product Catalog	1.0	Download
Product Catalog	TAA — Product Catalog	1.3	Download

Connections
Connector Type(s)	1 × HDMI 19-pin female, 1 × RJ45 jack, 1 × 3-pin 3.5mm terminal block for RS-232
Performance
Distance	330 ft / 100 m at 1920 × 1200@60Hz, 1080p, or Ultra HD 4K
Resolutions	Up to 4K@30Hz (4:4:4), 1080p@60Hz
HDCP Compliance	HDCP 2.0
Compliance	DVI 1.0, HDMI 1.4b, HDBaseT
Data Transfer Rate	3.4 Gbps per channel, 10.2 Gbps total max
Power Consumption	4.8W max
Power Supply	DC 12V
Operating Temperature	32° to 117°F / 0° to 47°C
Storage Temperature	-40° to 158°F / -40° to 70°C
Relative Humidity	0–90% non-condensing
MTBF	50,000 hours
Enclosure
Product Dimensions	3.94 × 2.4 × 0.6 in / 100 × 60 × 14 mm
Product Weight	0.6 lbs / 0.27 kg
Warranty
Warranty	Limited Warranty, 3 Years

Specifications
