| Standards & Compliance |
|
| Signal Standards |
HDMI 2.0 |

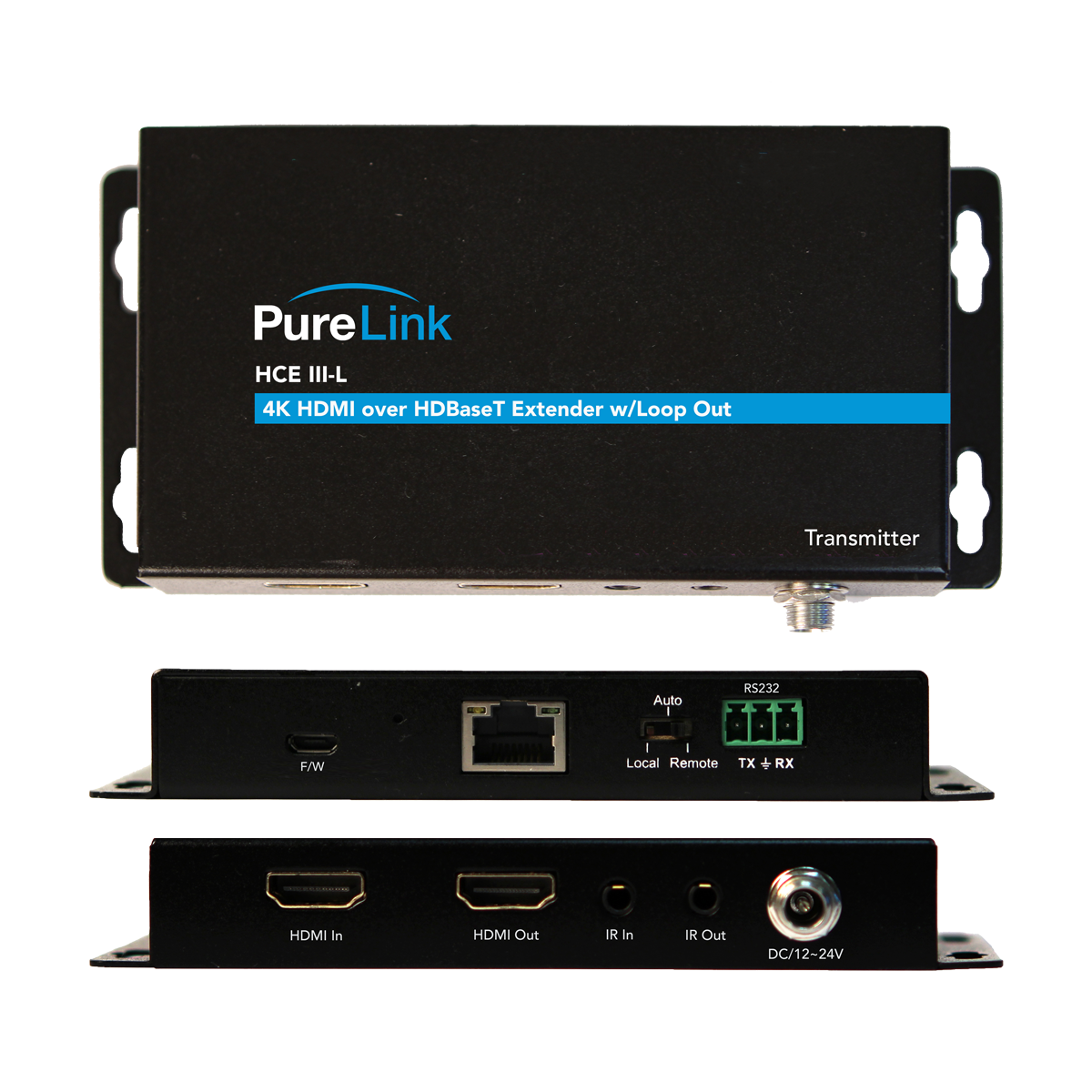

Transmitter Connector Types
|
|
| HDMI Inputs - TX |
1 × HDMI IN (Type A, 19-pin female) |
| HDMI Output - TX |
1 × HDMI OUT (Type A, 19-pin female) |
| CATx - TX |
1 × LAN (RJ45) |
| IR In - TX |
1 × 3.5mm TRS |
| IR Out - TX |
1 × 3.5mm TRS |
| RS-232 - TX |
1 × 3.5mm 3-pin Phoenix |
| Service - TX |
1 × Micro USB |

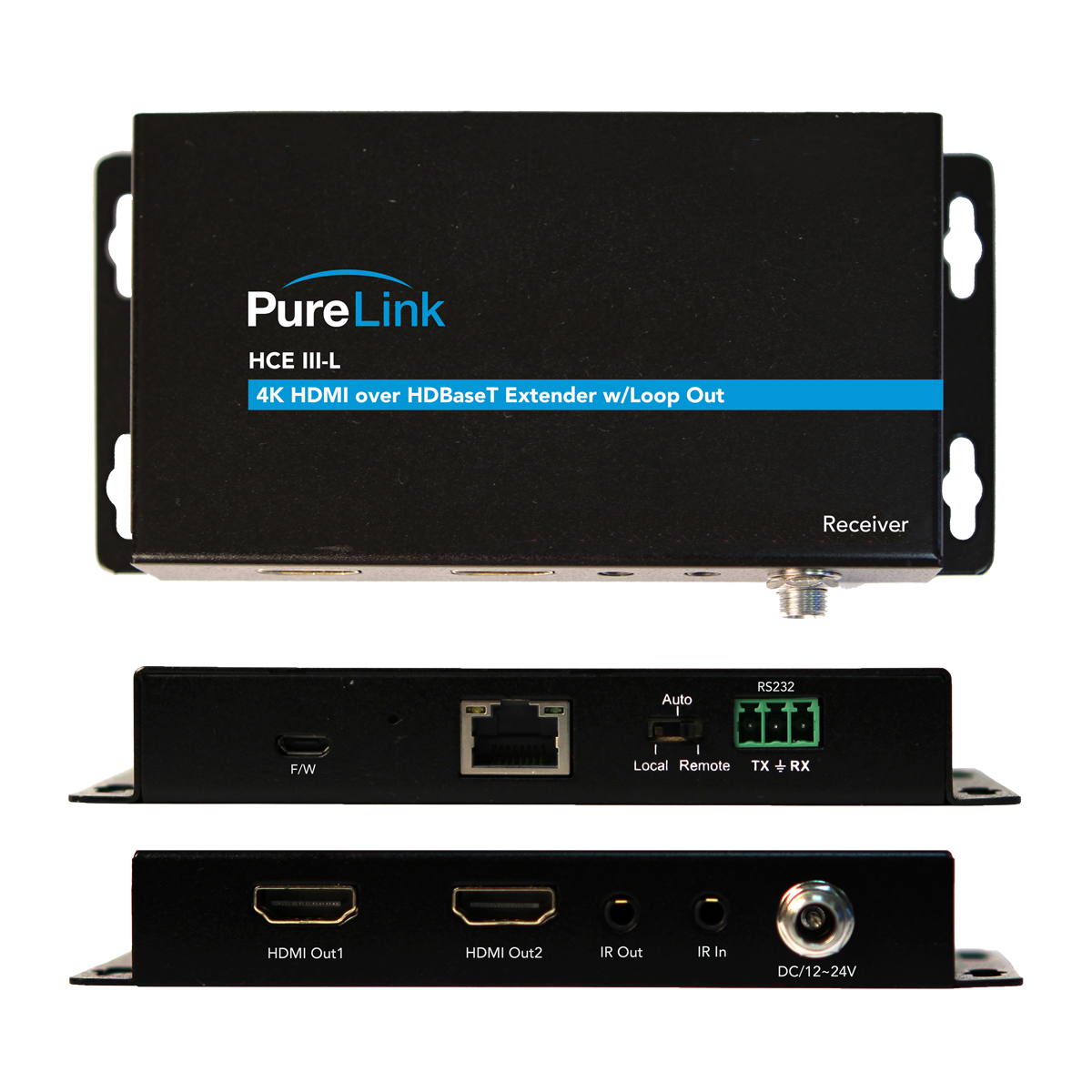

Receiver Connector Types
|
|
| HDMI Outputs - RX |
2 × HDMI OUT (Type A, 19-pin female) |
| CATx - RX |
1 × LAN (RJ45) |
| IR In - RX |
1 × 3.5mm TRS |
| IR Out - RX |
1 × 3.5mm TRS |
| RS-232 - RX |
1 × 3.5mm 3-pin Phoenix |
| Service - RX |
1 × Micro USB |
Performance
|
|
| CATx Transmission Distance |
4K2K@60: 40m, 1920 × 1200 @ 60Hz or 1080P@60Hz: 70m
|
| Max Video Resolution |
4K60 (4:4:4) |
| Video Bandwidth |
18 Gbps |
| Color Space |
YUV 4:4:4 |
| HDR |
HDR 10 |
| HDCP |
HDCP 1.4, HDCP 2.2
|
| HDMI Audio Formats |
DTS-HD, Dolby TrueHD
|
| Max Data Rate |
10.2 Gbps |
| Input TMDS Signal |
0.5 - 1.0 V [peak-to-peak] |
| Input DDC Signal |
5 V [peak-to-peak, TTL] |
| IR |
Bi-directional |
| Cable Type (CatX) |
CAT 5e , CAT 6
|
| MTBF |
90% at over 50,000 hours aging test |
Power Transmitter
|
|
| Power Input |
DC 24V/1A |
| Power Supply |
AC 100 - 240V 50/60Hz |
| Power Consumption |
12W (Max) |
Power Receiver
|
|
| Power Input - RX |
DC 24V/1A |
| Power Supply - RX |
AC 100 - 240V 50/60Hz |
| Power Consumption - RX |
12W (max) |
Environment
|
|
| Operating Temperature |
14 to 131°F / -10 to 55°C |
| Storage Temperature |
-4 to 185°F / -20 to 85°C |
| Relative Humidity |
5 to 90% |
Enclosure
|
|
| Product Dimensions (W × D × H) |
TX: 5.49 in × 2.63 in × 0.79 in (139.4mm × 66.8mm × 20mm), RX: 5.49 in × 2.63 in × 0.79 in (139.4mm × 66.8mm × 20mm)
|
| Weight |
TX: 1.19 lbs (540g), RX: 1.19 lbs (540g)
|
Warranty
|
|
| Parts |
3 year |
| Labor |
3 year |
